Inertia Fuel Shutoff Switch: Service and Repair

INERTIA FUEL SHUTOFF (IFS) SWITCH

REMOVAL
1. Disconnect the battery ground cable.
2. Open the luggage compartment door.

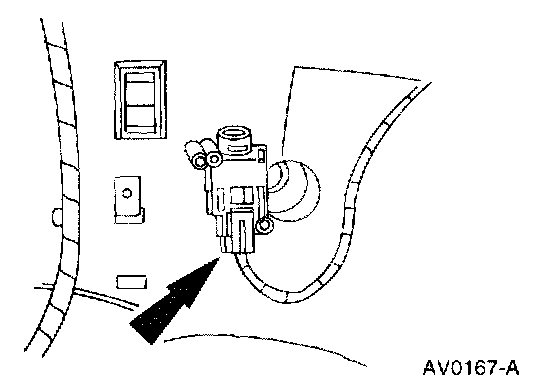

3. Disconnect the connector from the inertia fuel shutoff switch.

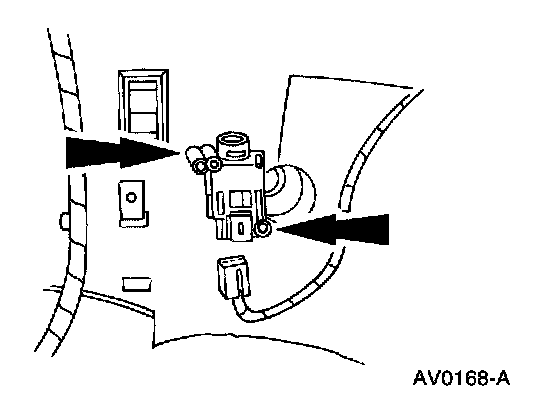

4. Remove the retaining screws from the inertia fuel shutoff switch.

INSTALLATION

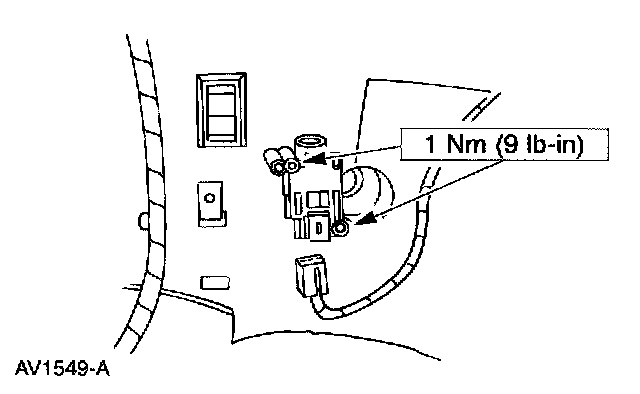

1. To install, reverse the removal procedure.
