Removal and Installation
SAFETY BELT SHOULDER HEIGHT ADJUSTERREMOVAL
1. Remove the upper B-pillar cover.

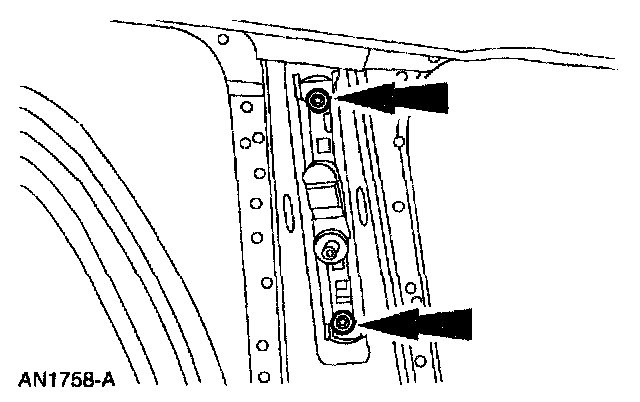

2. Remove the height adjuster.

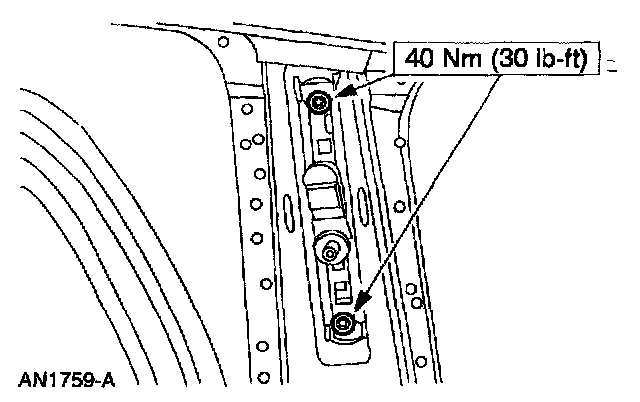

INSTALLATION
1. To install, reverse the removal procedure.
- Check the active restraint system for correct operation.
