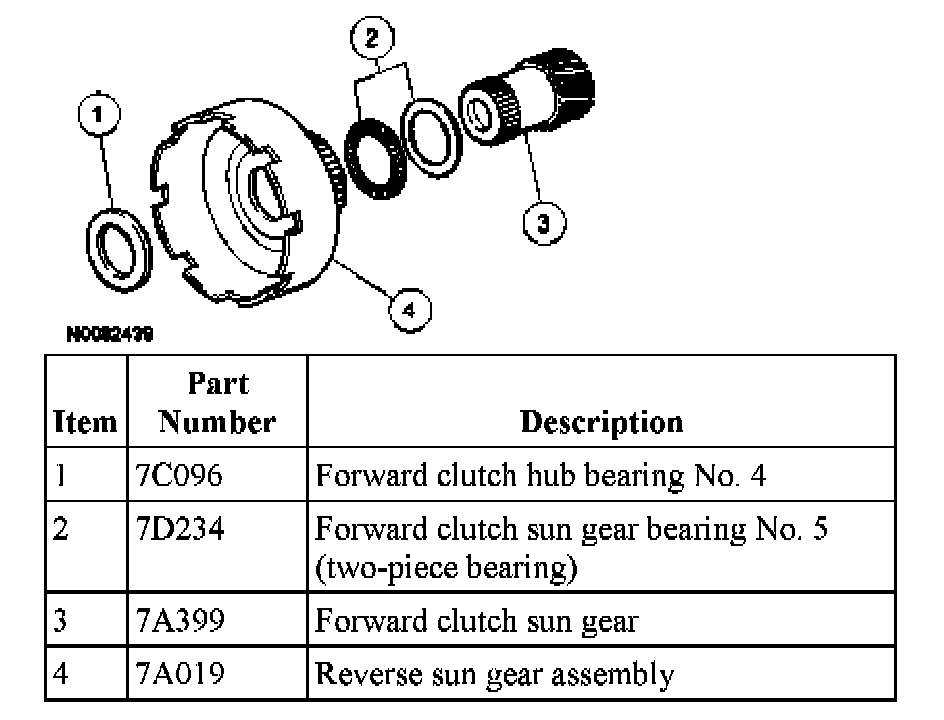

Reverse Sun Gear



Reverse Sun Gear

Disassembly

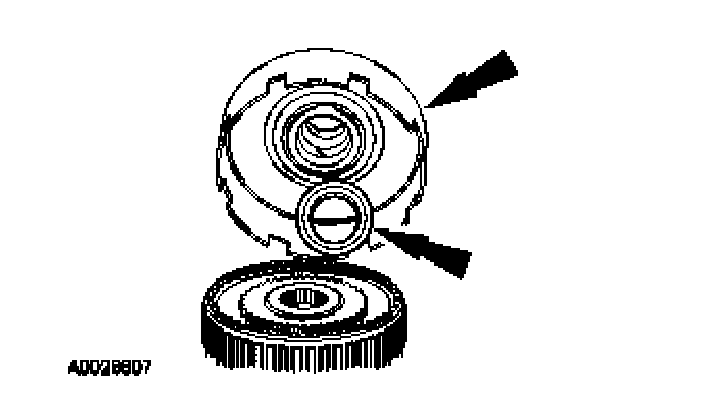

1.Remove the reverse clutch sun gear assembly and the No.4 forward clutch hub bearing and race.

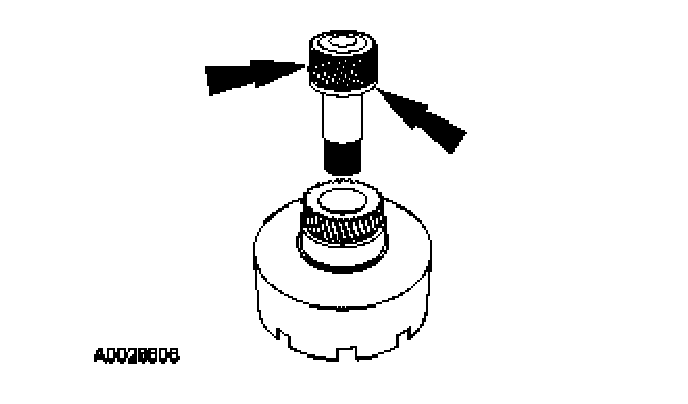

2.Remove the forward clutch sun gear assembly and the No.5 forward clutch sun gear bearing and race.






Assembly

1.The forward clutch sun gear and reverse sun gear assembly are assembled as part of the transmission assembly procedure.
