Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Crown Victoria V8-4.6L CNG SOHC VIN 9
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - External Controls
>>
Test D
Test D
PINPOINT TEST D: THE TRANSMISSION CONTROL SWITCH (TCS) DOES NOT OPERATE CORRECTLY

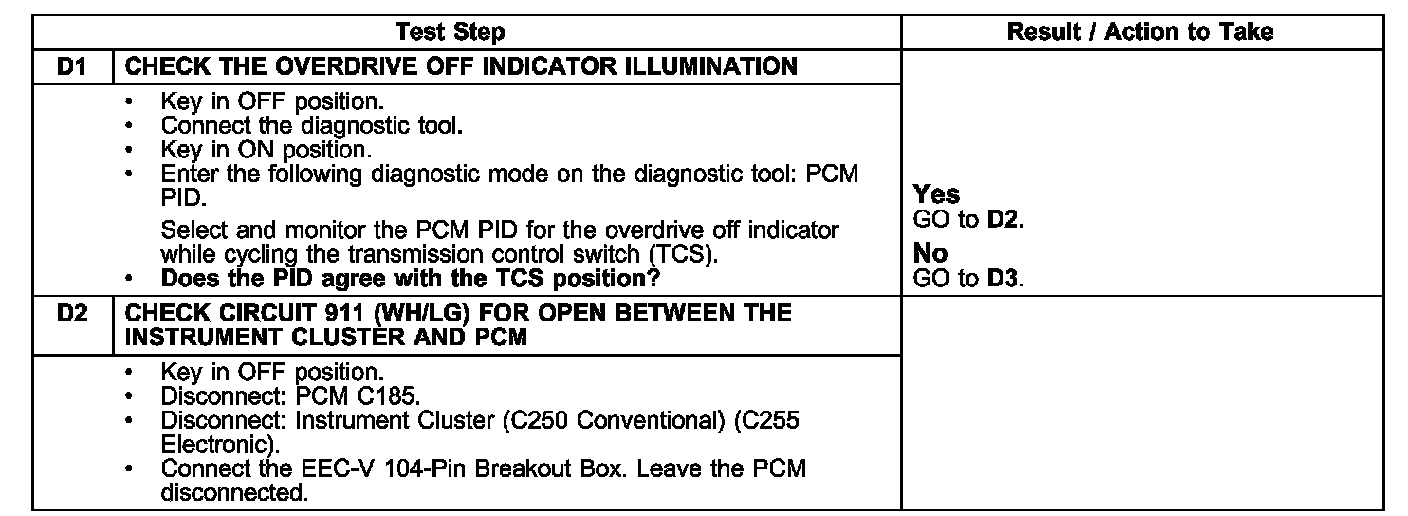

Tests D1-D2 (continues):

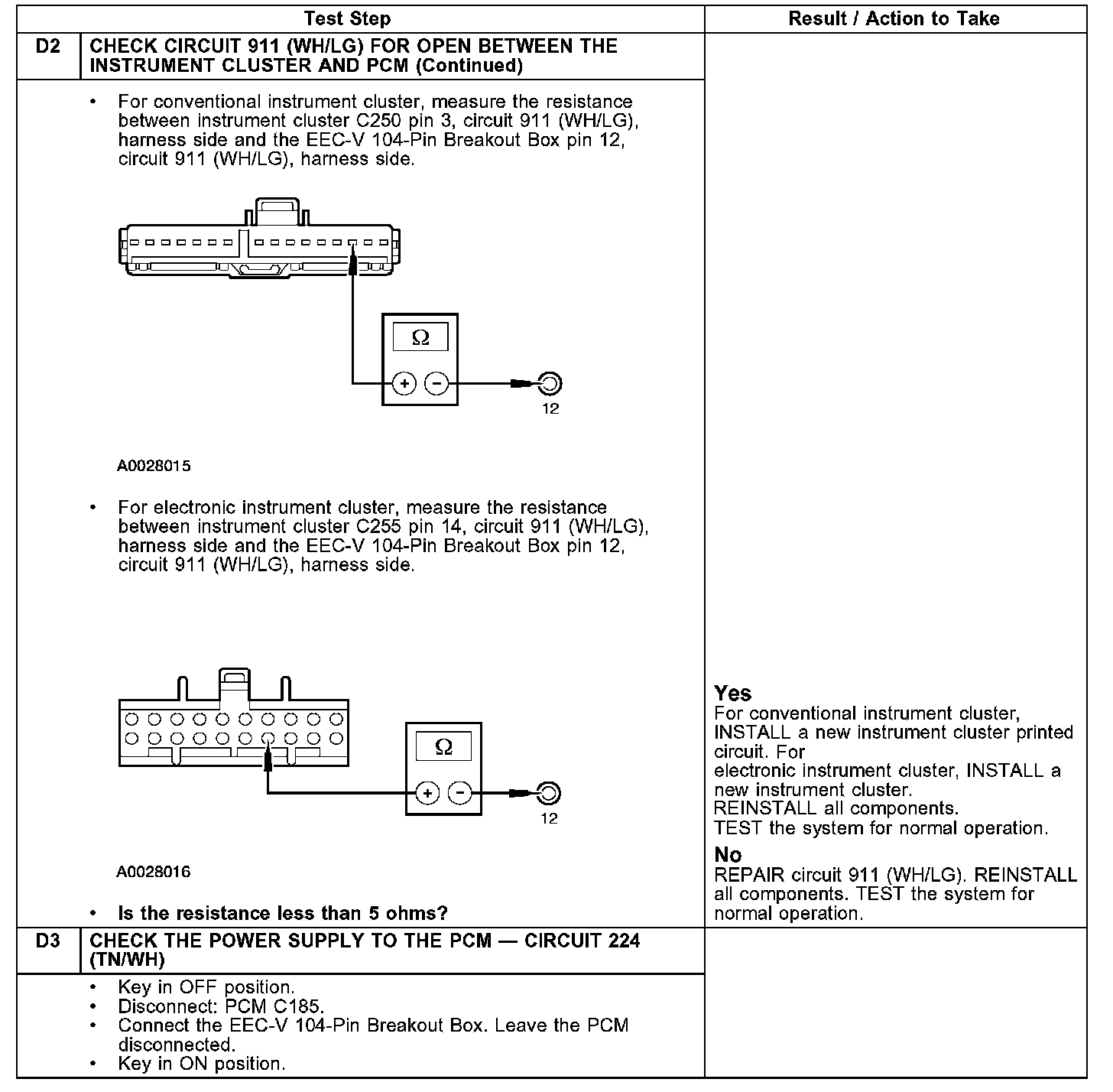

Tests D2-D3 (continues):

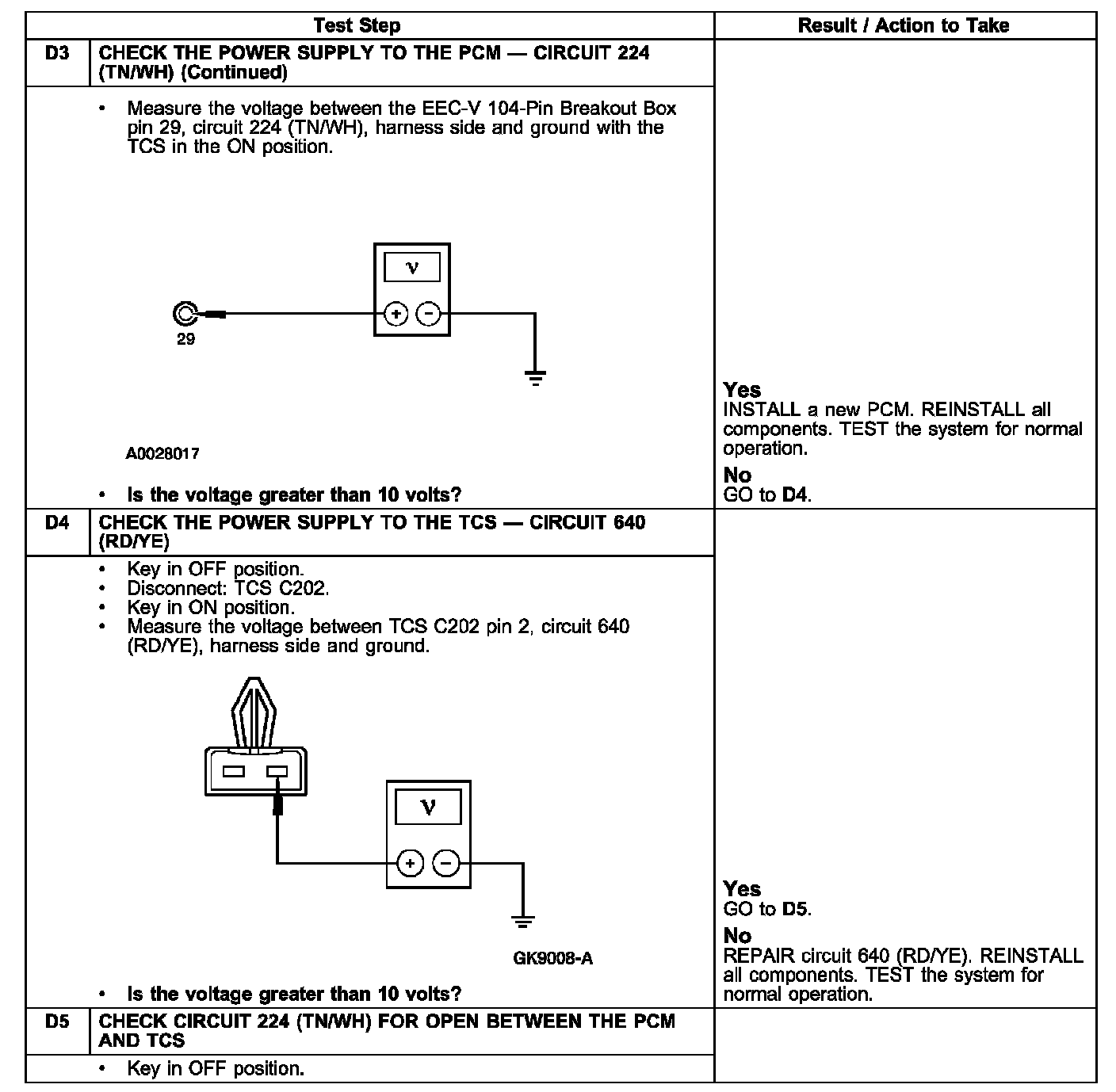

Tests D3-D5 (continues):

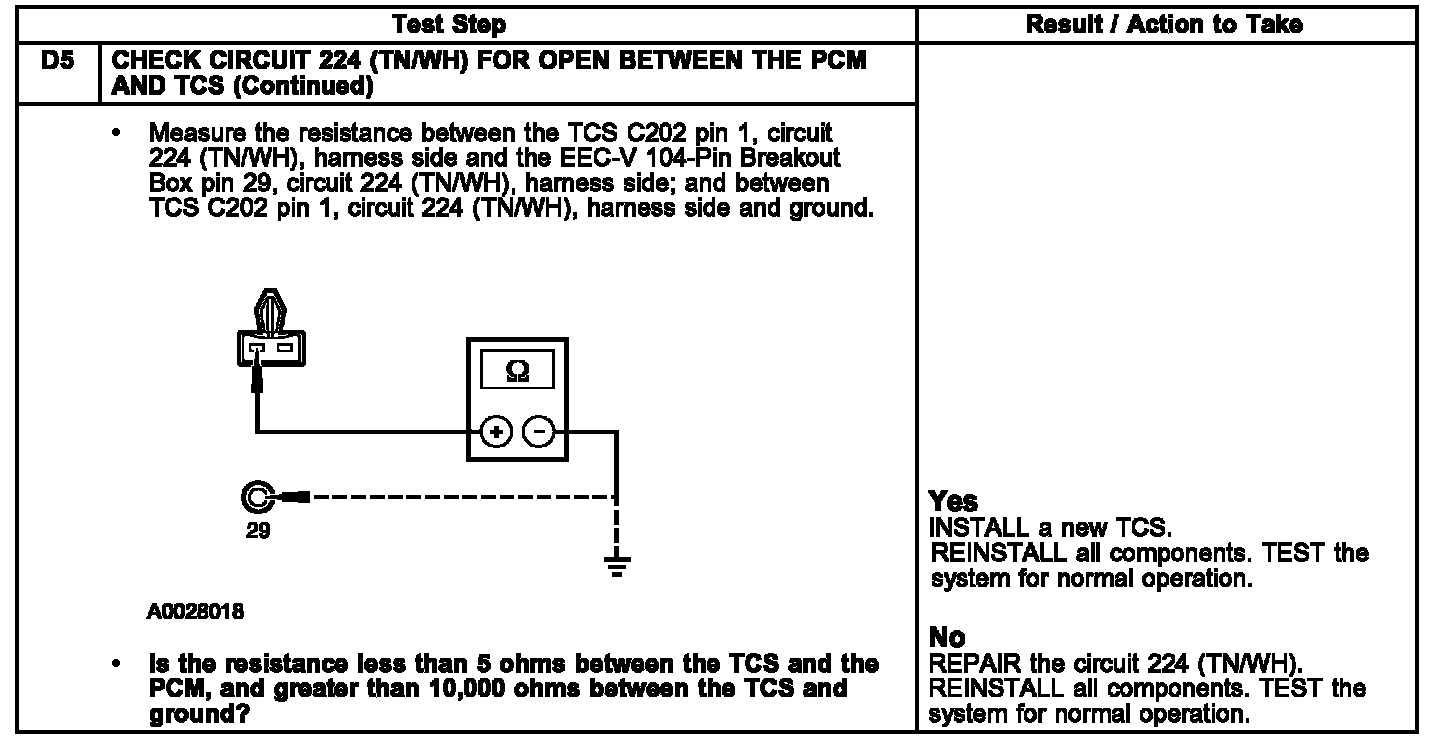

Test D5:
