PINPOINT TEST I: THE TRANSMISSION CONTROL SWITCH (TCS) DOES NOT OPERATE CORRECTLY-FLOOR SHIFT

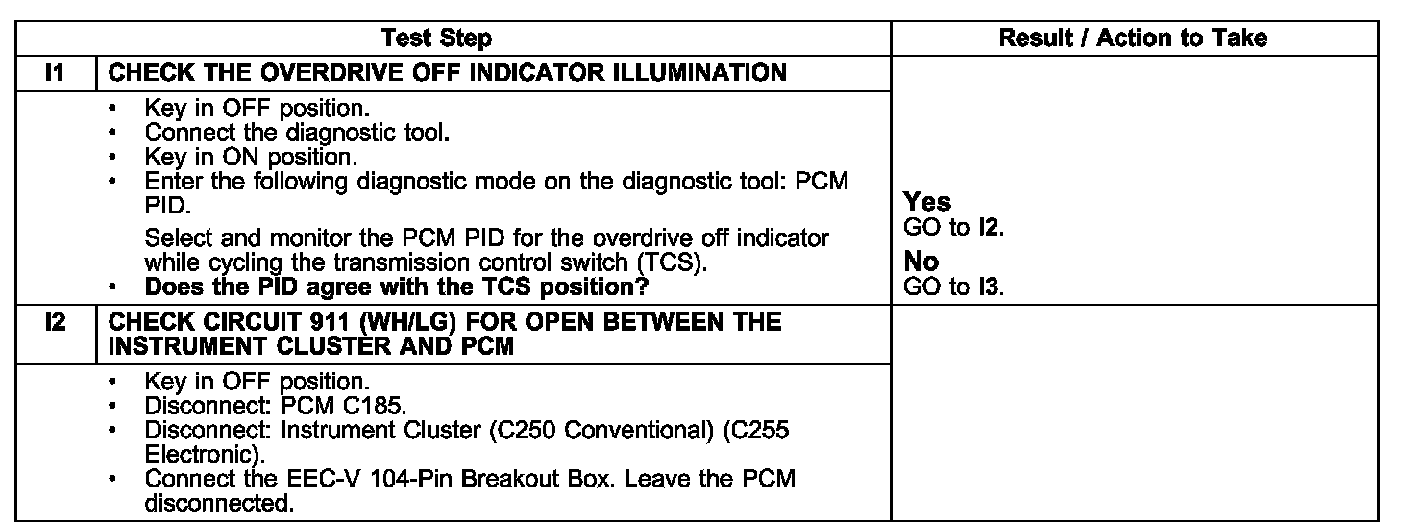

Tests I1-I2 (continues):

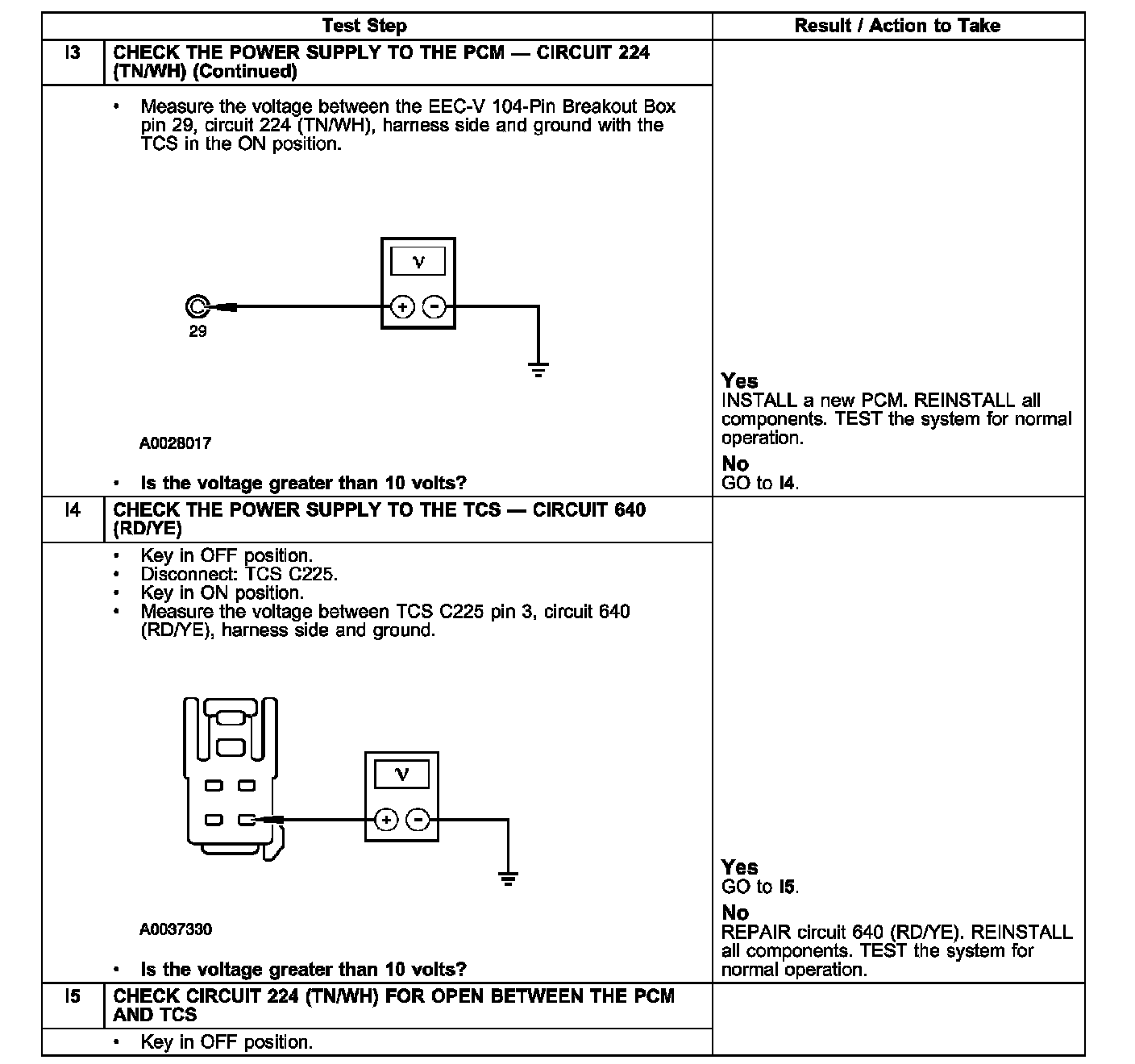

Tests I2-I3 (continues):
Tests I3-I5 (continues):

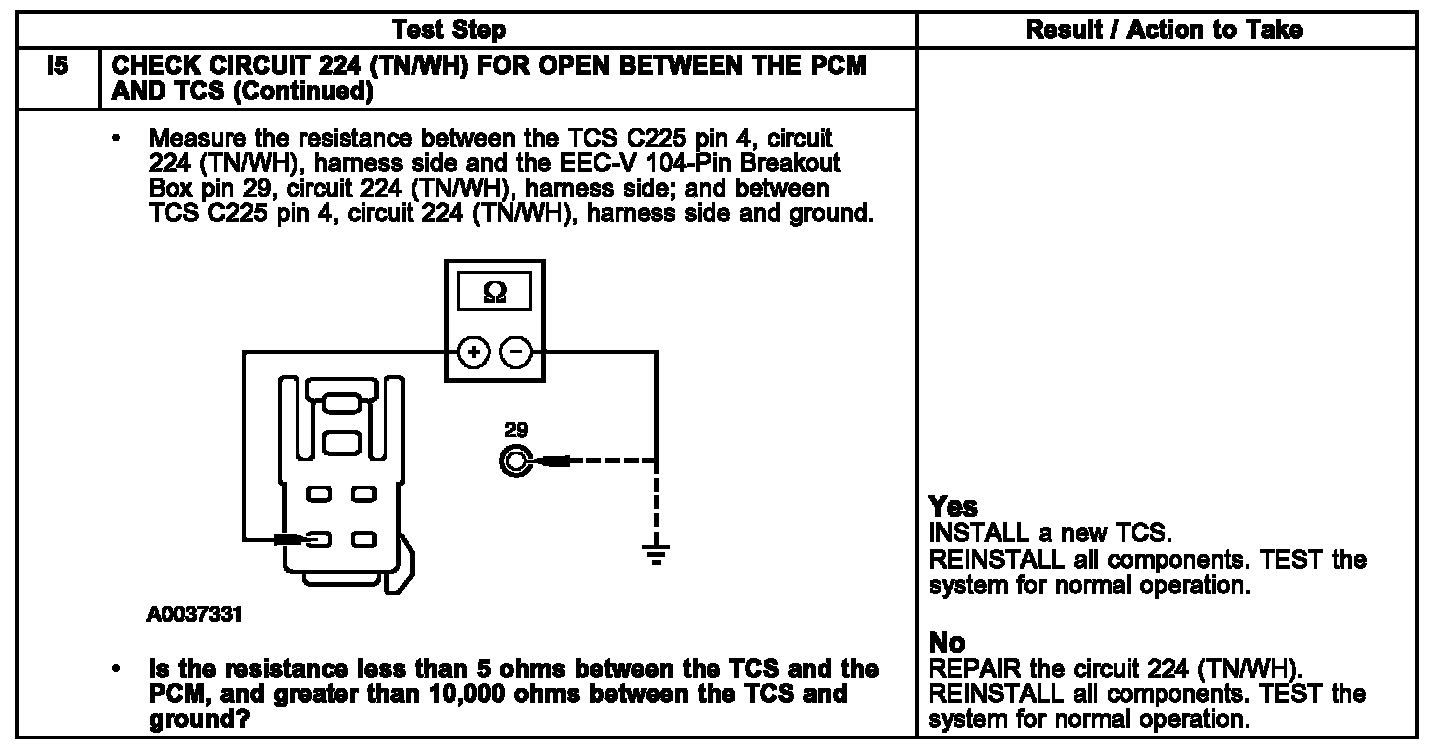

Test I5:
