Isolator Module to FM Antenna Cable

CABLE - ISOLATOR MODULE TO FM ANTENNA

REMOVAL
1. Remove the rear package tray trim.
2. Remove the RH roof side rear trim panel.
3. Position sound insulator aside.

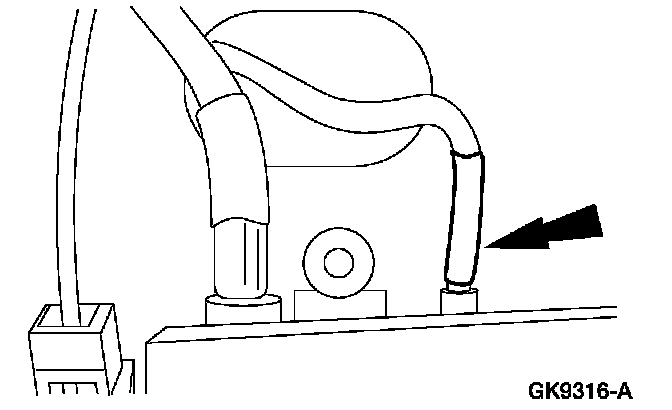

4. Disconnect the antenna cable.

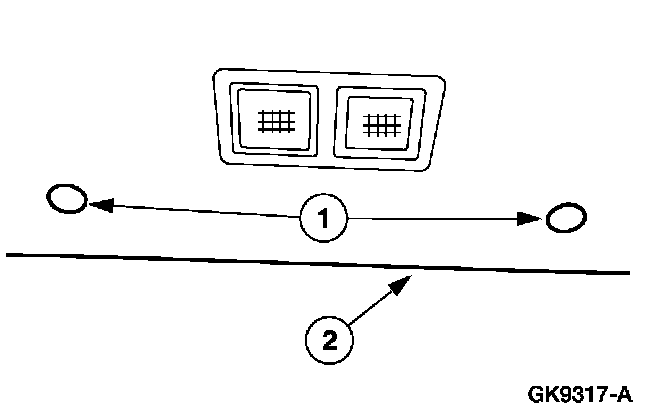

5. Position the headliner aside.
1 Remove the pin-type retainers.
2 Position the headliner aside.

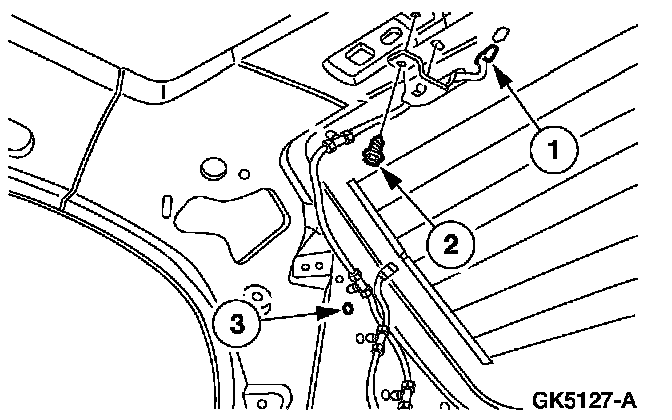

6. Remove the antenna lead-in cable.
1 Disconnect the connector.
2 Remove the bolt.
3 Disconnect the cable retainers and remove the antenna lead-in cable.

INSTALLATION
1. To install, reverse the removal procedure.
