Test E

PINPOINT TEST E: PATS TRANSCEIVER MODULE SIGNAL IS NOT RECEIVED

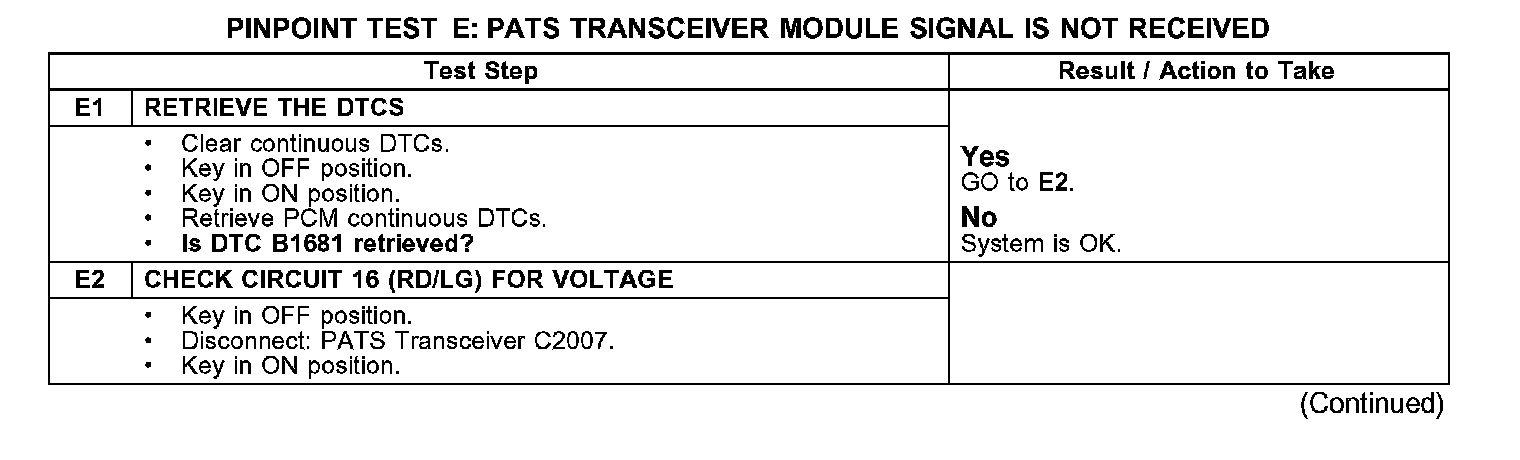

Test E1-E2:

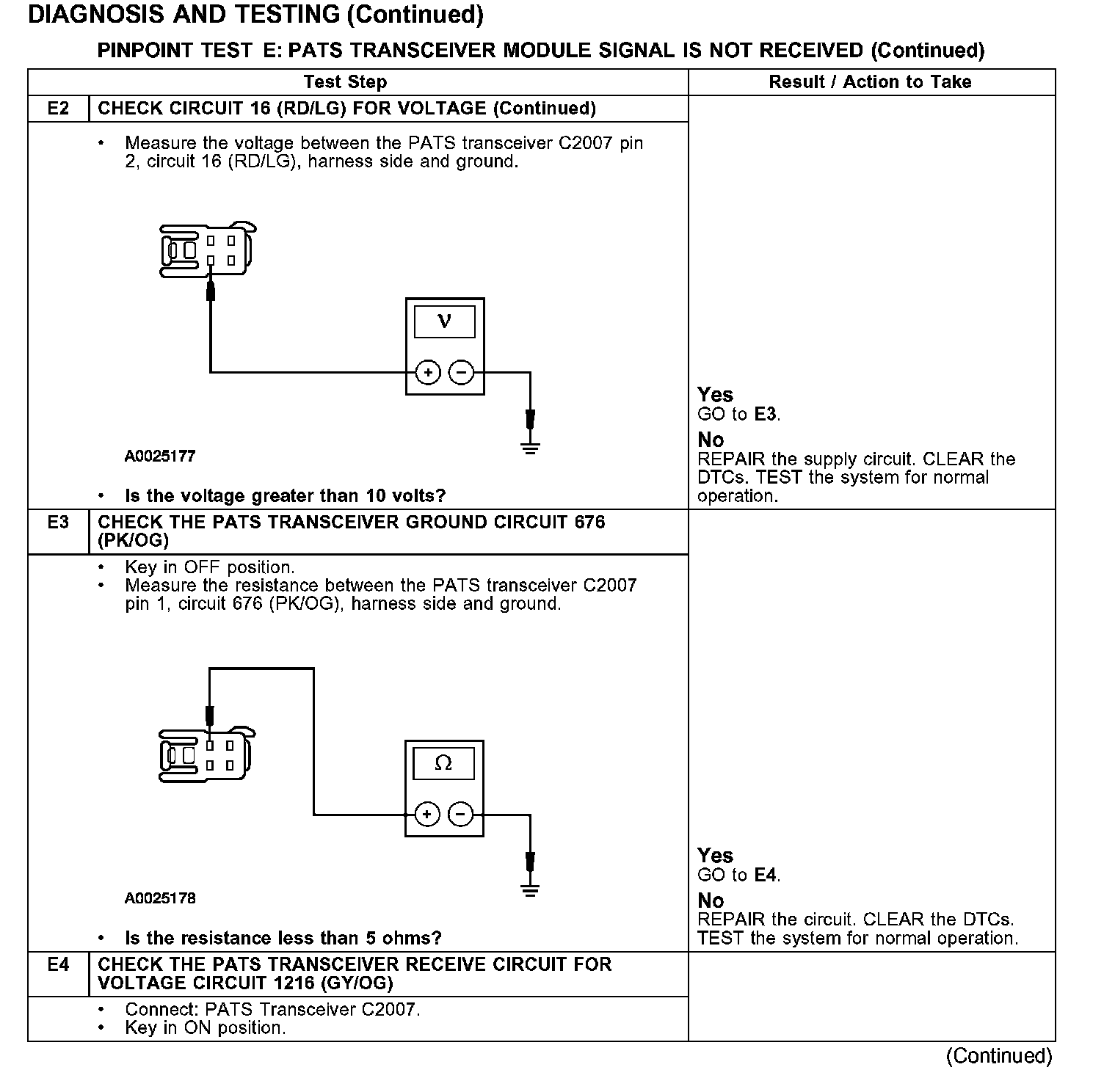

Test E2-E4:

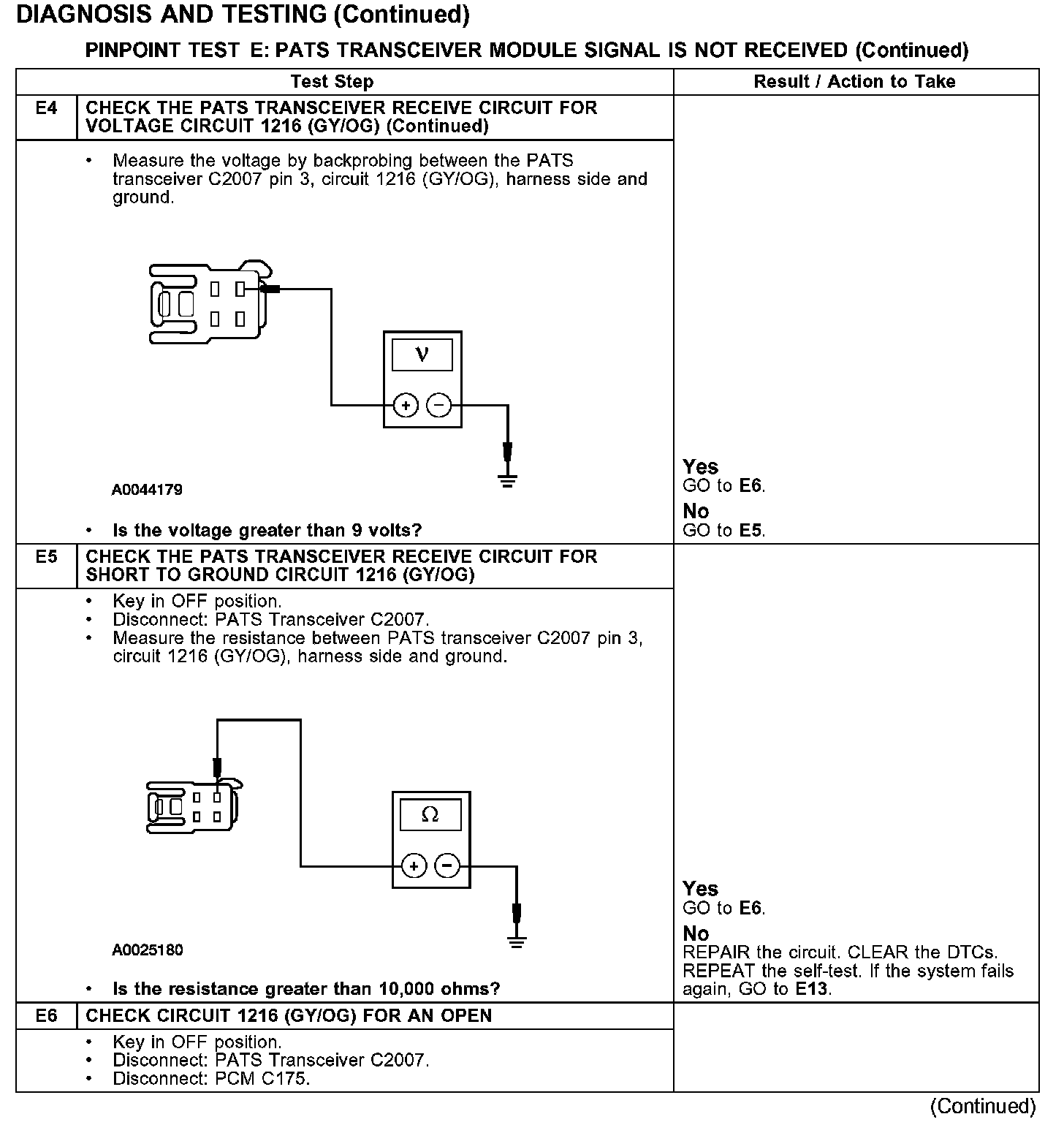

Test E4-E6:

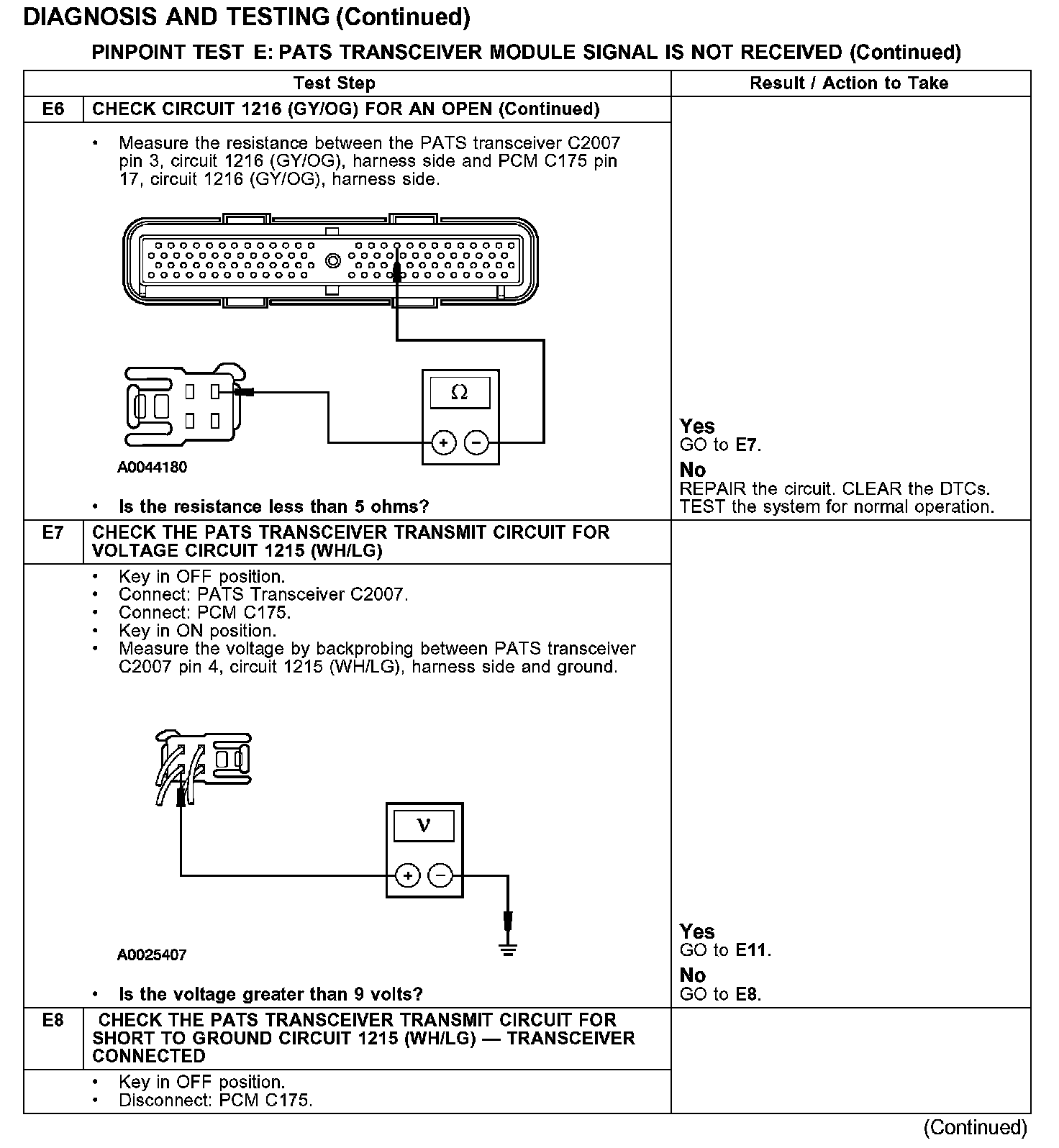

Test E6-E8:

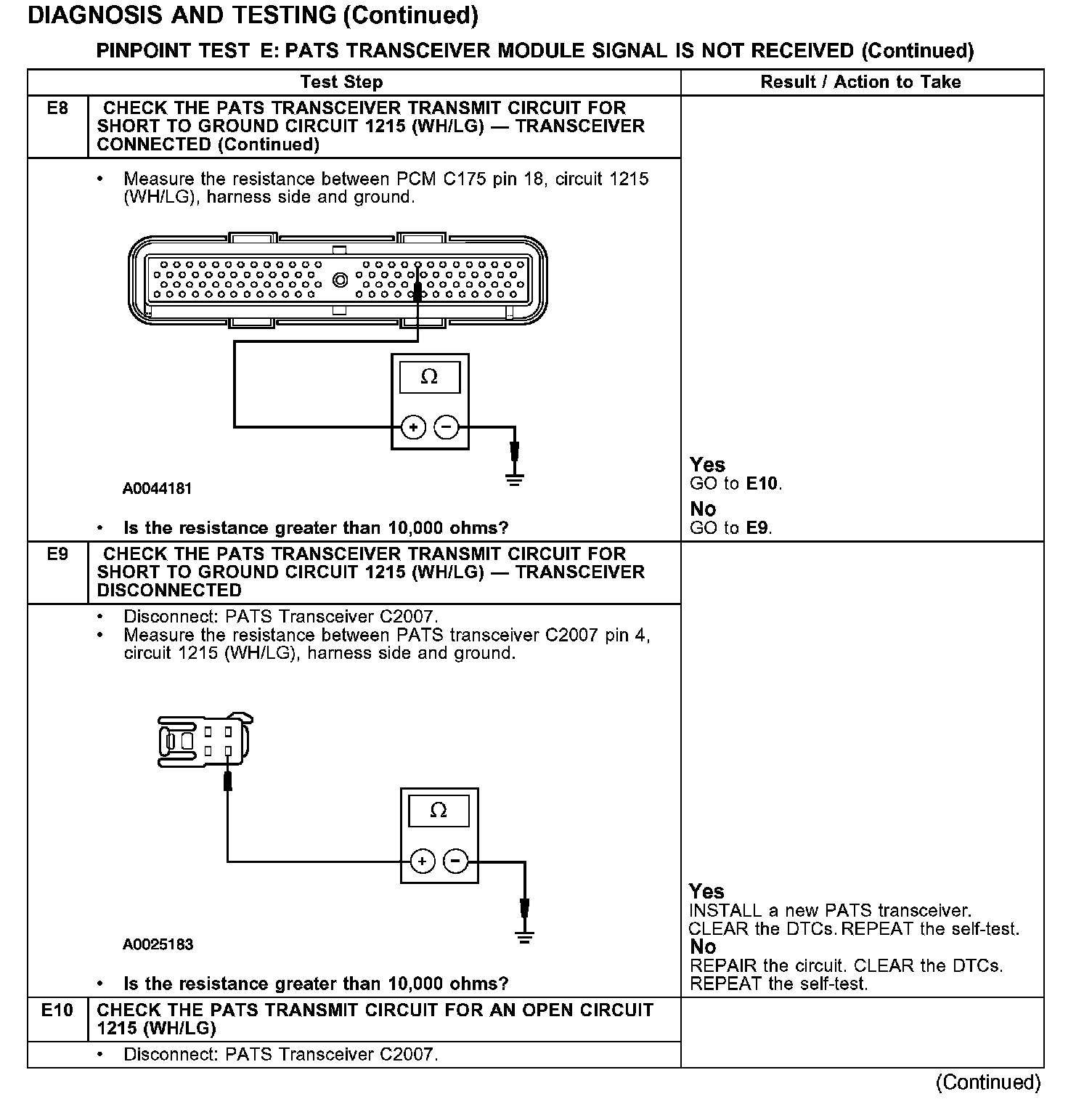

Test E8-E10:

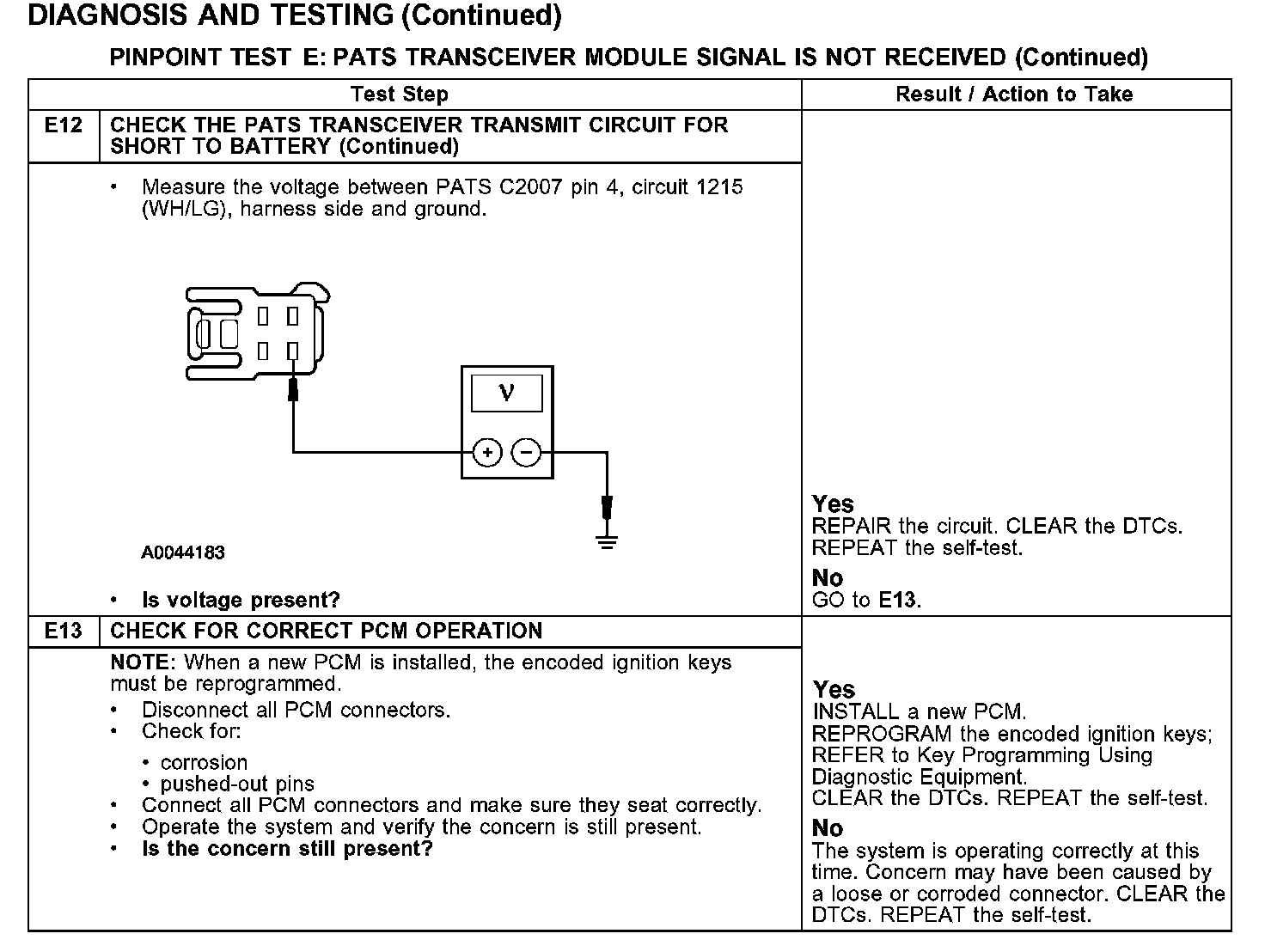

Test E10-E12:






Test E12-E13:
