Police / Special Vehicle Options: Service and Repair

FLASHING REAR DECK LIGHTS

REMOVAL

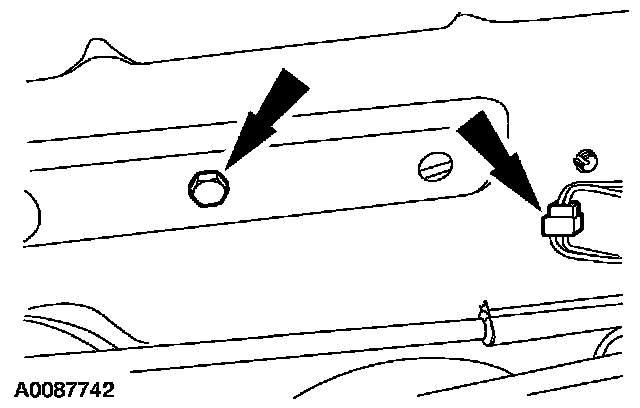

1. Remove the two bolts.
- Disconnect the electrical connector.

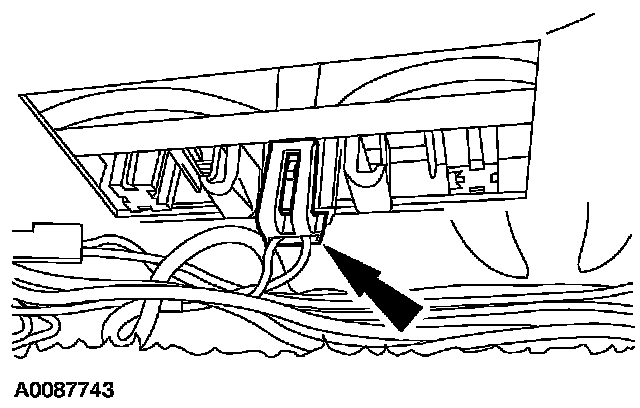

2. Disconnect the high mounted stoplamp connector.

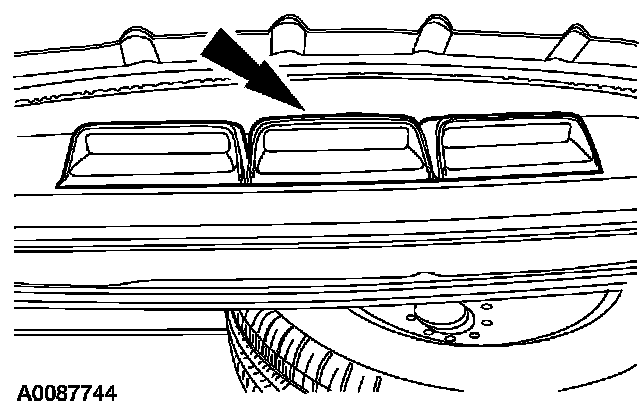

3. Remove the flashing rear deck light assembly.

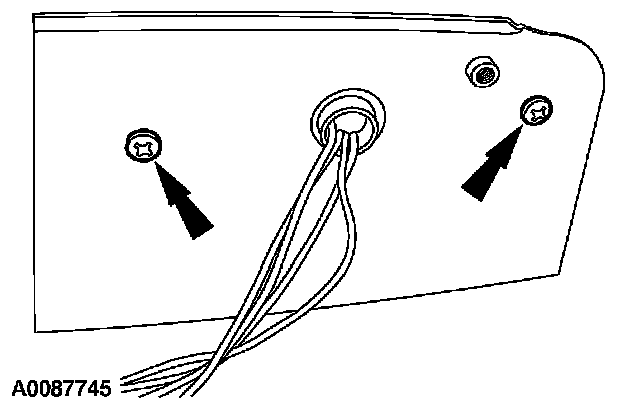

4. Remove the screws and the flashing rear deck light.
- Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
