Front Bumper Bracket: Service and Repair

BUMPER BRACKET - FRONT

Removal and Installation
1. Remove the front bumper.

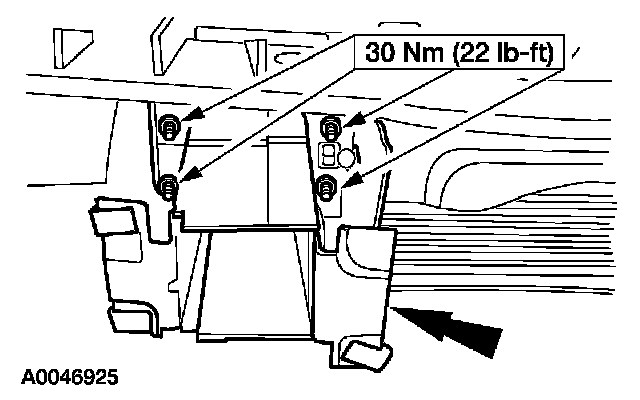

2. NOTE: RH shown, LH similar.

Remove the nuts and remove the front bumper bracket.

3. To install, reverse the removal procedure.
