Rear Bumper Bracket: Service and Repair

BUMPER BRACKET - REAR

Removal and Installation
1. Remove the rear bumper.

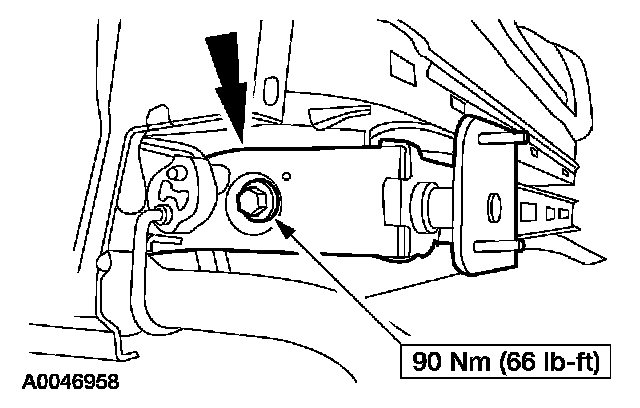

2. NOTE: LH shown, RH similar.

Remove the bolt and the rear bumper bracket.

3. To install, reverse the removal procedure.
