Rear Bumper Cover / Fascia: Service and Repair

REAR BUMPER COVER

Removal and Installation
1. Raise and support the vehicle.







2. Remove the rear bumper cover screws.

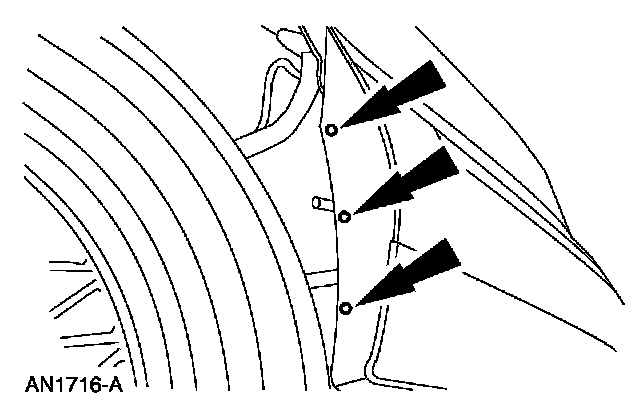

3. Remove the six pin-type retainers (three each side).

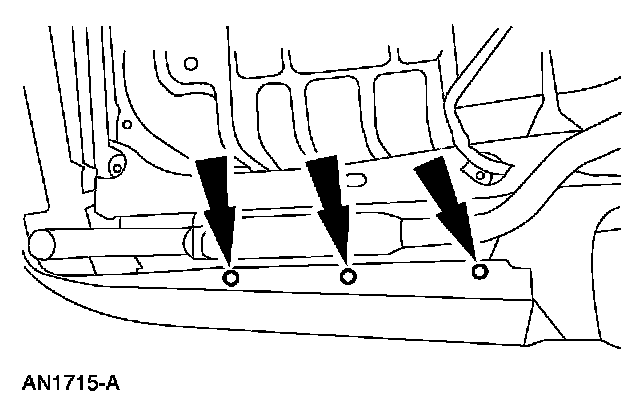

4. Remove the six rear bumper cover screws (three each side).
5. Lower the vehicle.

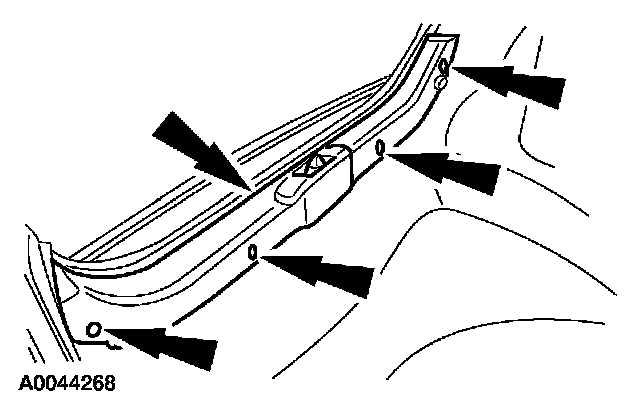

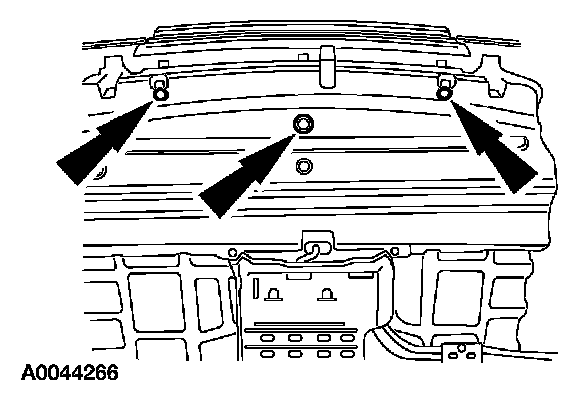

6. Remove the pin-type retainers and the luggage compartment rear trim panel.
7. Position the luggage compartment lining material aside.

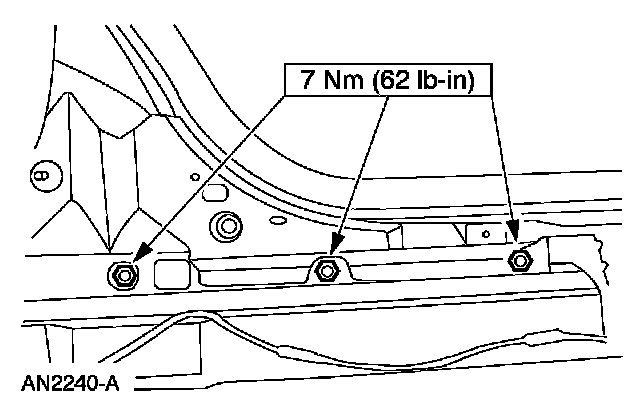

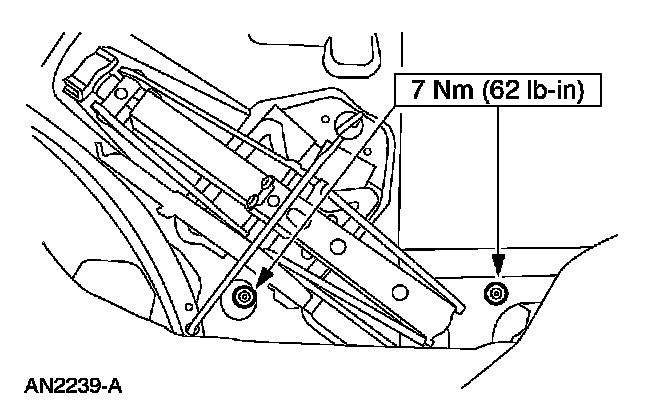

8. Remove the four rear bumper cover nuts (two each side).







9. Remove the six nuts (three each side) and the rear bumper cover.
10. To install, reverse the removal procedure.
