Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

REMOVAL
1. Remove the exterior rear view mirror.

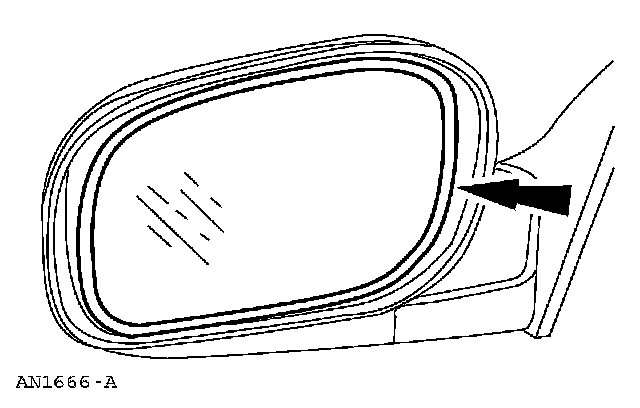

2. Push in the upper edge of the exterior rear view mirror glass to the maximum travel and gently pull outward until the exterior rear view mirror glass is released.
- Disconnect the mirror glass electrical connector.

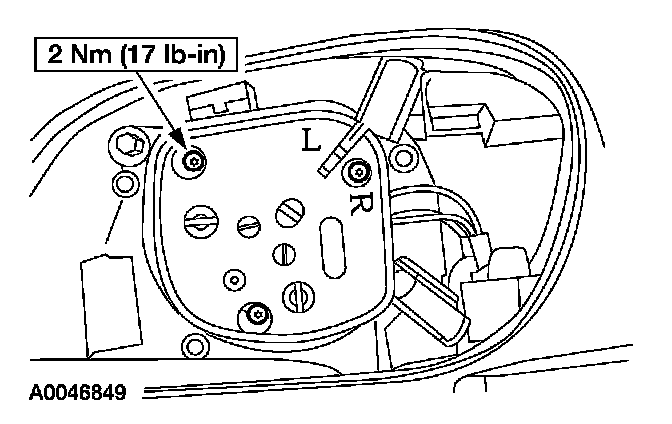

3. Remove the exterior rear view mirror motor screws.

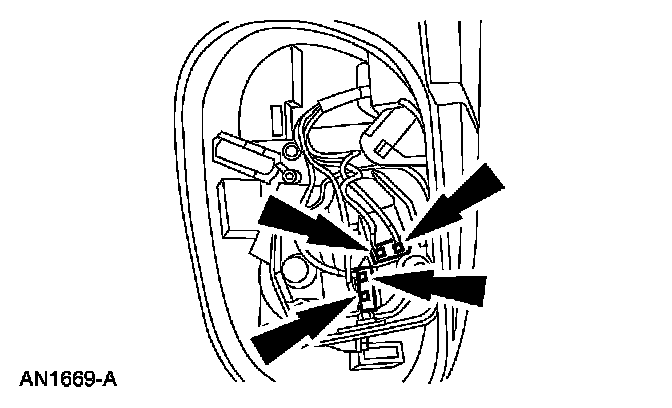

4. NOTE: Note the colors and locations of the connectors prior to removal.

Remove the motor.

INSTALLATION
1. To install, reverse the removal procedure.
