Exterior Mirror

EXTERIOR MIRROR

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the front door trim panel.

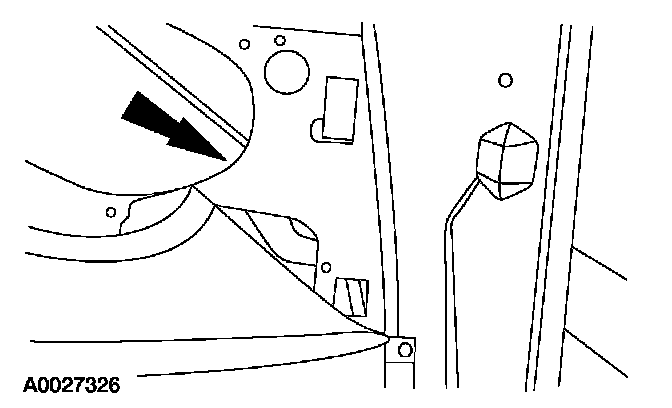

3. Position the water shield aside.

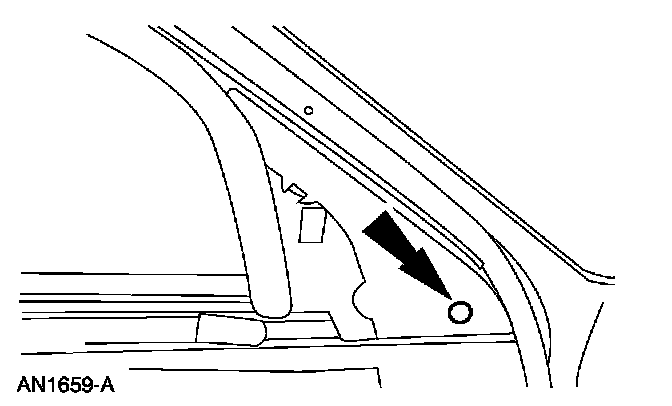

4. Remove the pin-type retainer.







5. Through the door opening, disconnect the power exterior rear view mirror electrical connector.

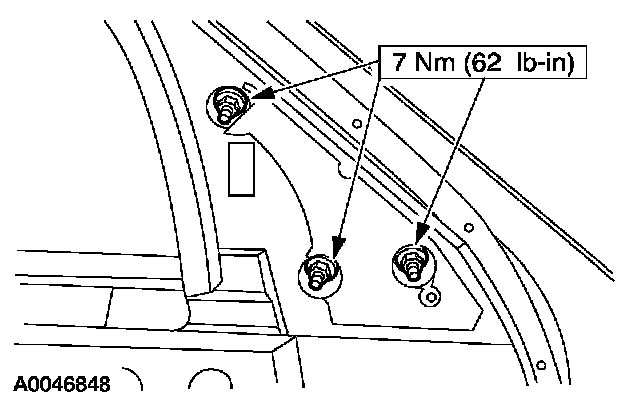

6. Remove the nuts and the exterior rear view mirror.

INSTALLATION
1. To install, reverse the removal procedure.
