Sunroof / Moonroof Motor: Service and Repair

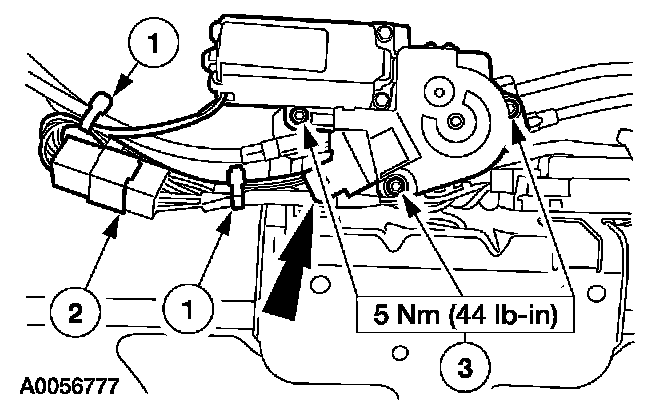

ROOF OPENING PANEL MOTORREMOVAL AND INSTALLATION
1. Remove the headliner.
2. Remove the roof opening panel motor.
1 Remove the wire retainers.
2 Disconnect the electrical connector.
3 Remove the screws
REMOVAL AND INSTALLATION
1. Remove the headliner.
2. Remove the roof opening panel motor.
1 Remove the wire retainers.
2 Disconnect the electrical connector.
3 Remove the screws
