Test H

PINPOINT TEST H: THE DRIVER HEATED SEAT IS INOPERATIVE

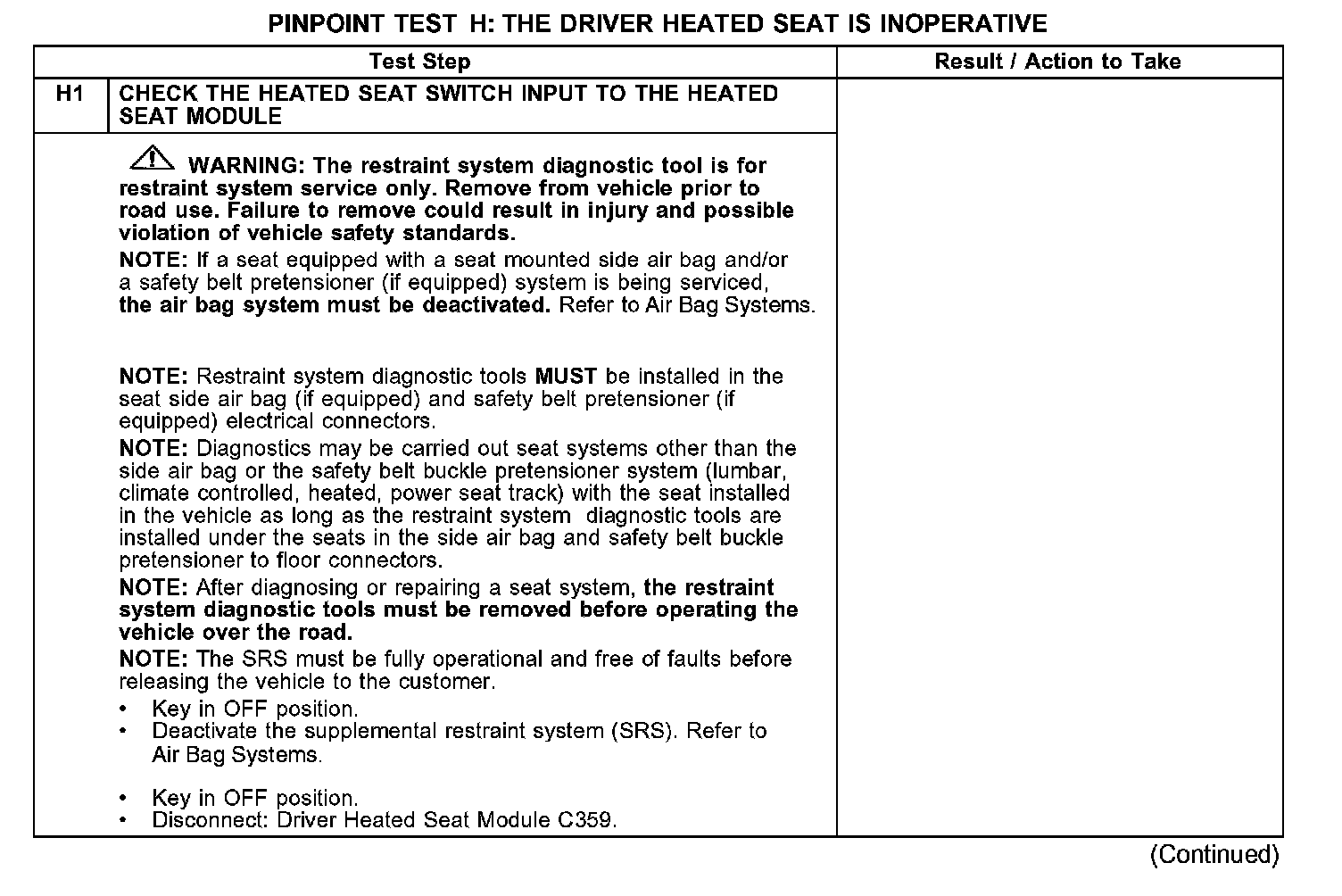

Test H1:

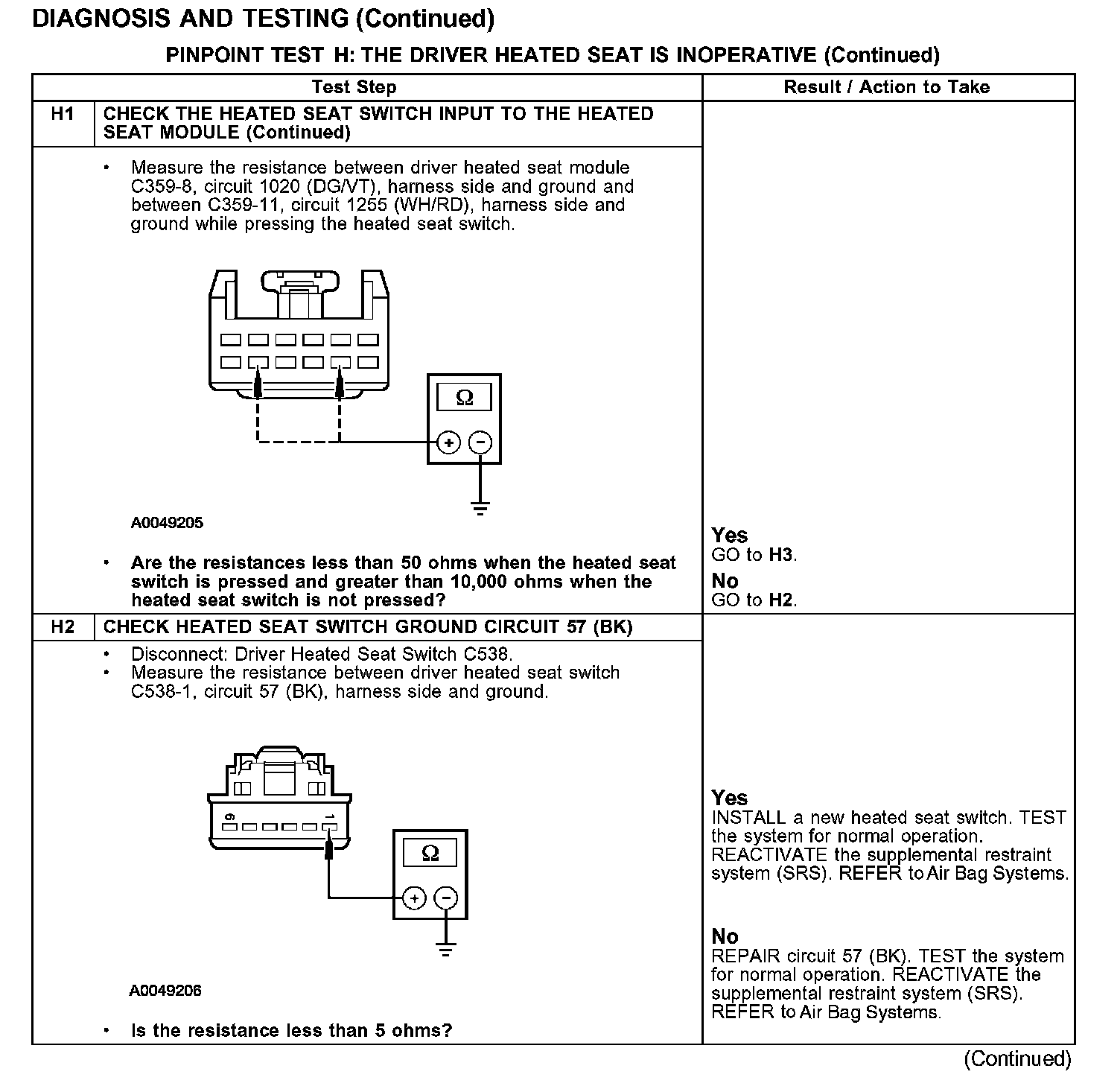

Test H1-H2:

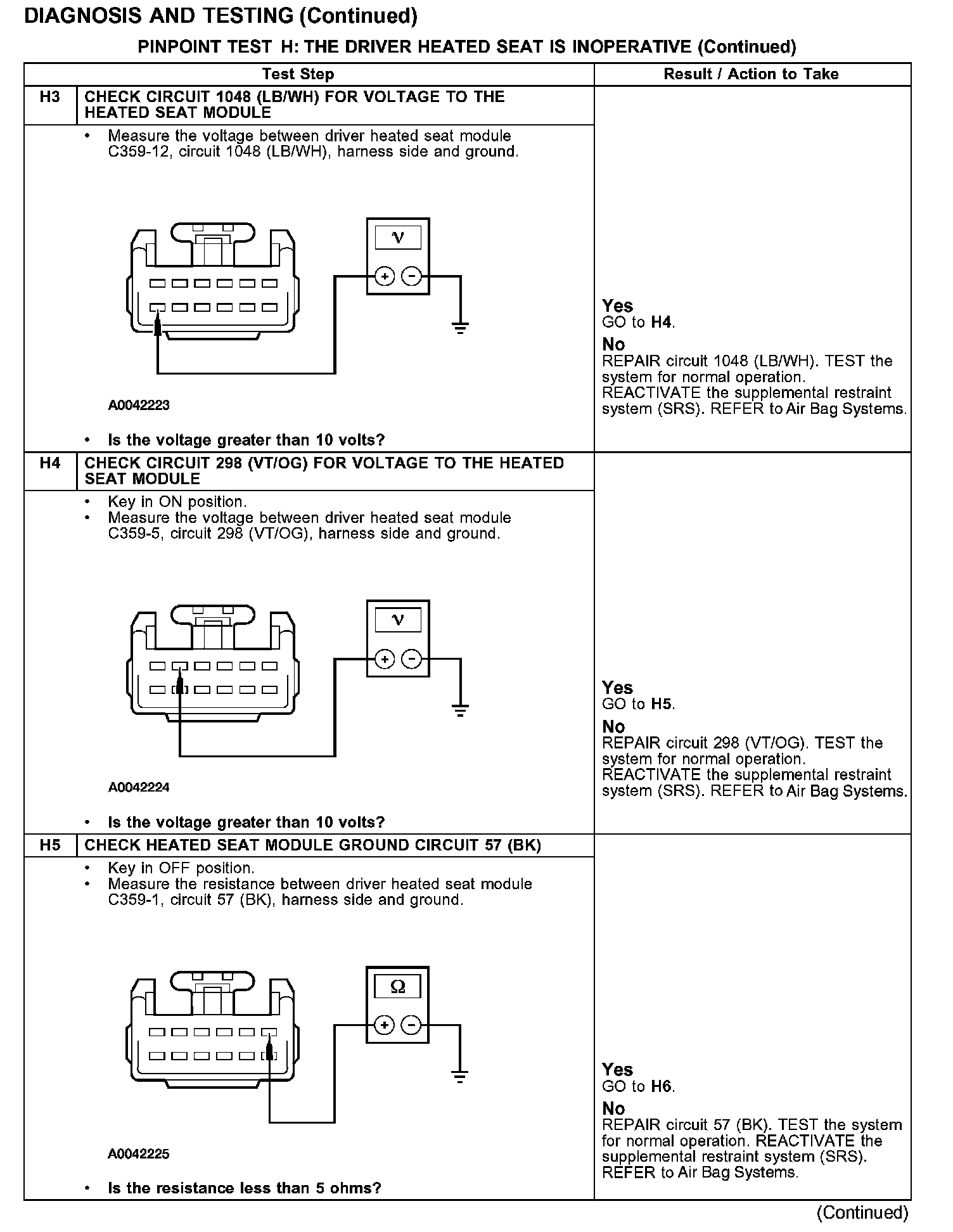

Test H3-H5:

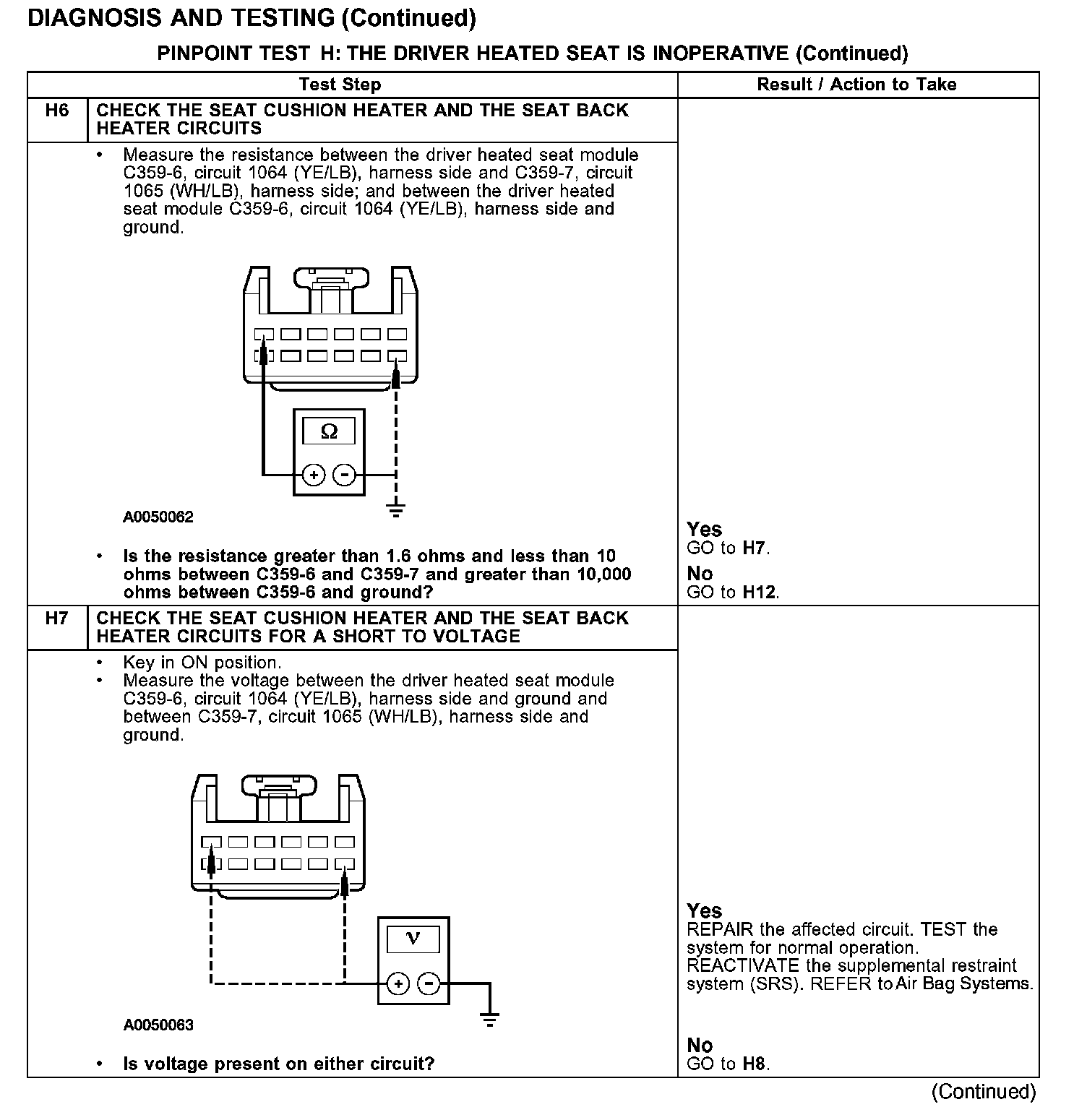

Test H6-H7:

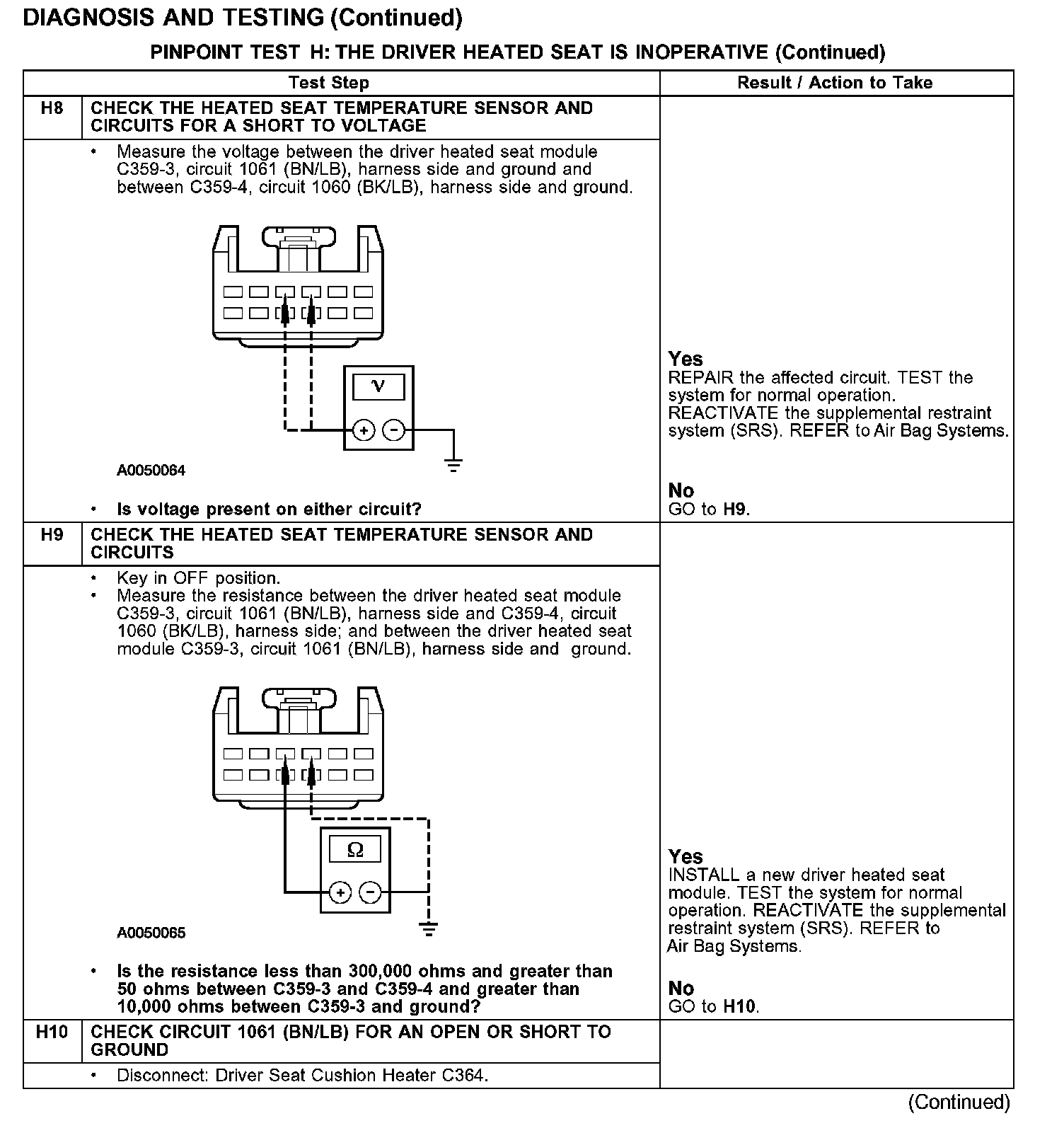

Test H8-H10:

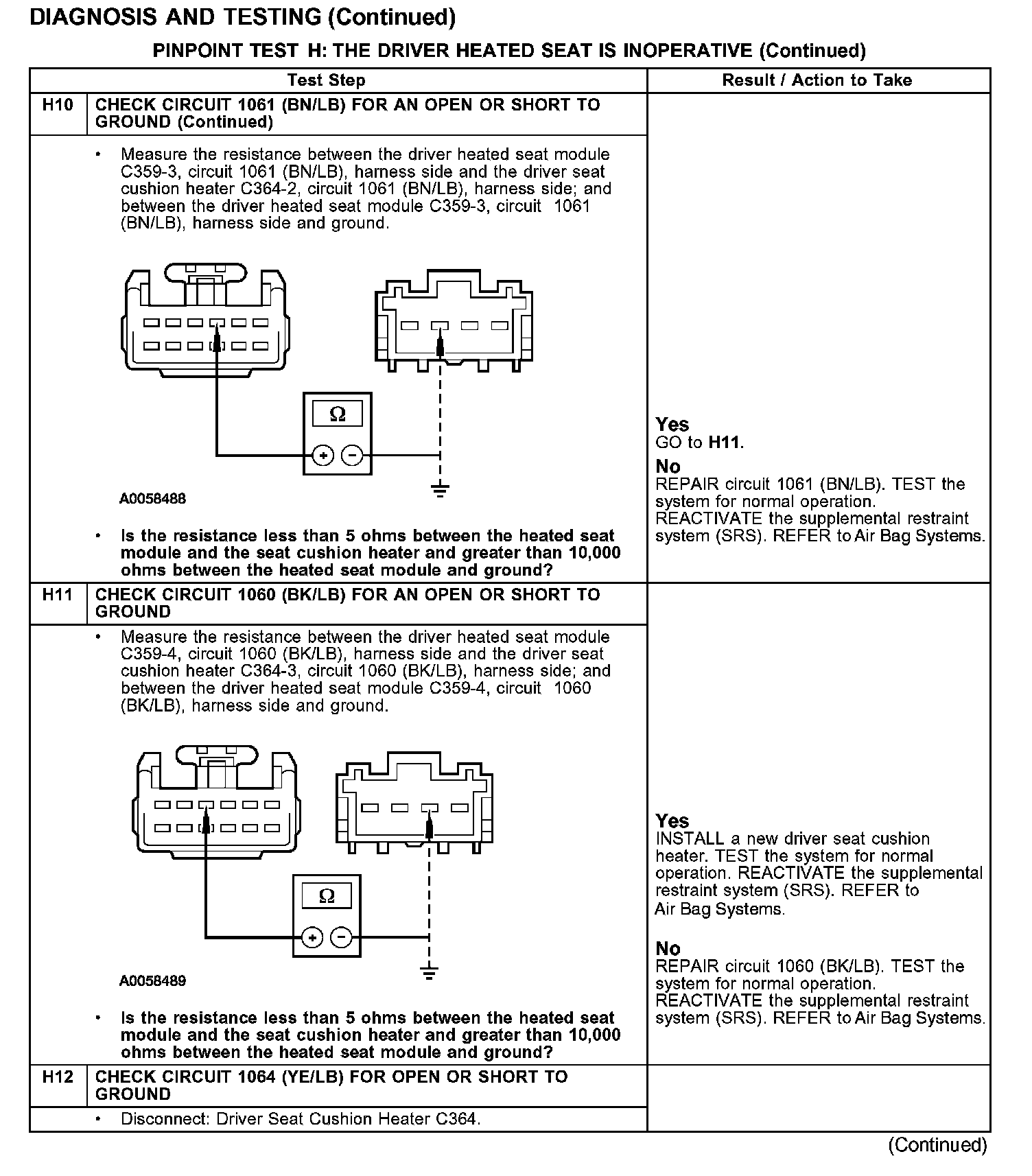

Test H10-H12:

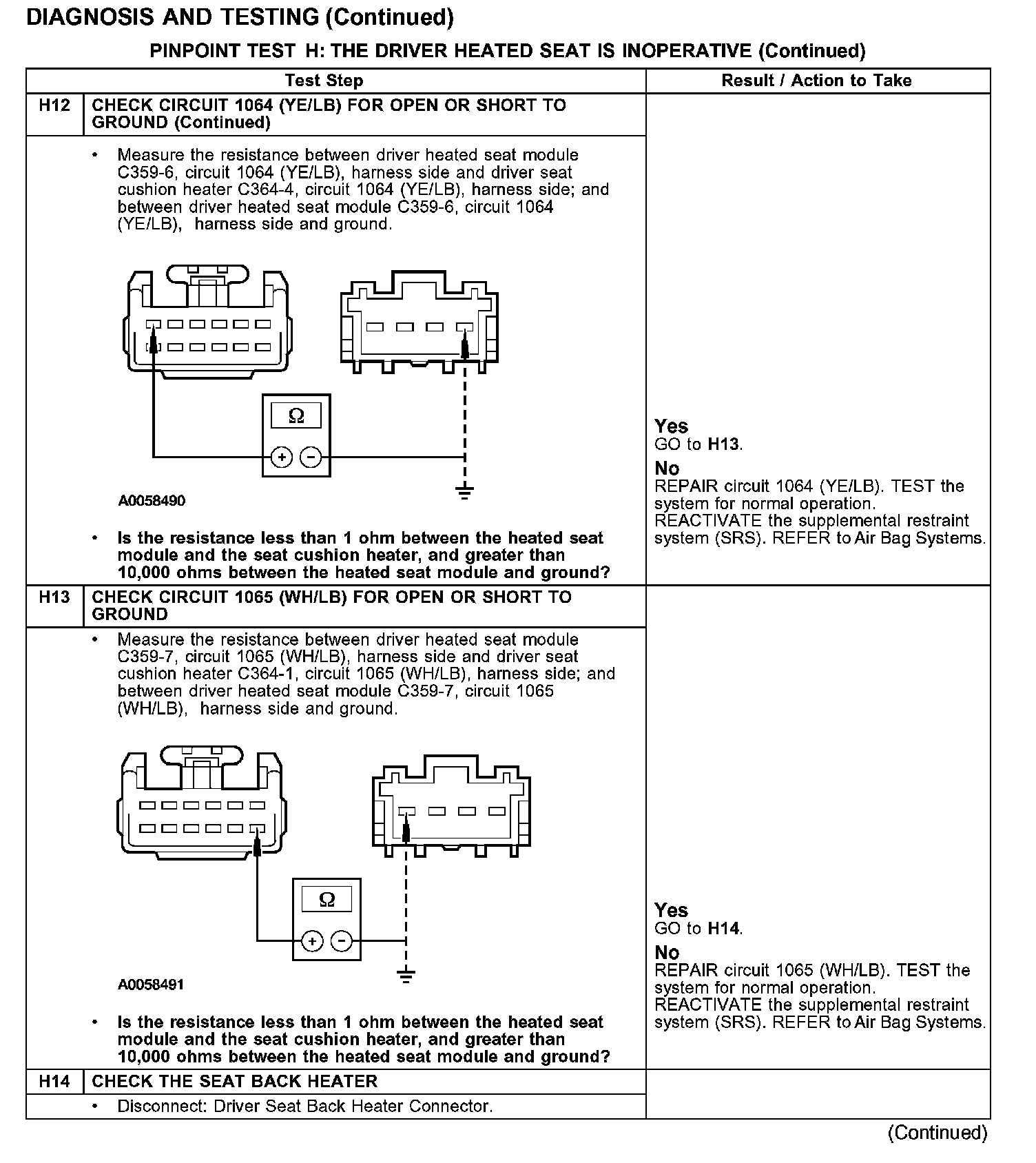

Test H12-H14:

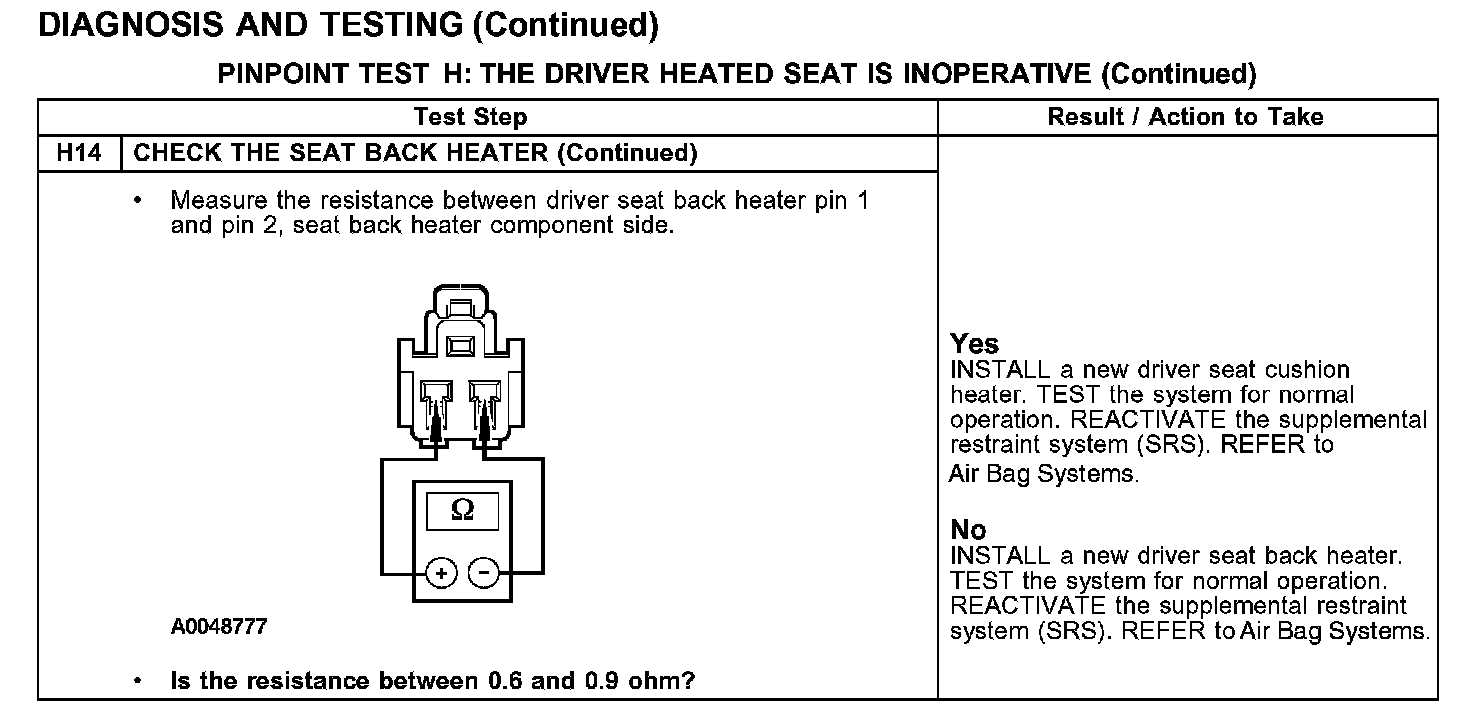

Test H14 Continued:
