Diesel Data: Automotive Repair
Home >> Ford >> 2004 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test L

Test L

PINPOINT TEST L: THE PASSENGER HEATED SEAT IS INOPERATIVE - DOES NOT OPERATE IN HIGH

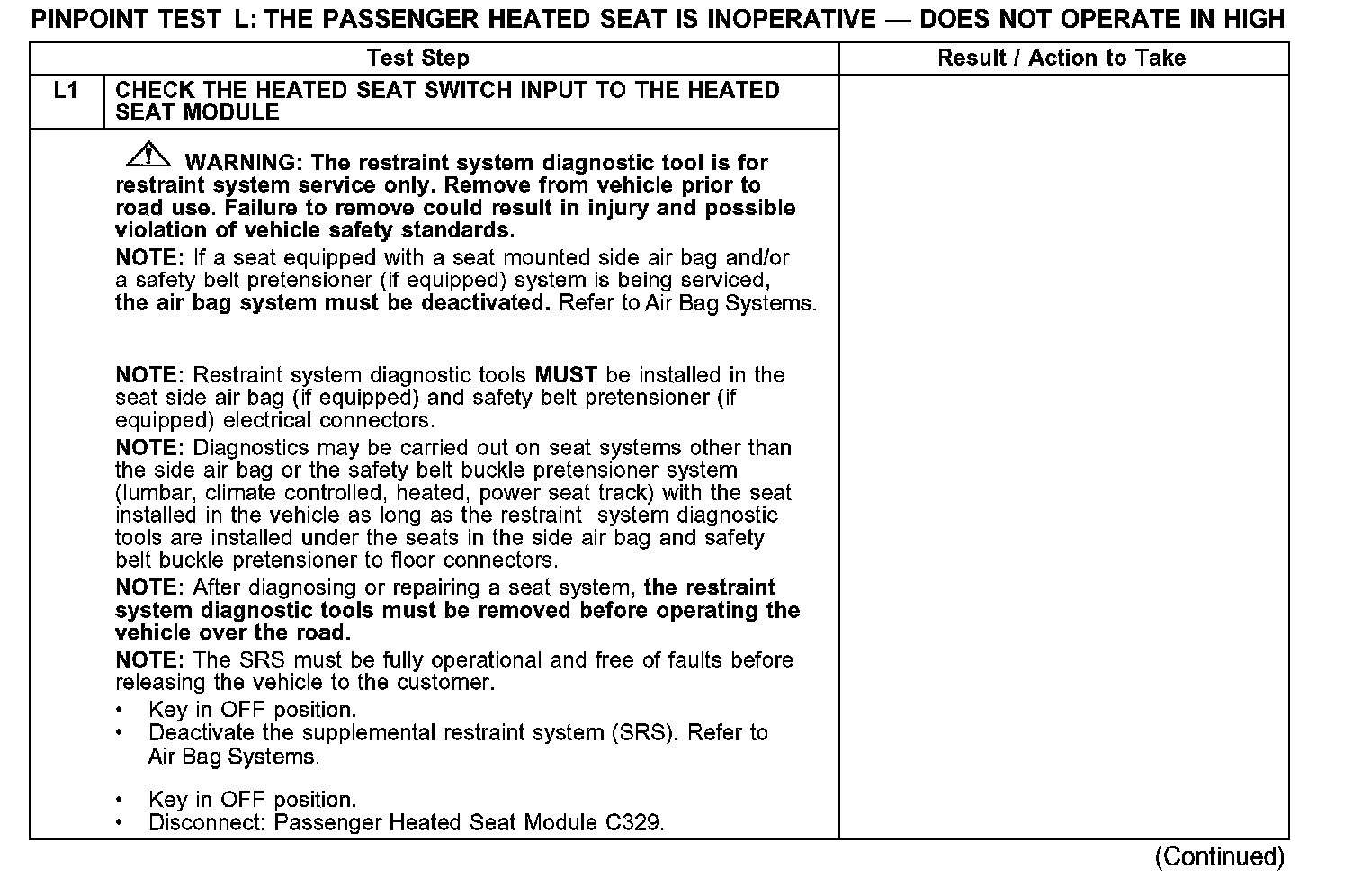

Test L1:

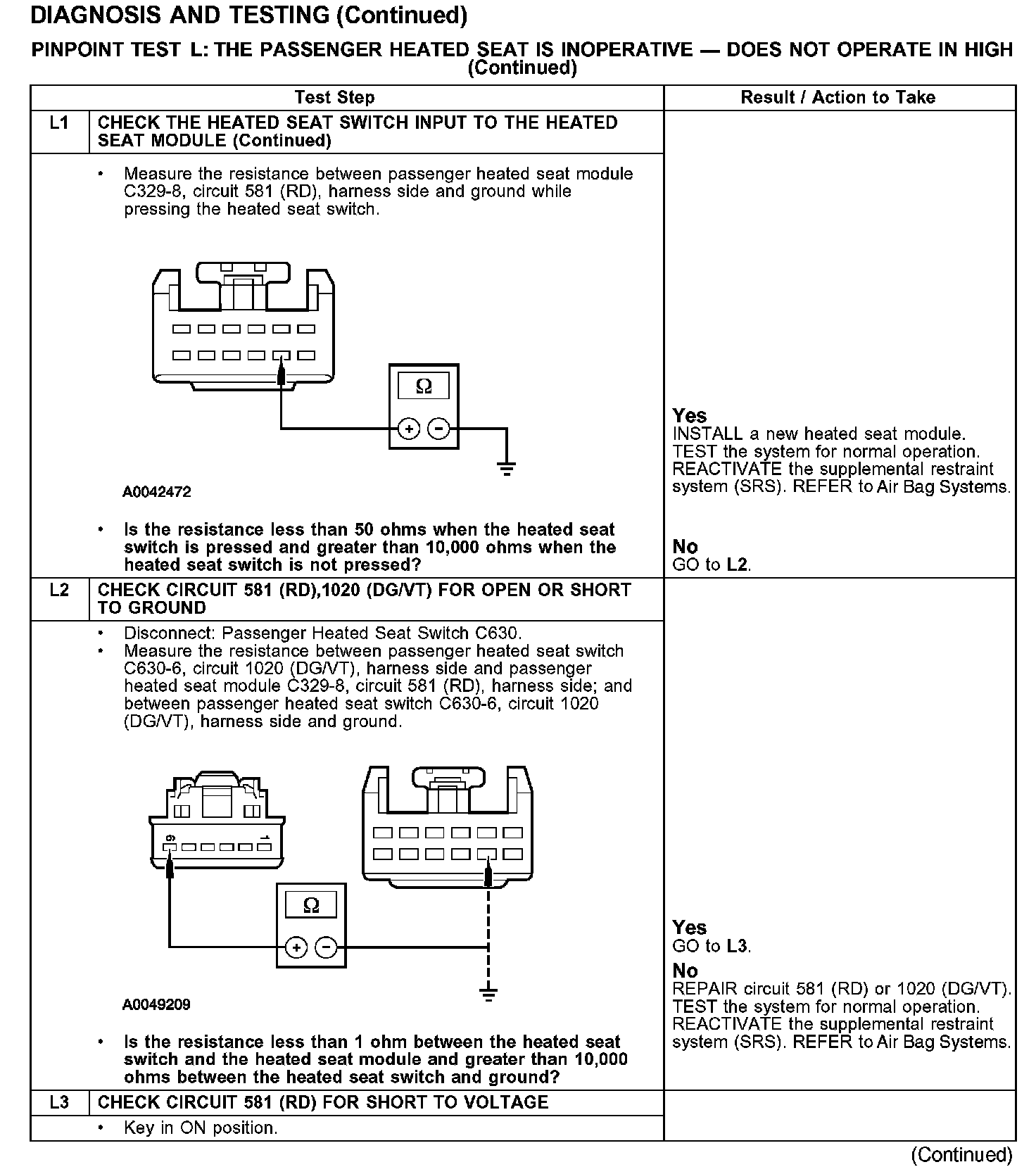

Test L1-L3:

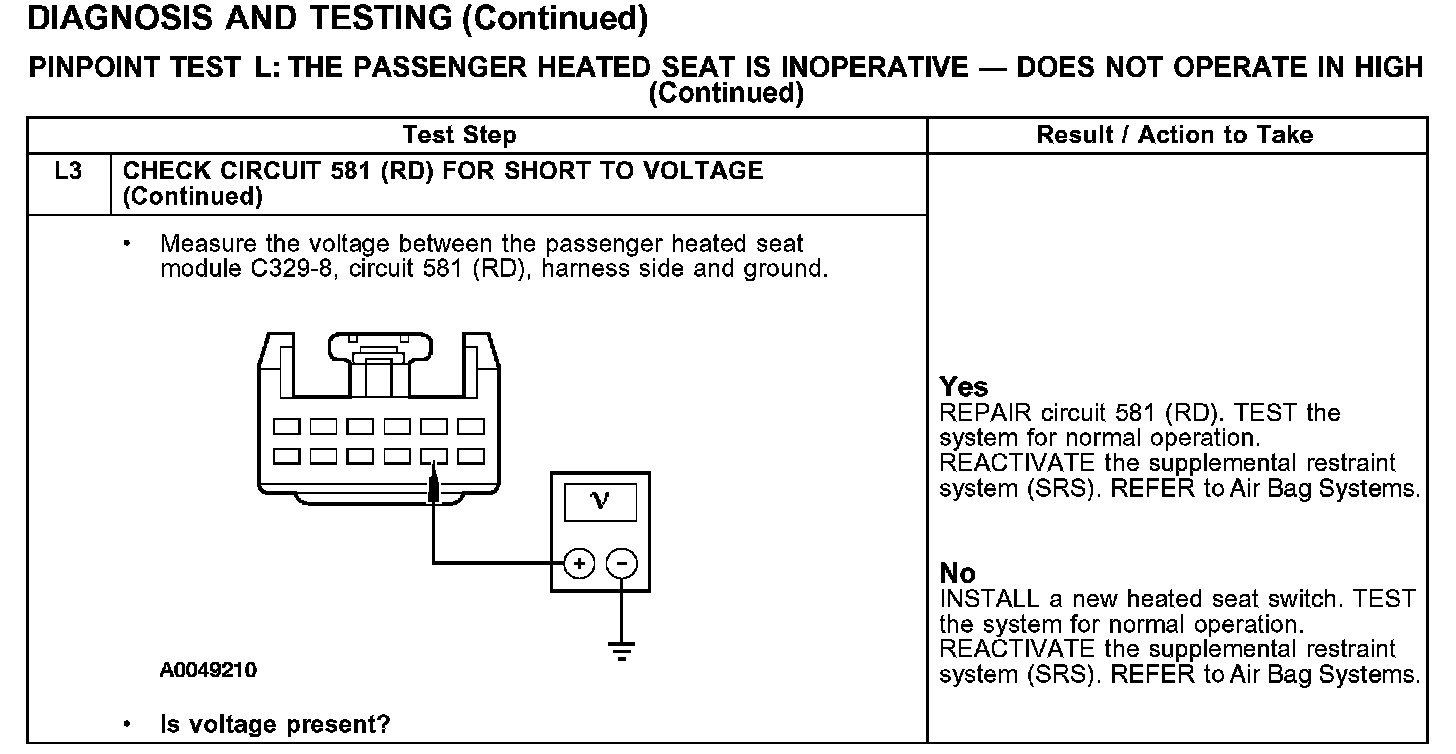

Test L3 Continued:
