Brake Pedal and Bracket - Adjustable

Brake Pedal And Bracket- Adjustable

Removal and Installation

CAUTION: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal assembly is serviced.

1. Disconnect the battery ground cable.

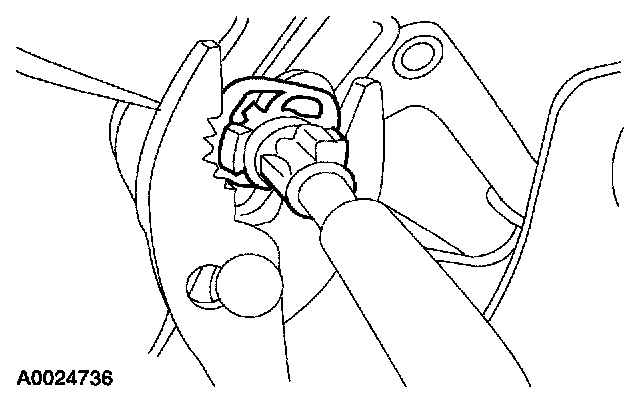

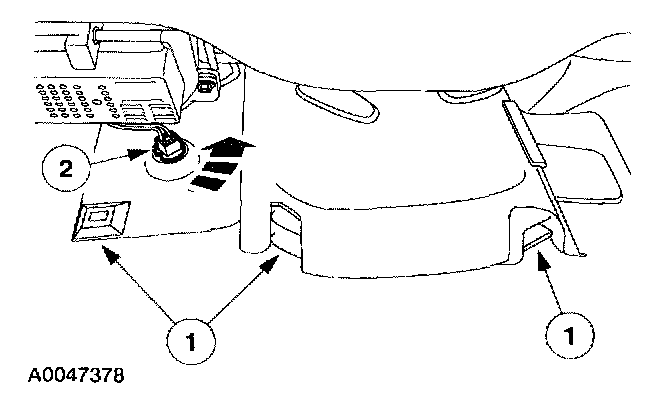

2. Remove the instrument panel close-out panel.
1 Remove the pushpins.
2 Turn the damp counterclockwise.

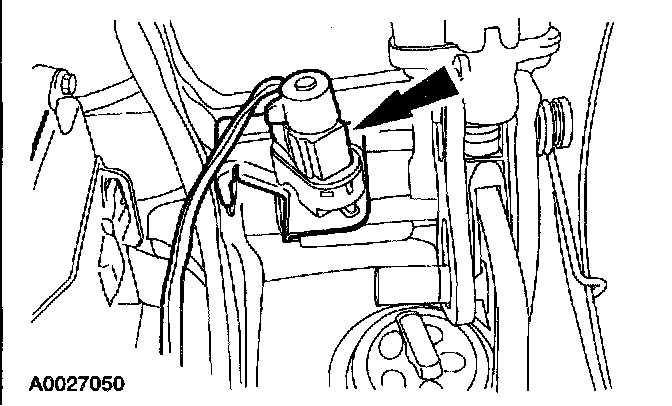

3. Remove the speed control deactivator switch.

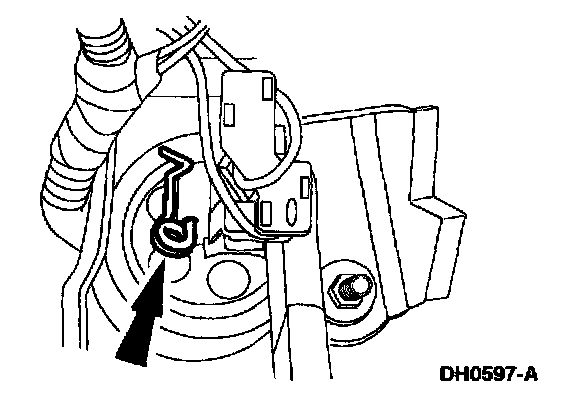

4. Remove the stoplight switch retaining pin.

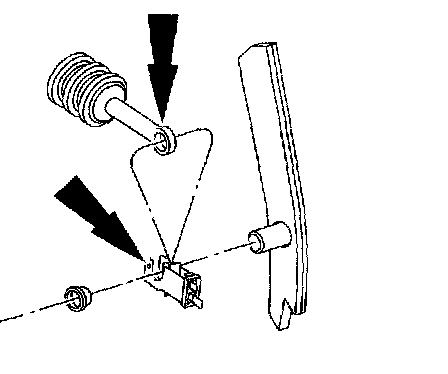

5. Remove the washer, bushing and then slide the stoplight switch and booster push rod from the brake pedal pin.

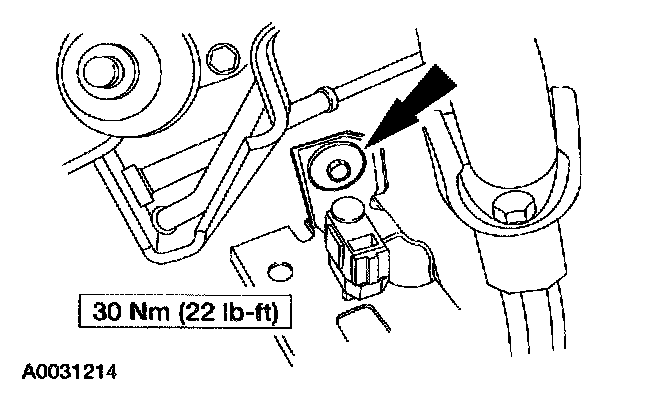

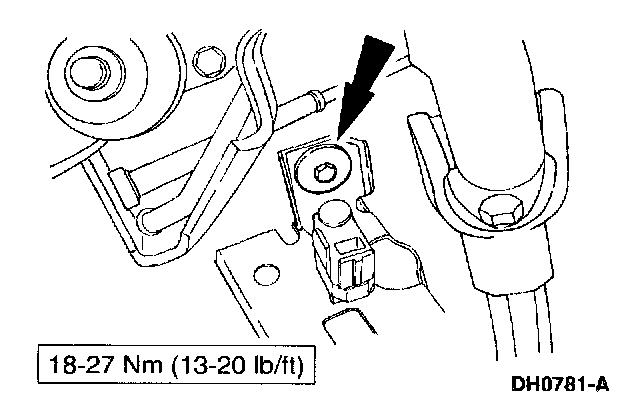

6. Remove the brake pedal bracket retaining bolt.

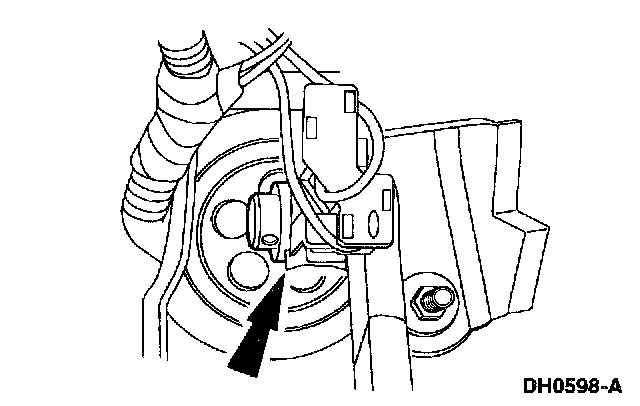

7. Detach the adjustable brake pedal drive cable from the brake pedal assembly.

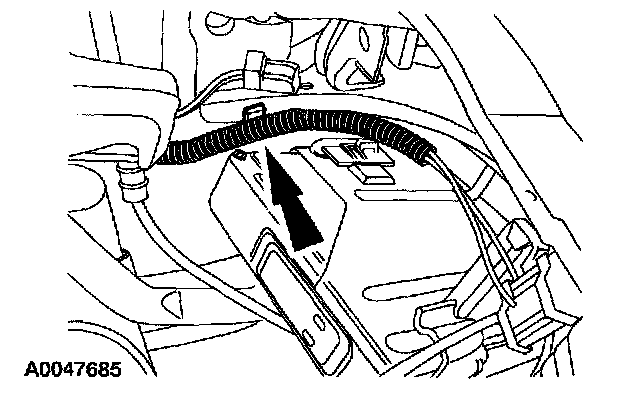

8. Disconnect the stoplight switch harness from the pedal bracket.

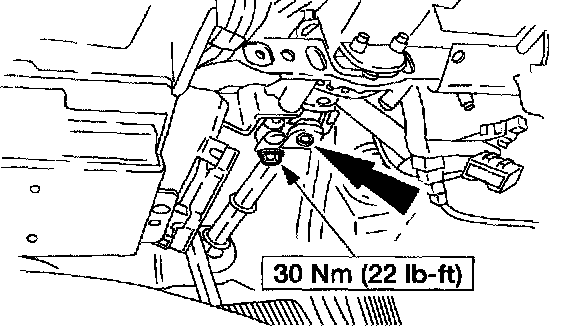

9. Remove the pinch bolt and disconnect the lower steering column shaft from the steering column lower yoke.
^ Discard the bolt.

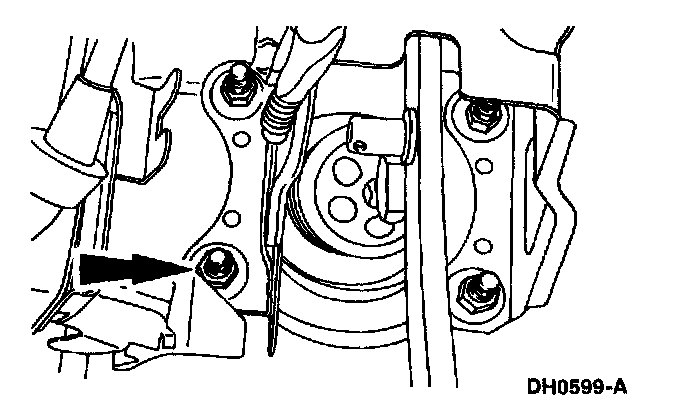

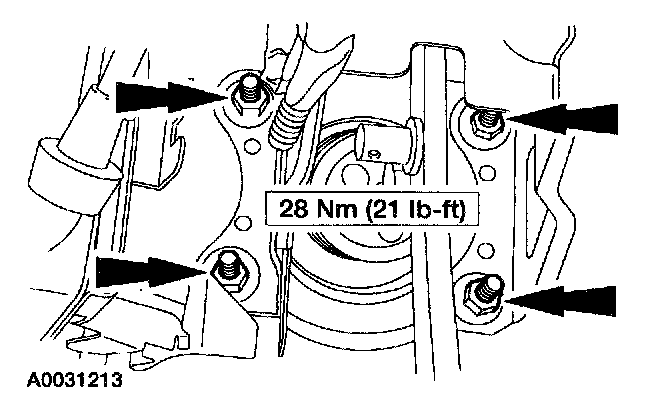

10. Remove the brake pedal bracket retaining nuts.

11. CAUTION: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal assembly is serviced.

Remove the brake pedal and bracket.











12. CAUTION: The brake switch must be positioned with the closed hole away from the brake pedal arm and the open hole facing upward.

To install, reverse the removal procedure.
^ Verify correct stoplight operation.
