Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Hazard Warning Lamps
>>
Hazard Flasher Relay
>>

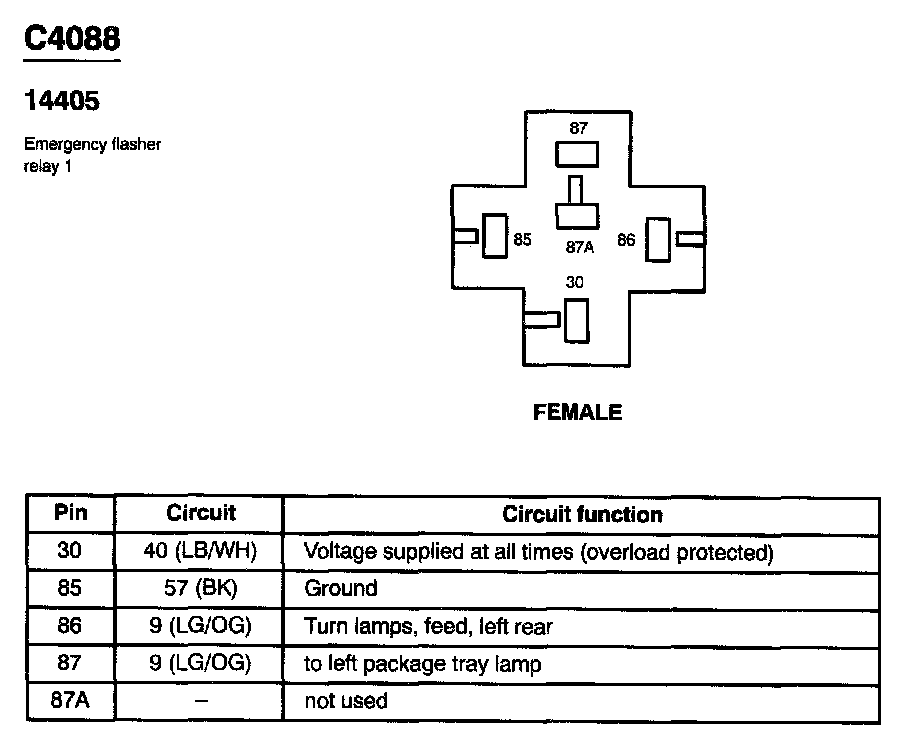

Emergency Flasher Relay 1
Emergency Flasher Relay 1
