Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
System Diagram
>>

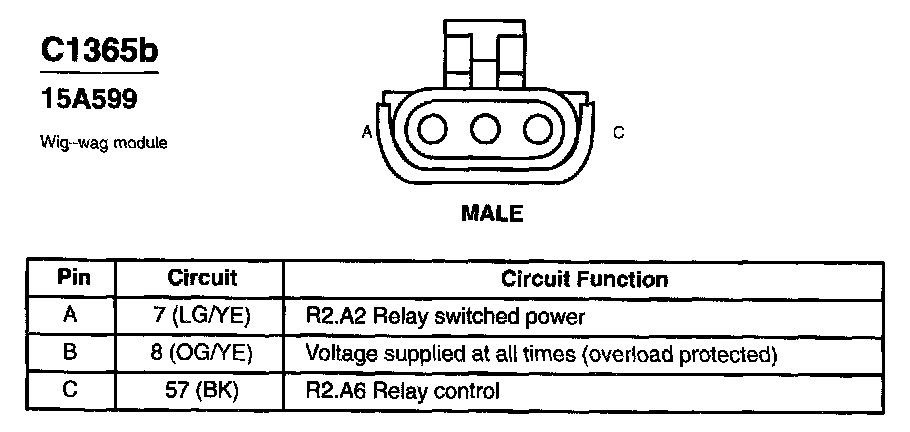

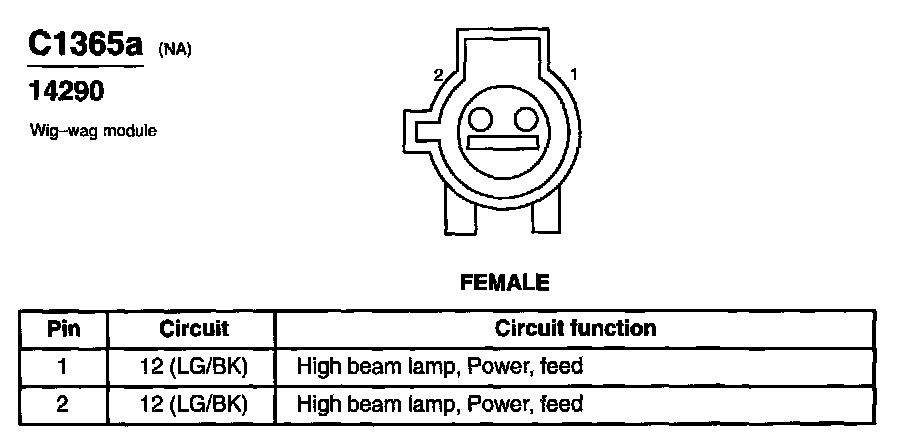

Wig-Wag Module
Wig-Wag Module
