Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set 100
Diagram Set 100

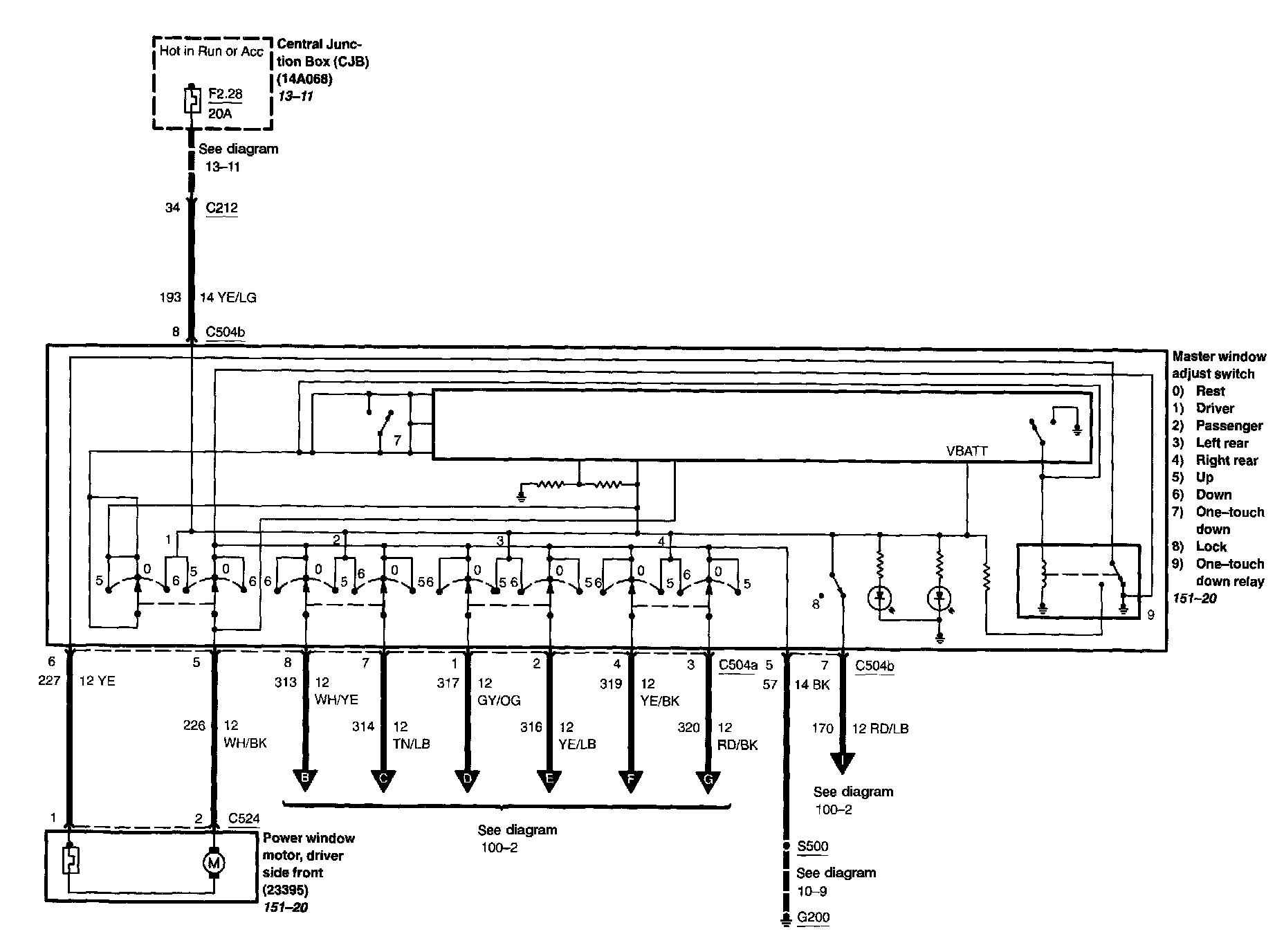

100-1:

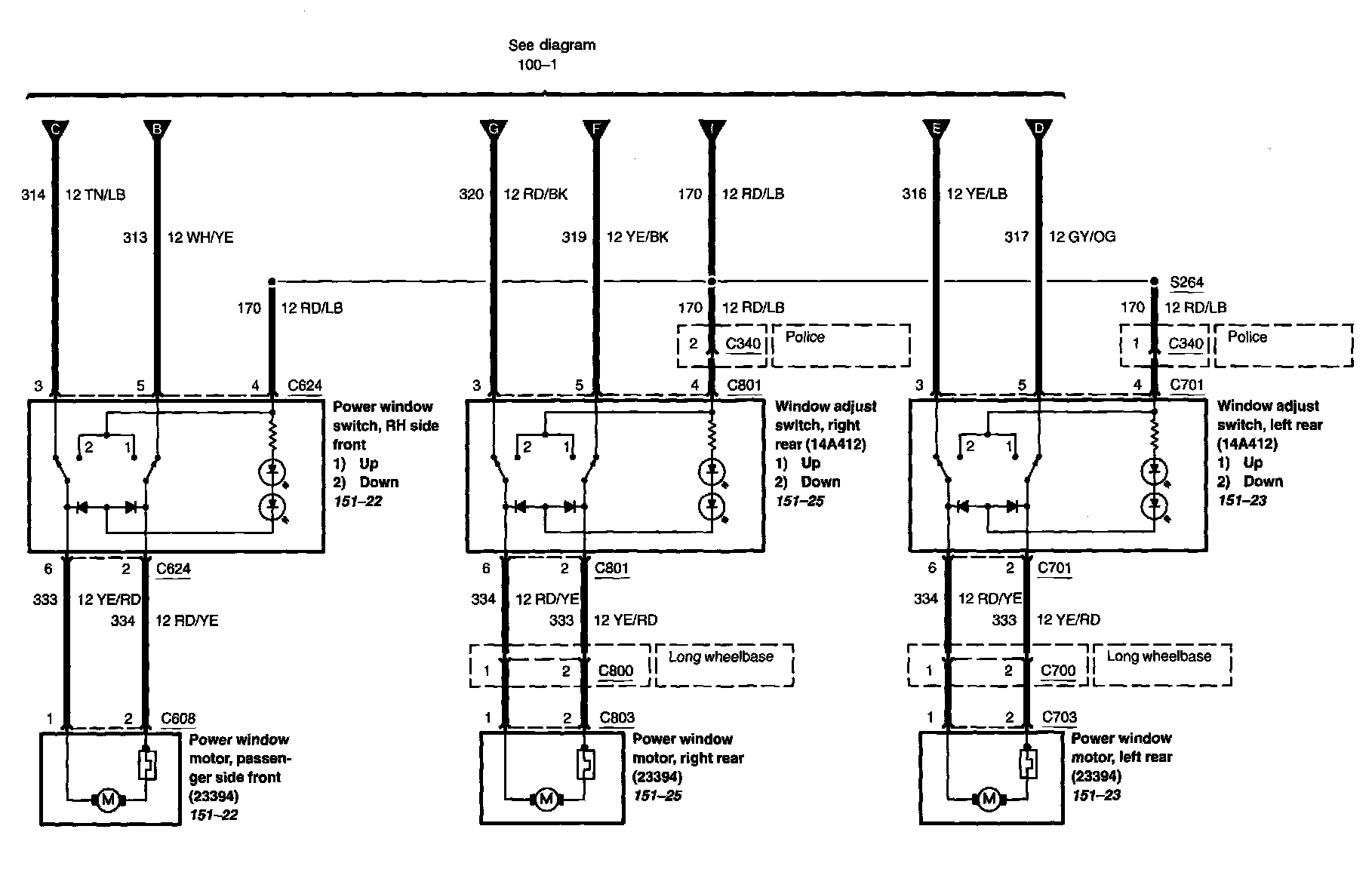

100-2:
