Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set 93
Diagram Set 93

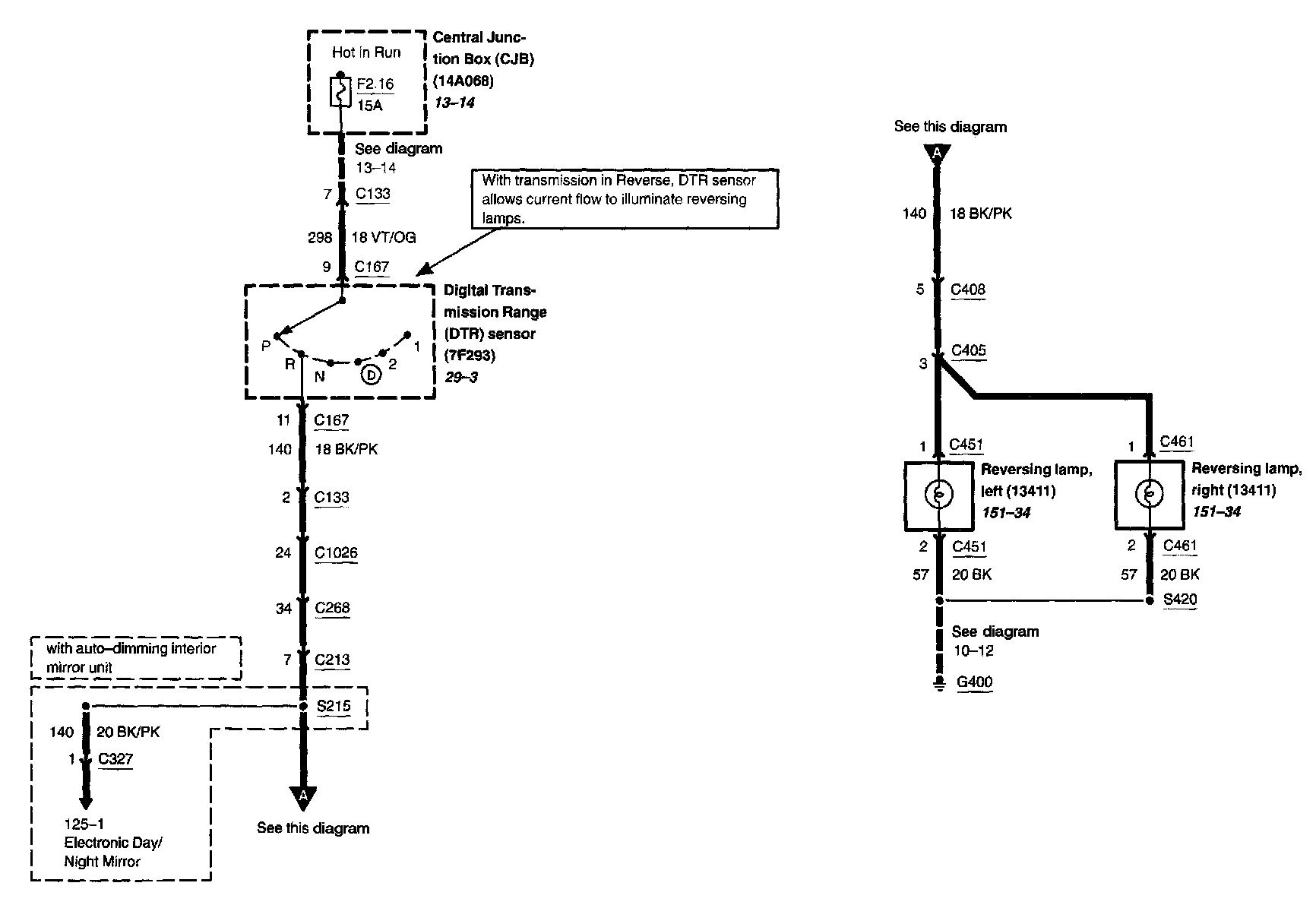

93-1:
