Drive Belt Tensioner: Service and Repair

Accessory Drive Belt Tensioner

Removal

NOTE: 4.6L (2V) shown, 4.6L (4V) similar.

1. Remove the drive belt.

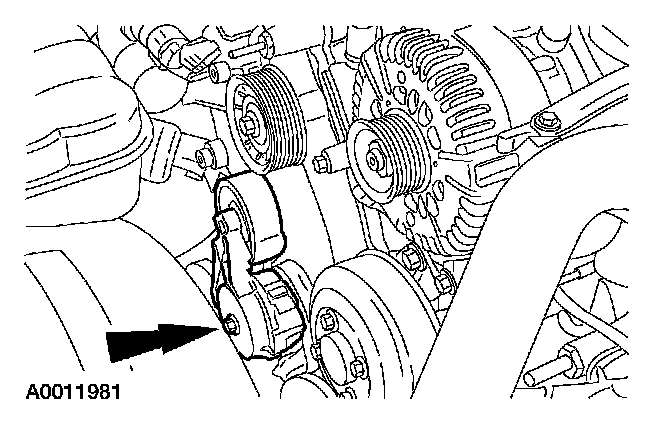

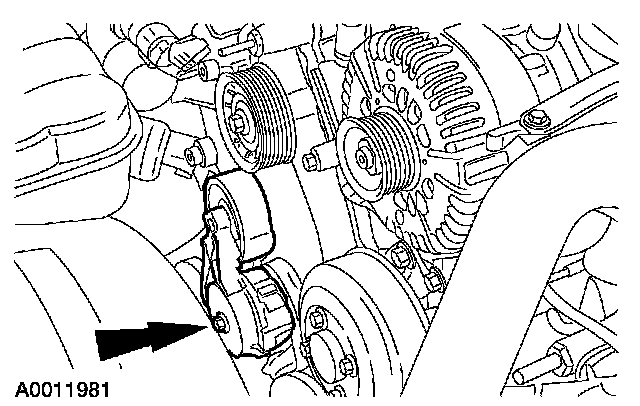

2. Remove the bolt and the belt tensioner.

Installation





1. Install the belt tensioner.
Tighten the bolt in two stages:
^ Stage 1: Tighten to 10 Nm (89 inch lbs.).
^ Stage 2: Tighten an additional 90 degrees.

2. Install the drive belt.
