Engine Mount RH

Engine Mount RH

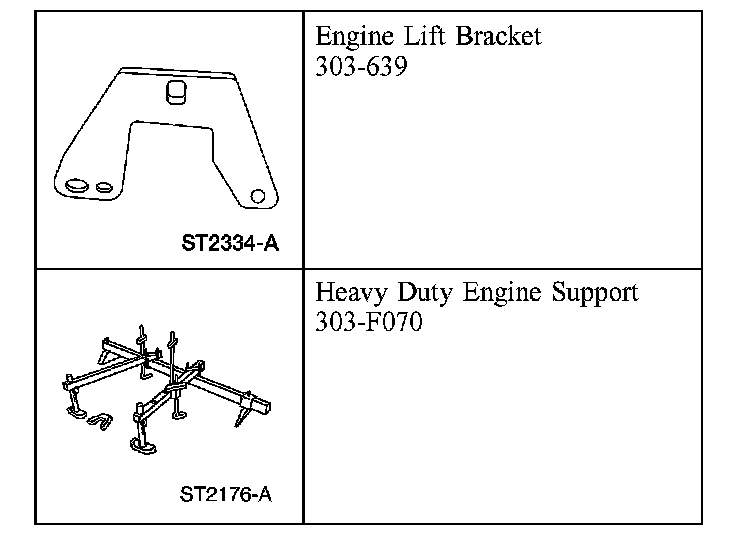

Special Tool(s)

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the generator.

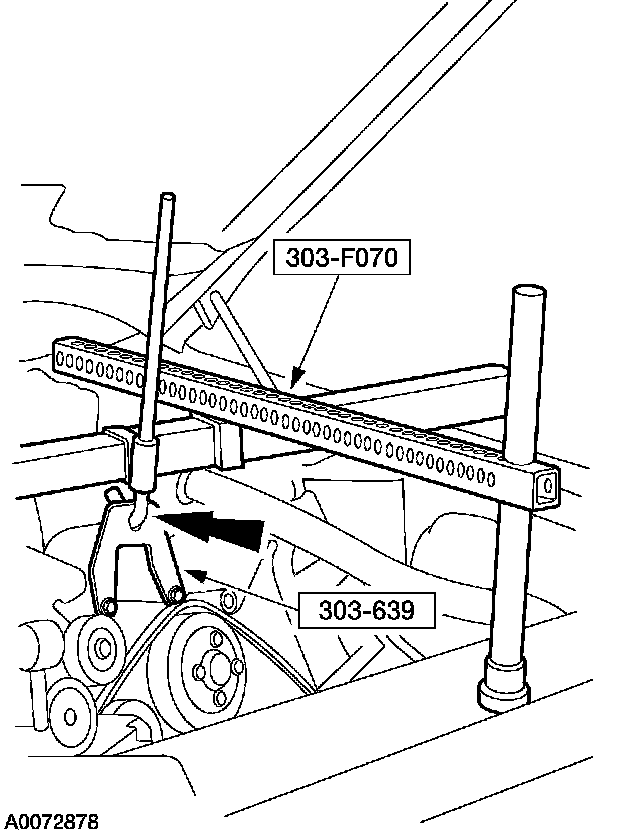

3. Install the special tools.

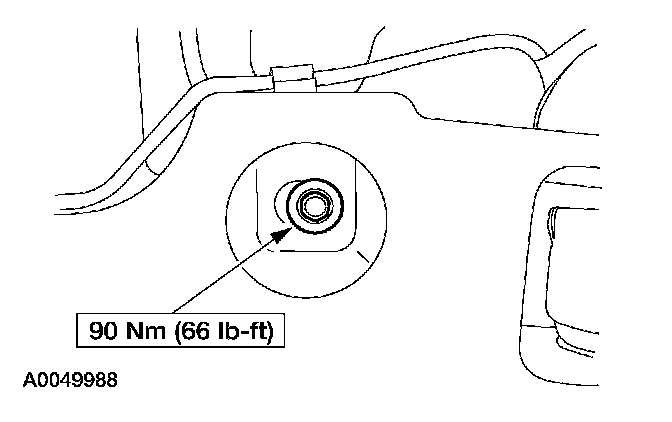

4. Remove the nut.

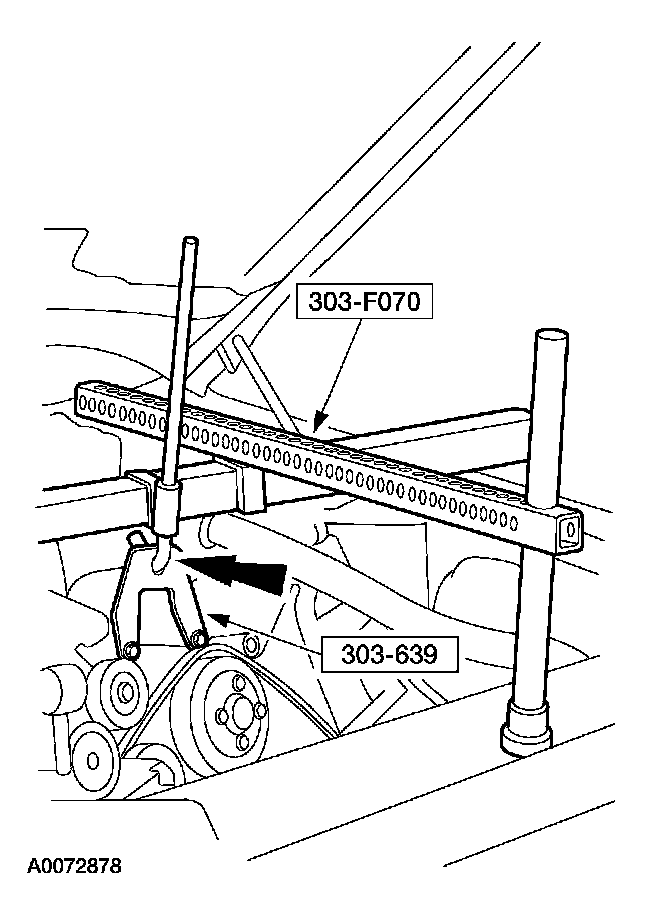

5. Using the special tools, raise the engine.

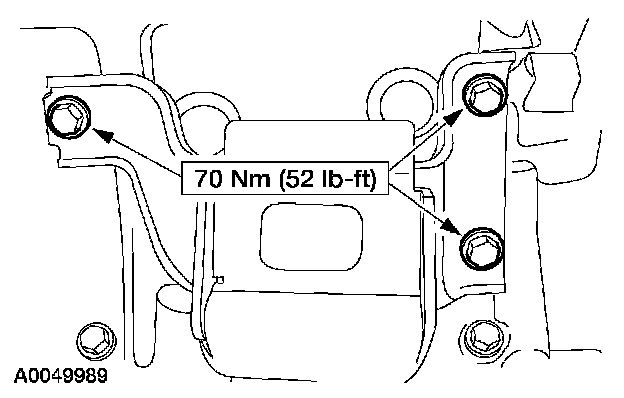

6. Remove the three bolts.
7. Remove the RH engine mount.
8. To install, reverse the removal procedure.
