Idler Pulley: Service and Repair

Accessory Drive Belt Idler Pulley

Removal and Installation

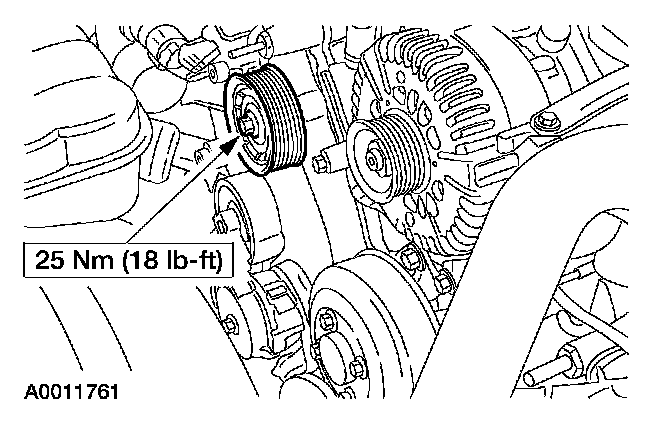

NOTE: 4.6L (2V) shown, 4.6L (4V) similar.

1. Remove the drive belt.





2. Remove the bolt and the belt idler pulley.
3. To install, reverse the removal procedure.
