SUCTION ACCUMULATOR

REMOVAL

NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the suction accumulator.

1. Recover the refrigerant.

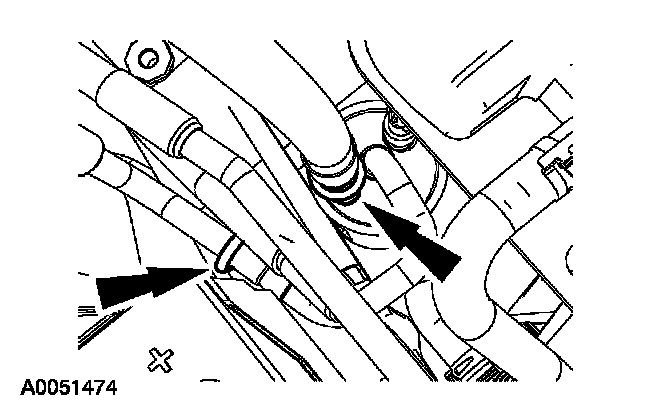

2. Disconnect the spring lock couplings.
- Discard the O-ring seals.

3. Disconnect the low-charge protection switch electrical connector.
4. Raise the vehicle.

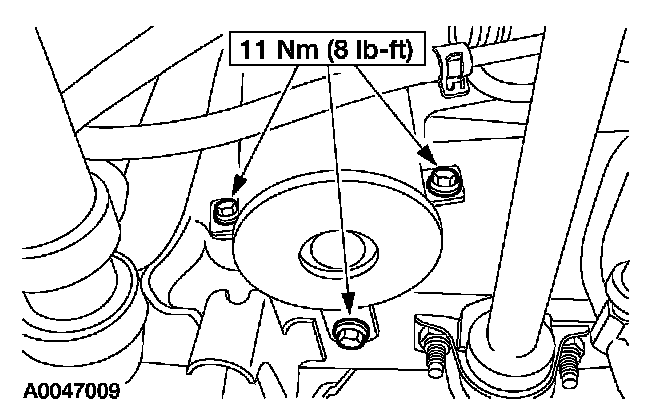

5. Remove the bolts and the suction accumulator.

INSTALLATION
1. To install, reverse the removal procedure.
- Install new O-ring seals lubricated in clean PAG oil.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.

2. Evacuate, leak test and charge the refrigerant system.
