Rear Footwell Duct
REAR FOOTWELL DUCTREMOVAL
All vehicles
1. Remove the front seats.
Five passenger/Marauder vehicles
2. Remove the floor console.
All vehicles
3. Position the carpet aside.
Five passenger/Marauder vehicles

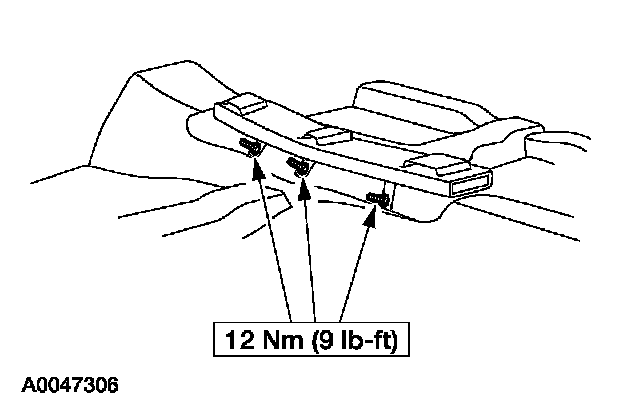

4. Remove the nuts and remove the rear footwell duct.
Six passenger vehicles

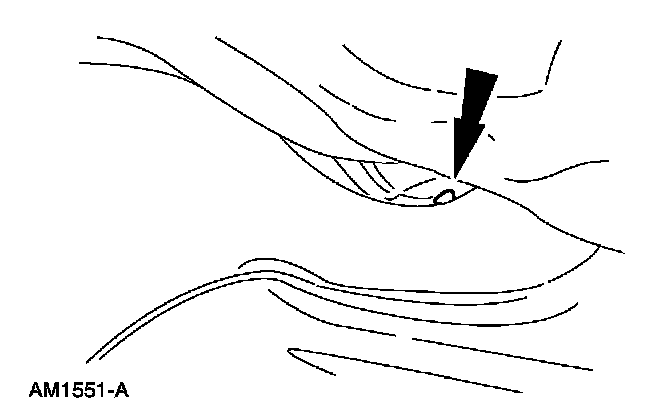

5. Remove the pin-type retainer on each side of the duct and remove the duct.
INSTALLATION
All vehicles
1. To install, reverse the removal procedure.
