Diesel Data: Automotive Repair

Home >> Ford >> 2004 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Specifications

Instrument Panel, Gauges and Warning Indicators: Specifications

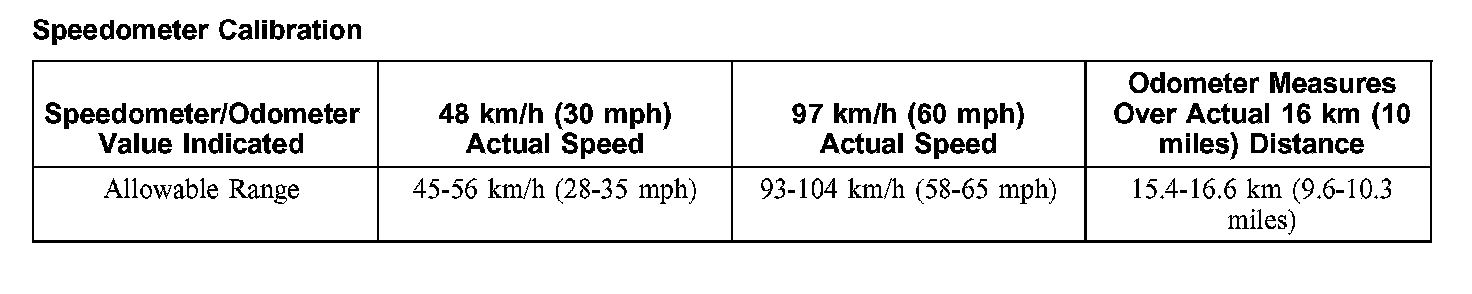

Speedometer Calibration:

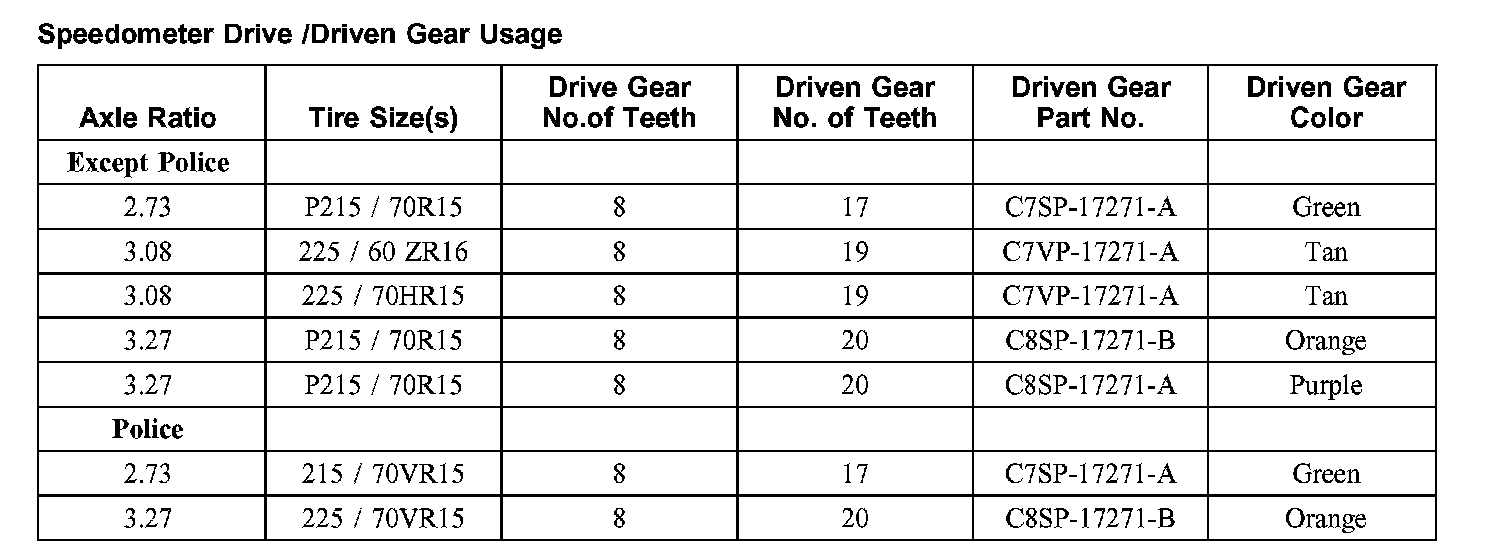

Speedometer Drive/Driven Gear Usage:

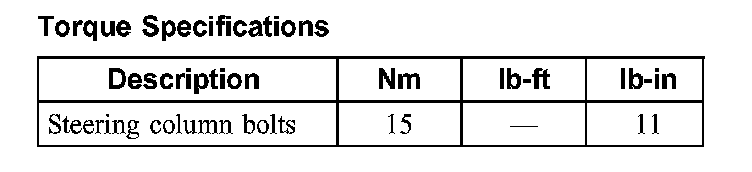

Torque Specifications:
