Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test I
Test I

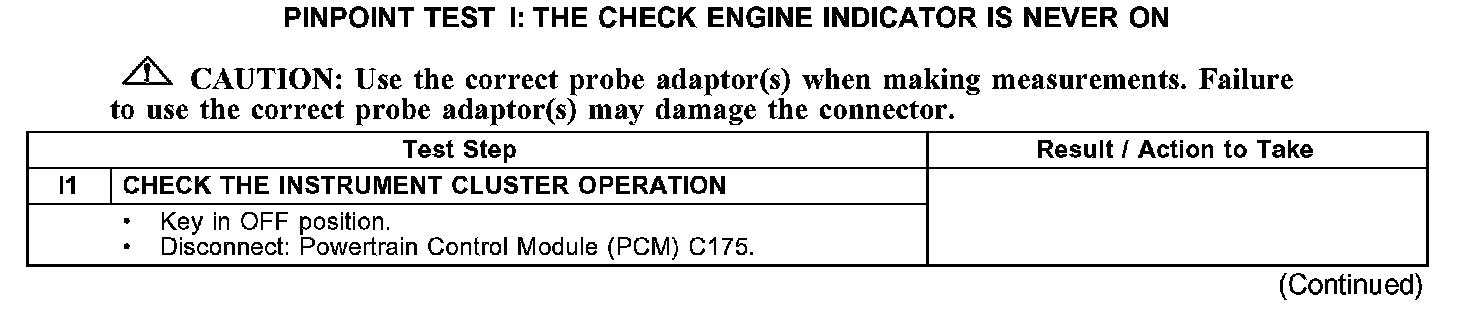

PINPOINT TEST I: THE CHECK ENGINE INDICATOR IS NEVER ON
Test I1:

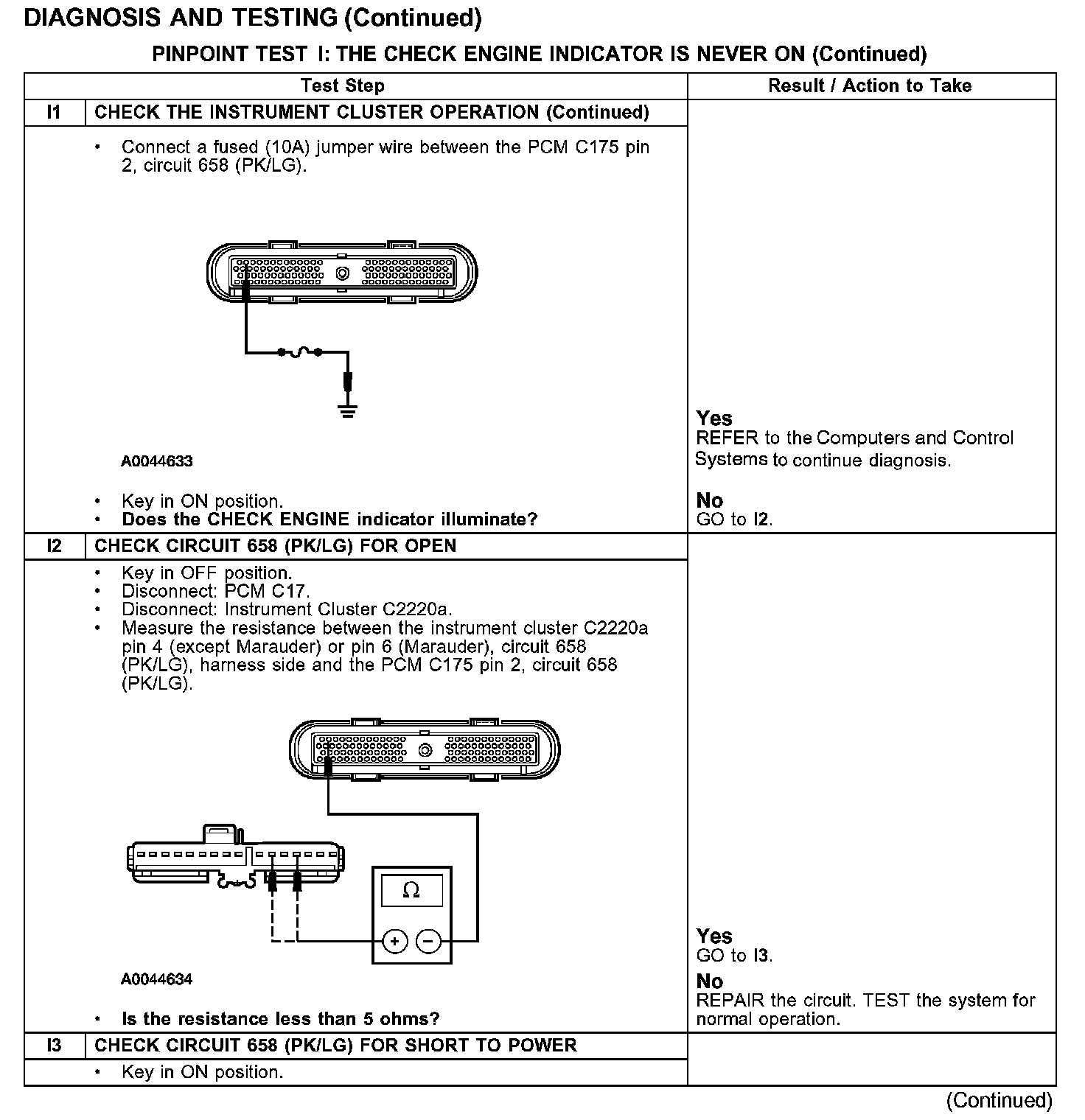

Test I1-I3:

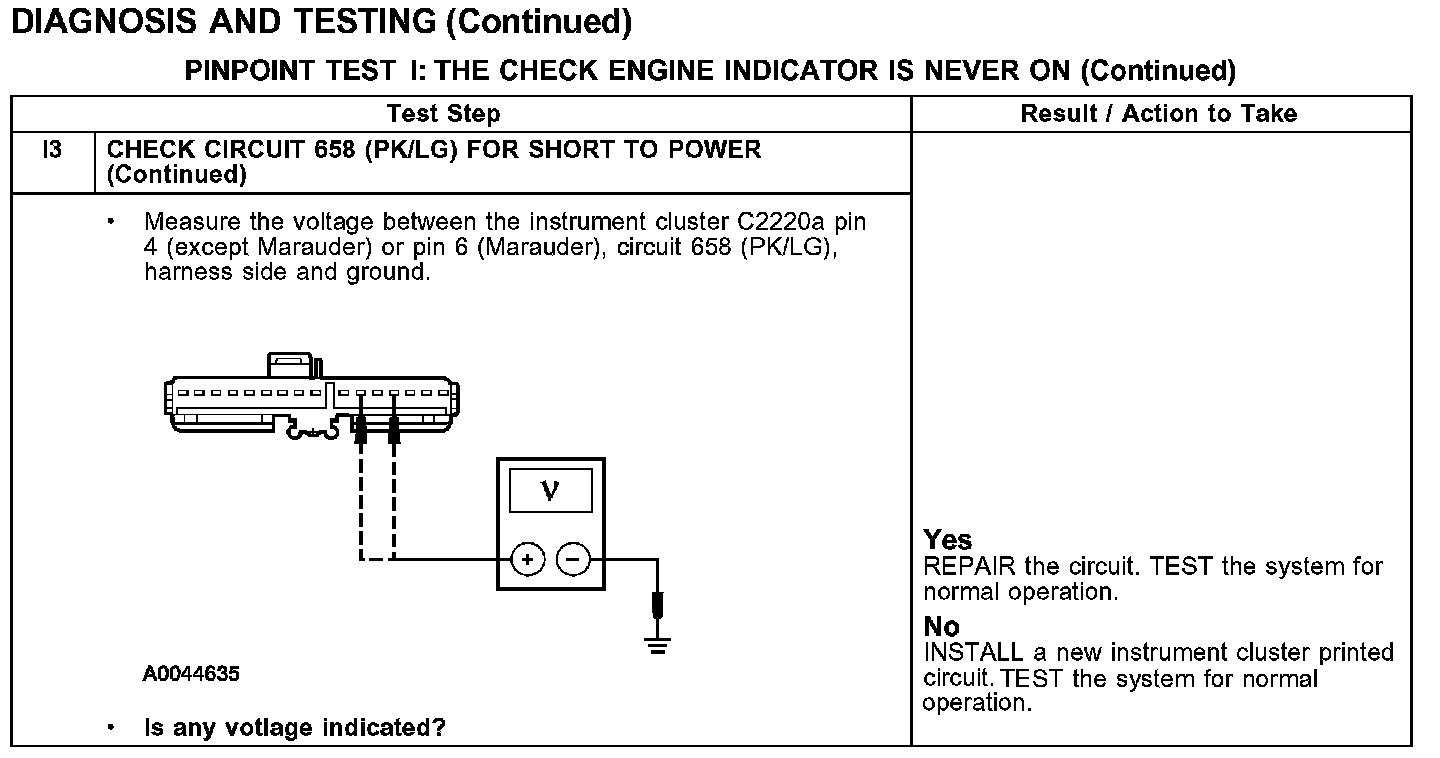

Test I3 Continued:
