Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test Q
Test Q
PINPOINT TEST Q: THE ANTI-LOCK BRAKE SYSTEM (ABS) WARNING INDICATOR IS NEVER ON

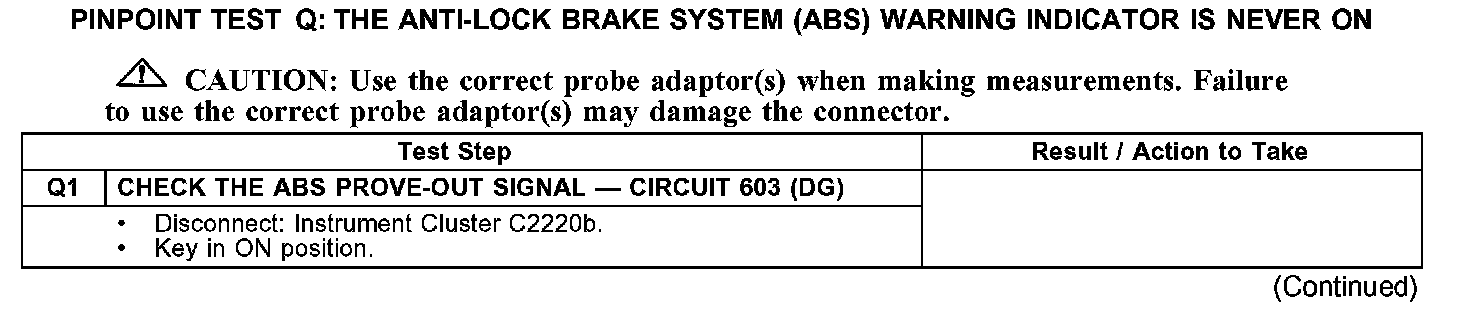

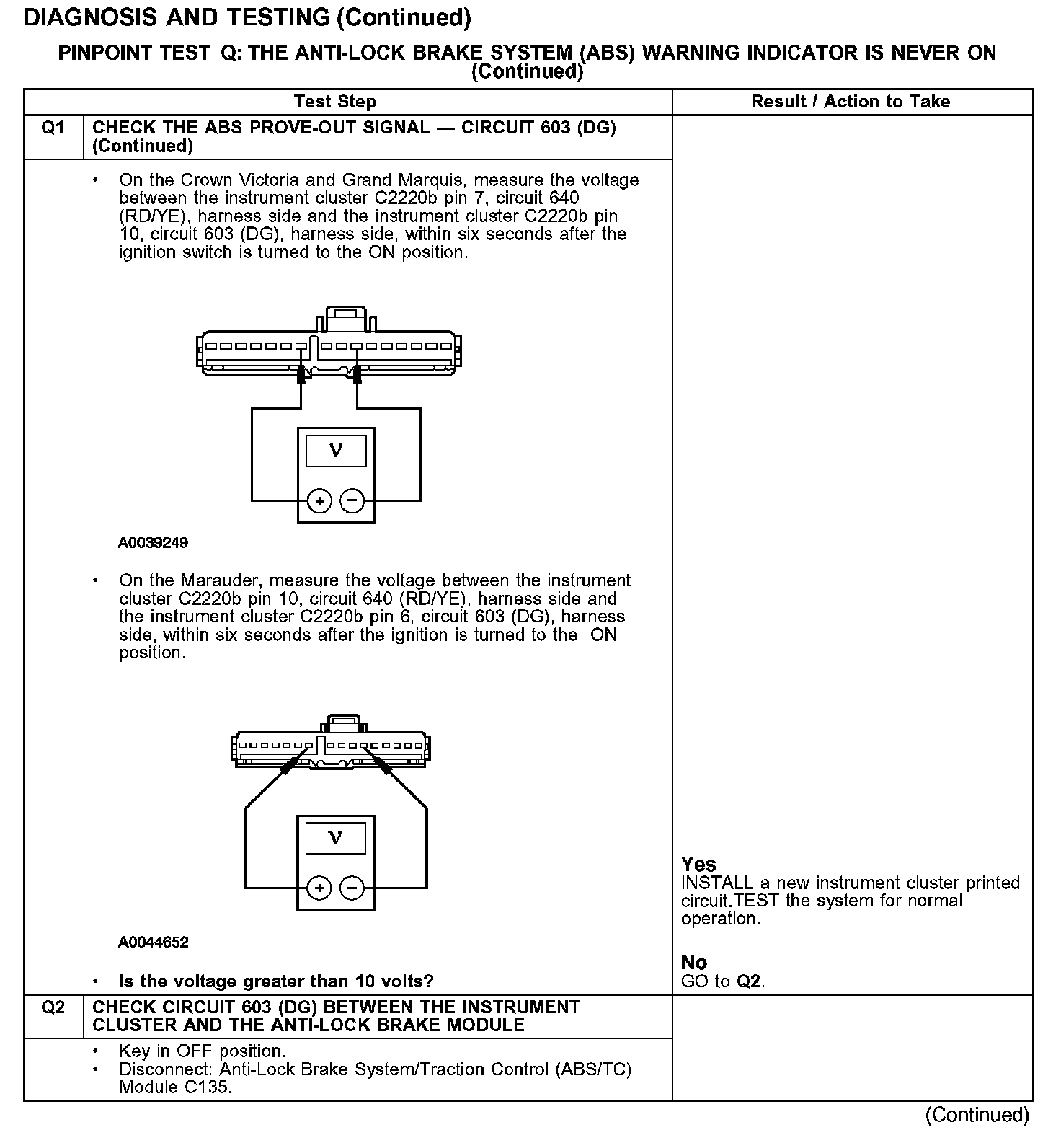

Test Q1:

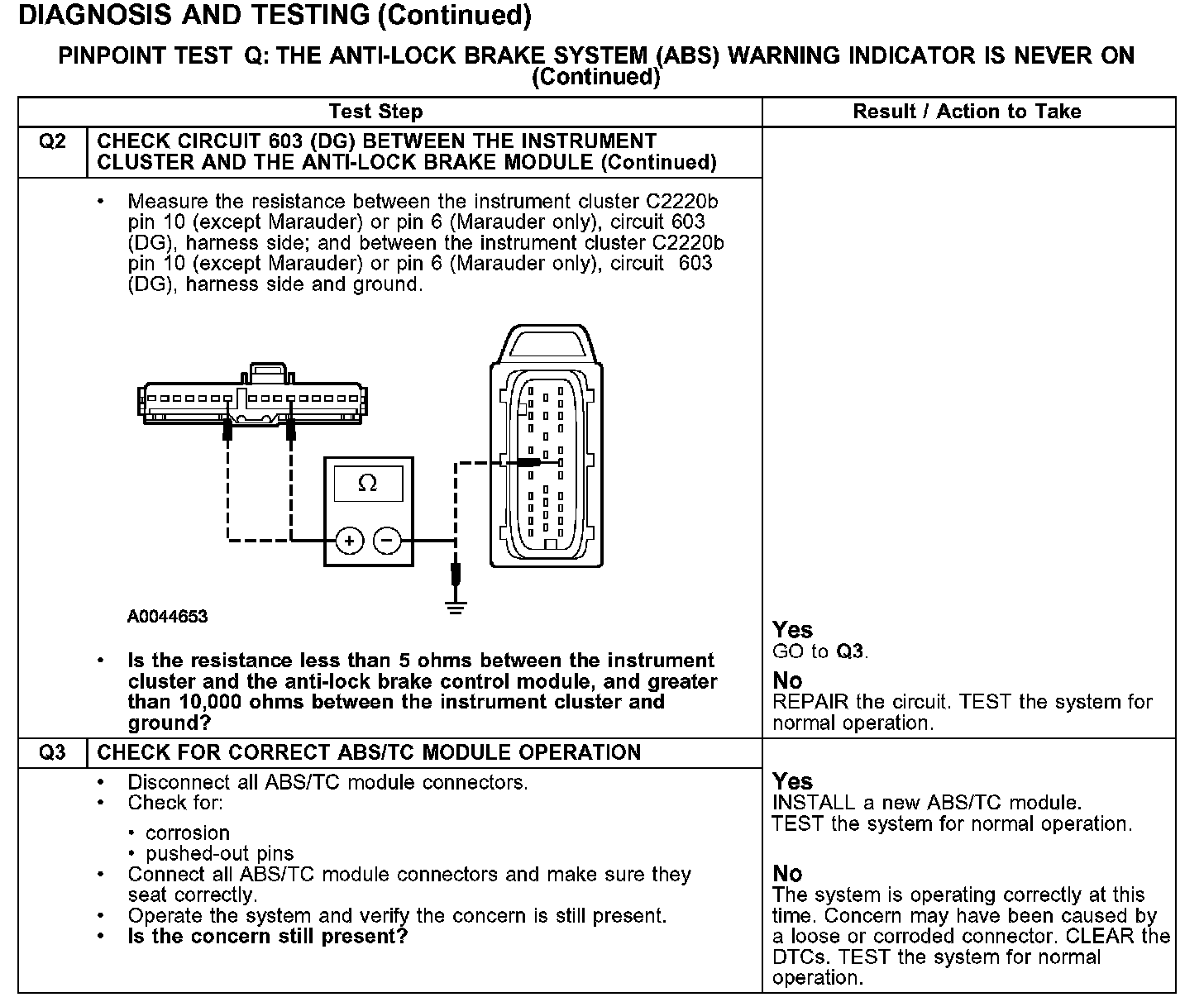

Test Q1-Q2:
Test Q2-Q3:
