Test R

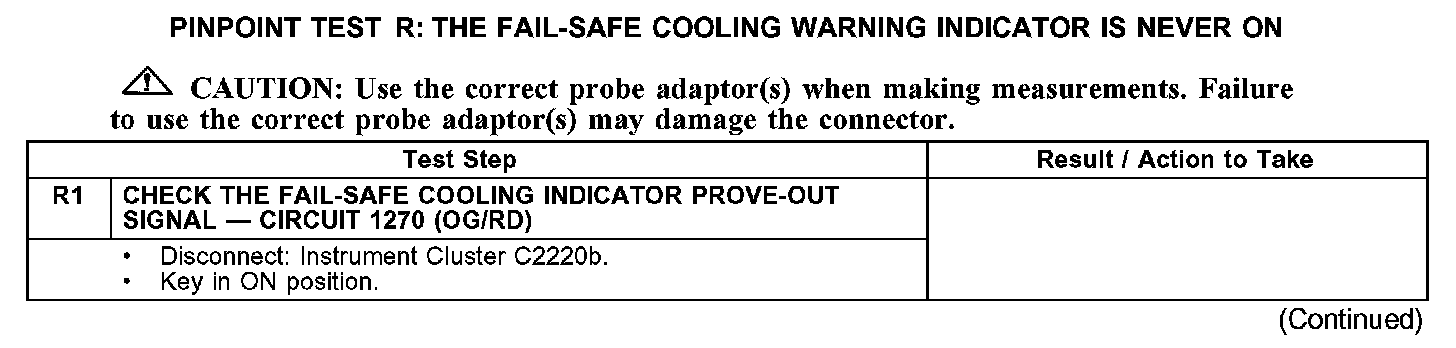

PINPOINT TEST R: THE FAIL-SAFE COOLING WARNING INDICATOR IS NEVER ON

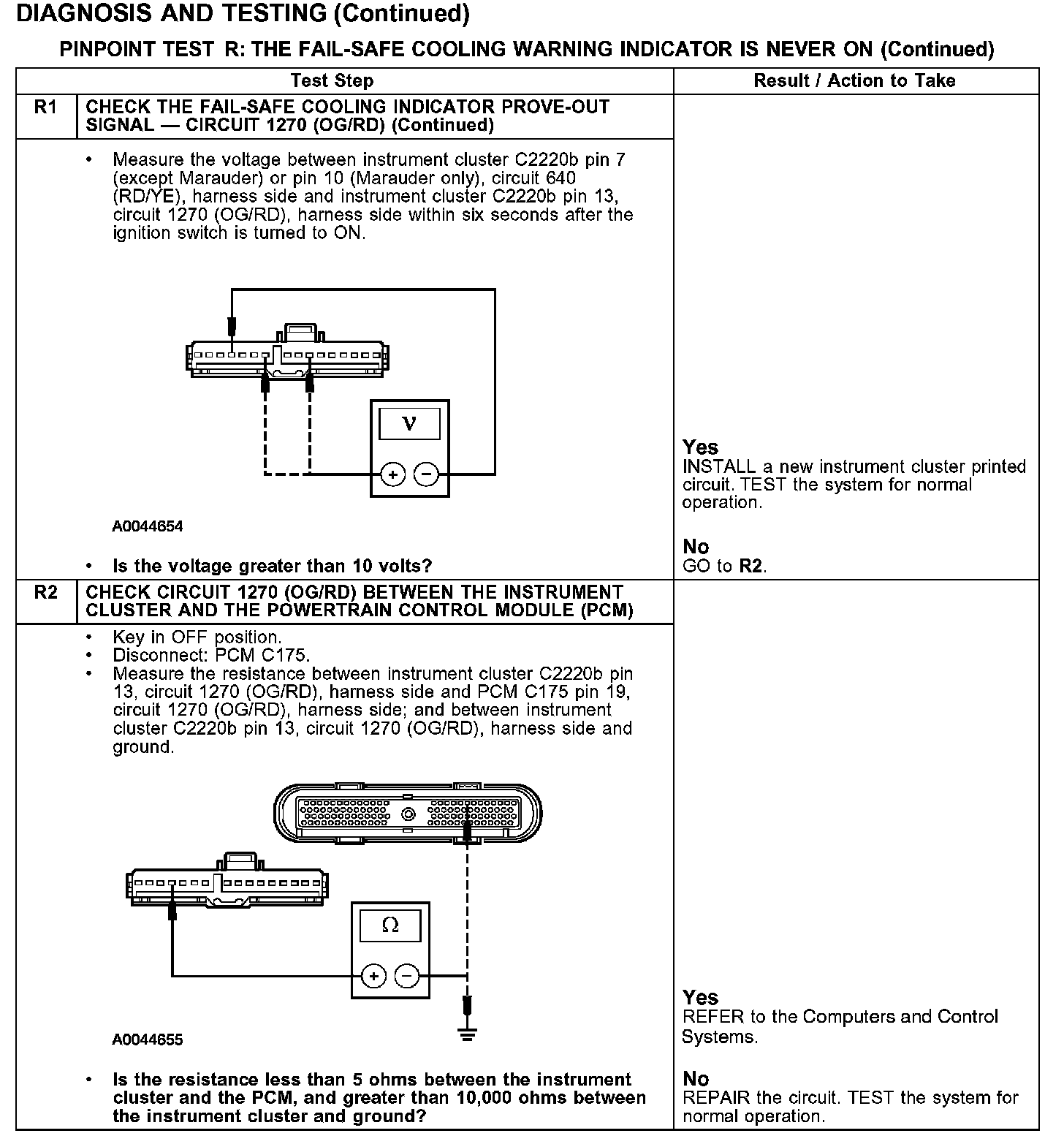

Test R1:






Test R1-R2:
