Home >> Ford >> 2004 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test E

Test E

PINPOINT TEST E: THE SPEEDOMETER/ODOMETER IS INOPERATIVE

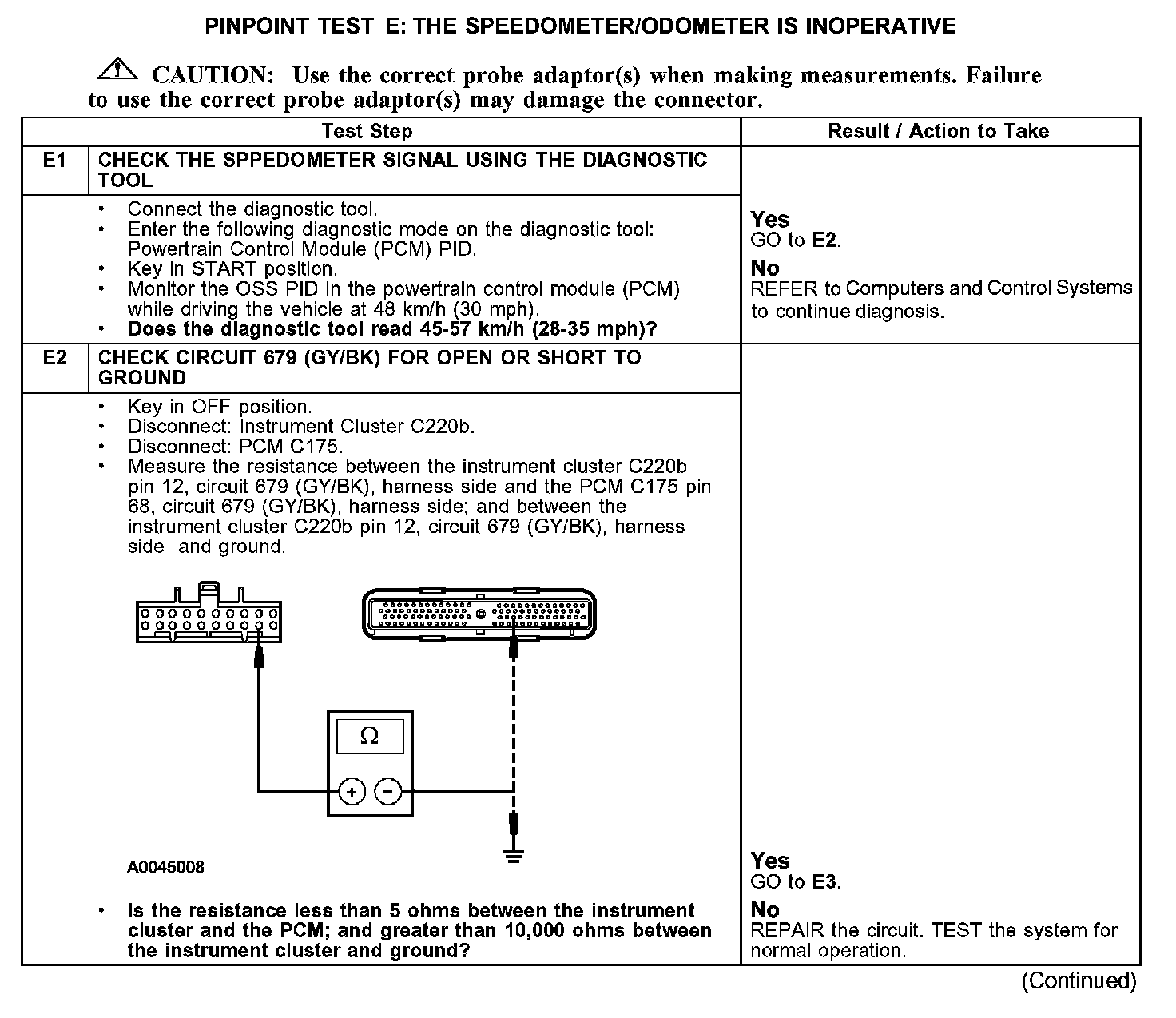

Test E1-E2:

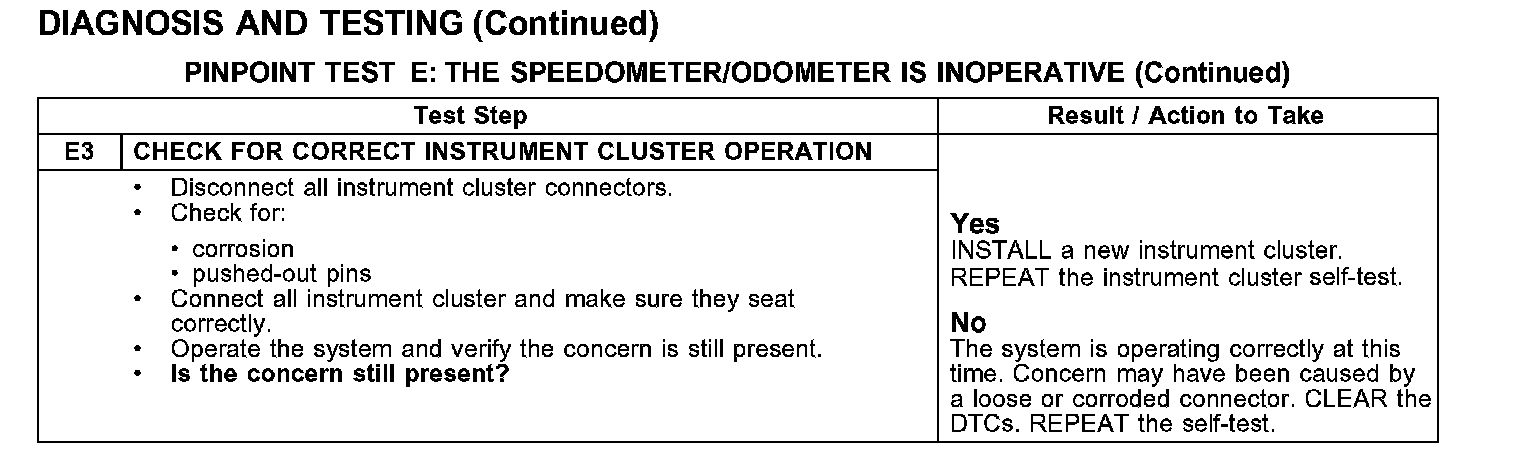

Test E3:
