Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Electronic Cluster
>>
Test G
Test G

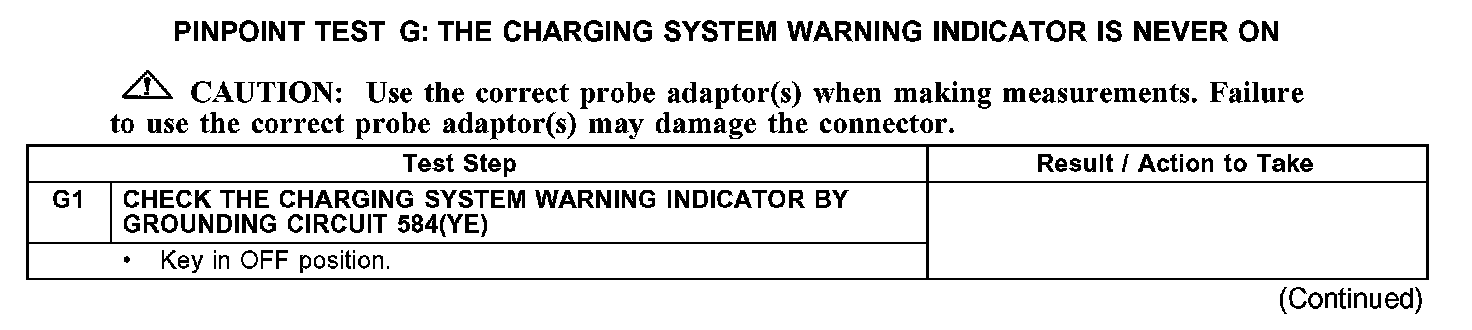

PINPOINT TEST G: THE CHARGING SYSTEM WARNING INDICATOR IS NEVER ON

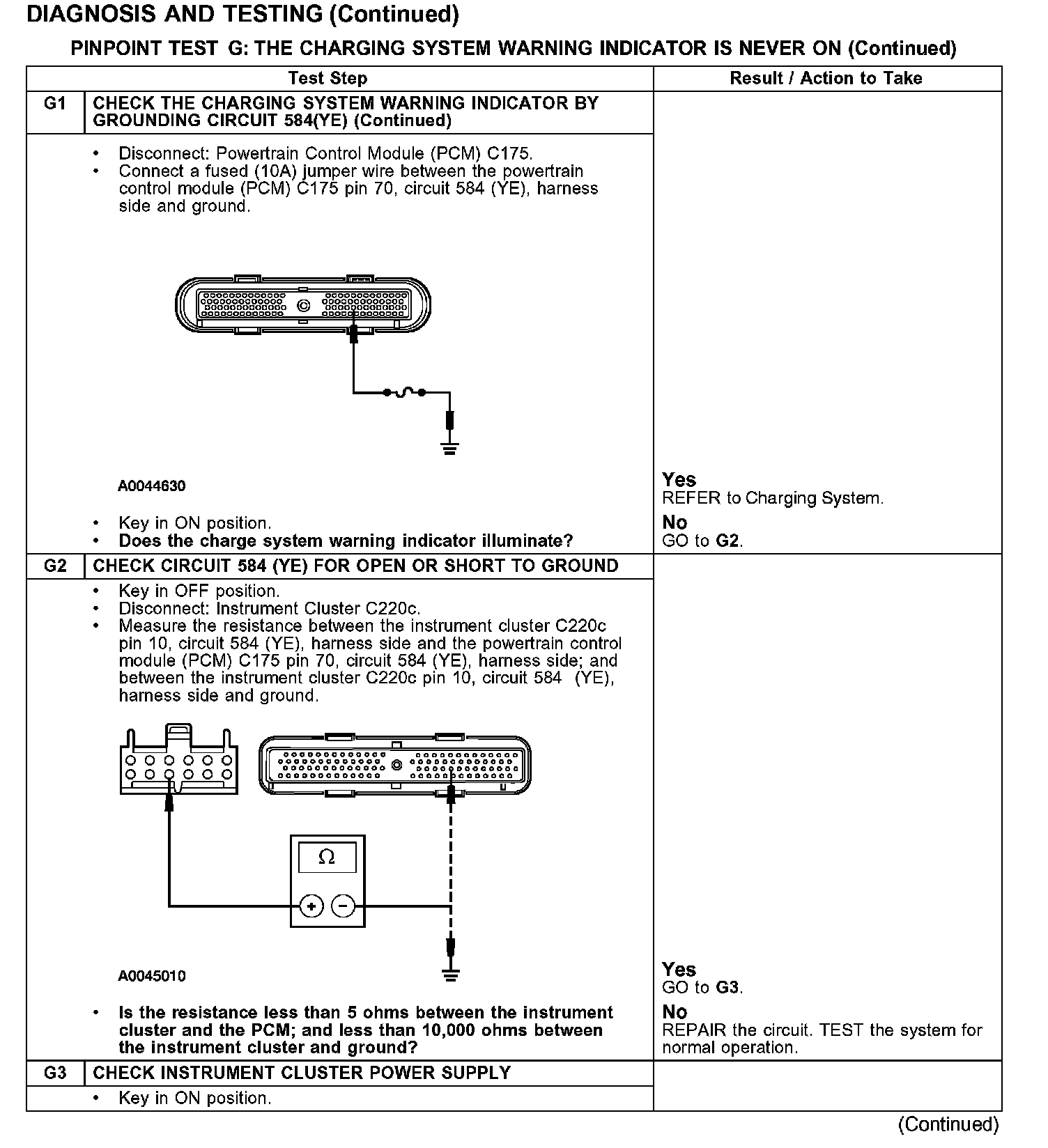

Test G1:
Test G1-G3:

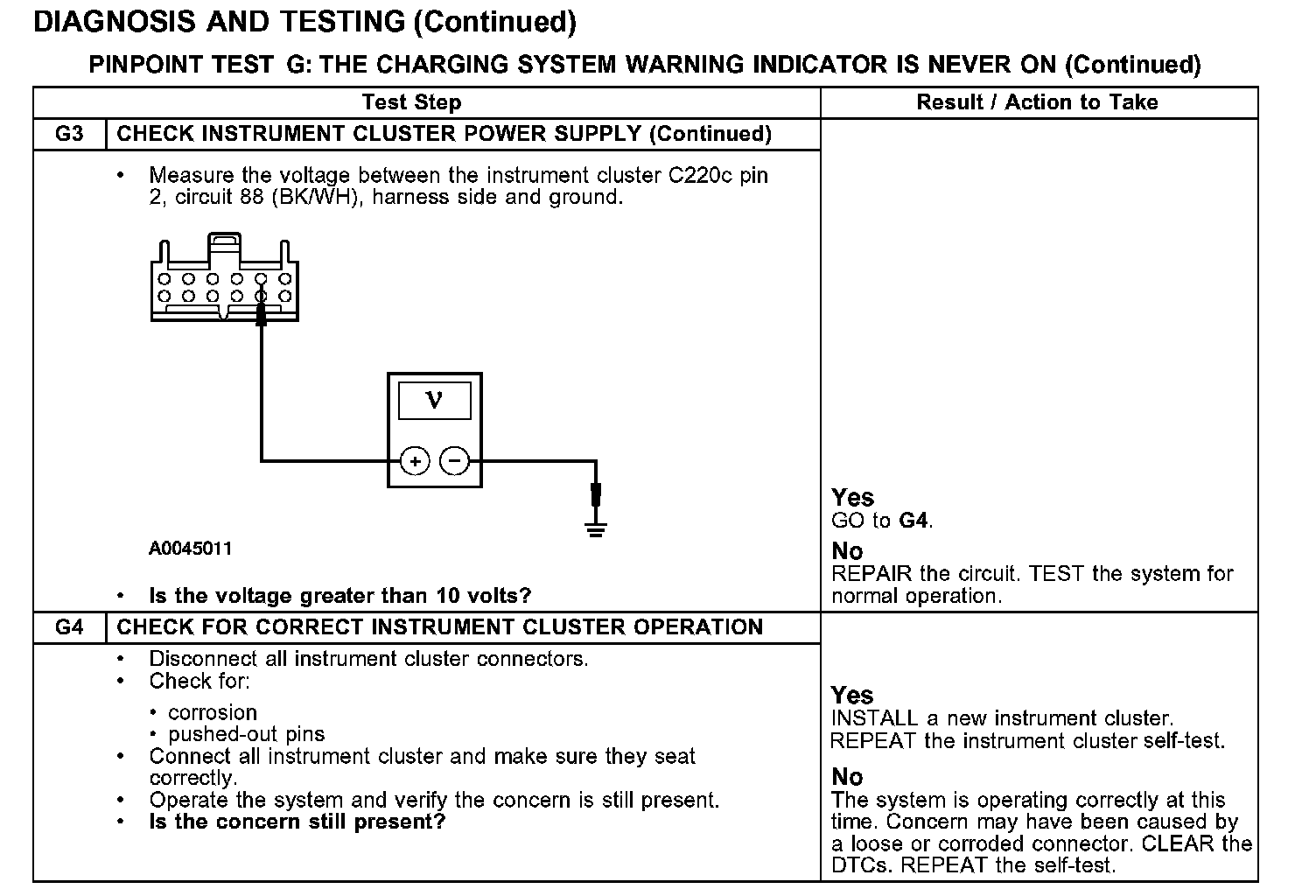

Test G3-G4:
