Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Electronic Cluster
>>
Test N
Test N
PINPOINT TEST N: THE HIGH BEAM INDICATOR IS NEVER ON

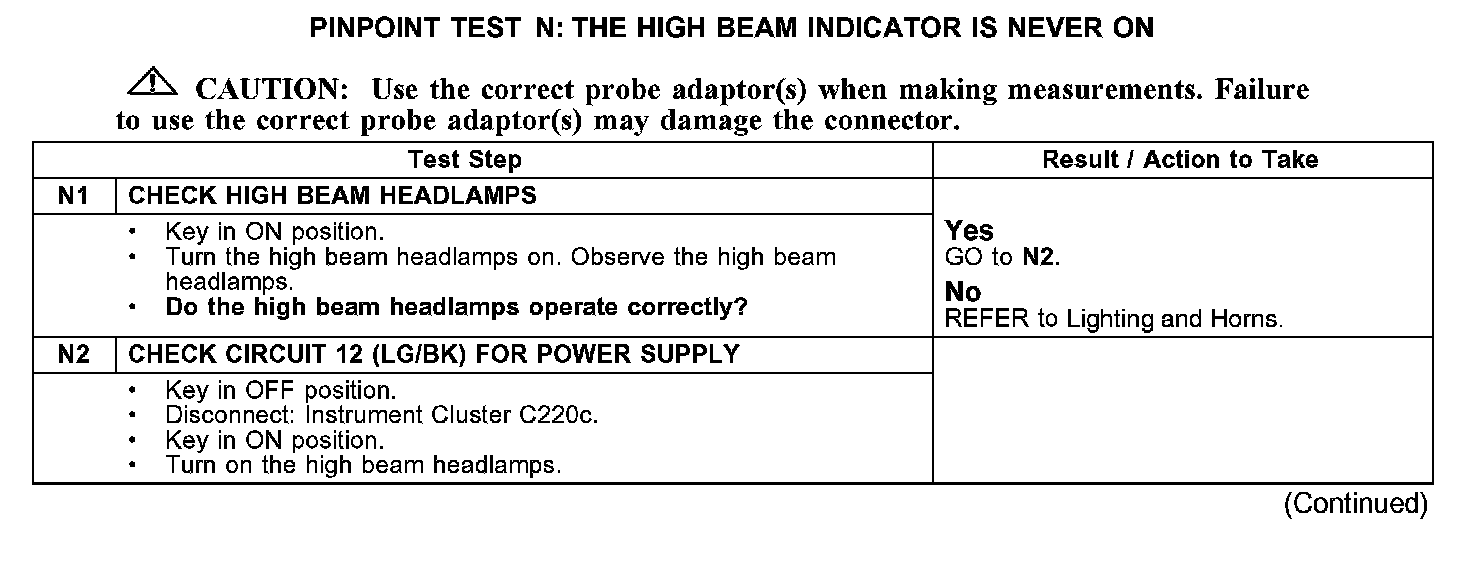

Test N1-N2:

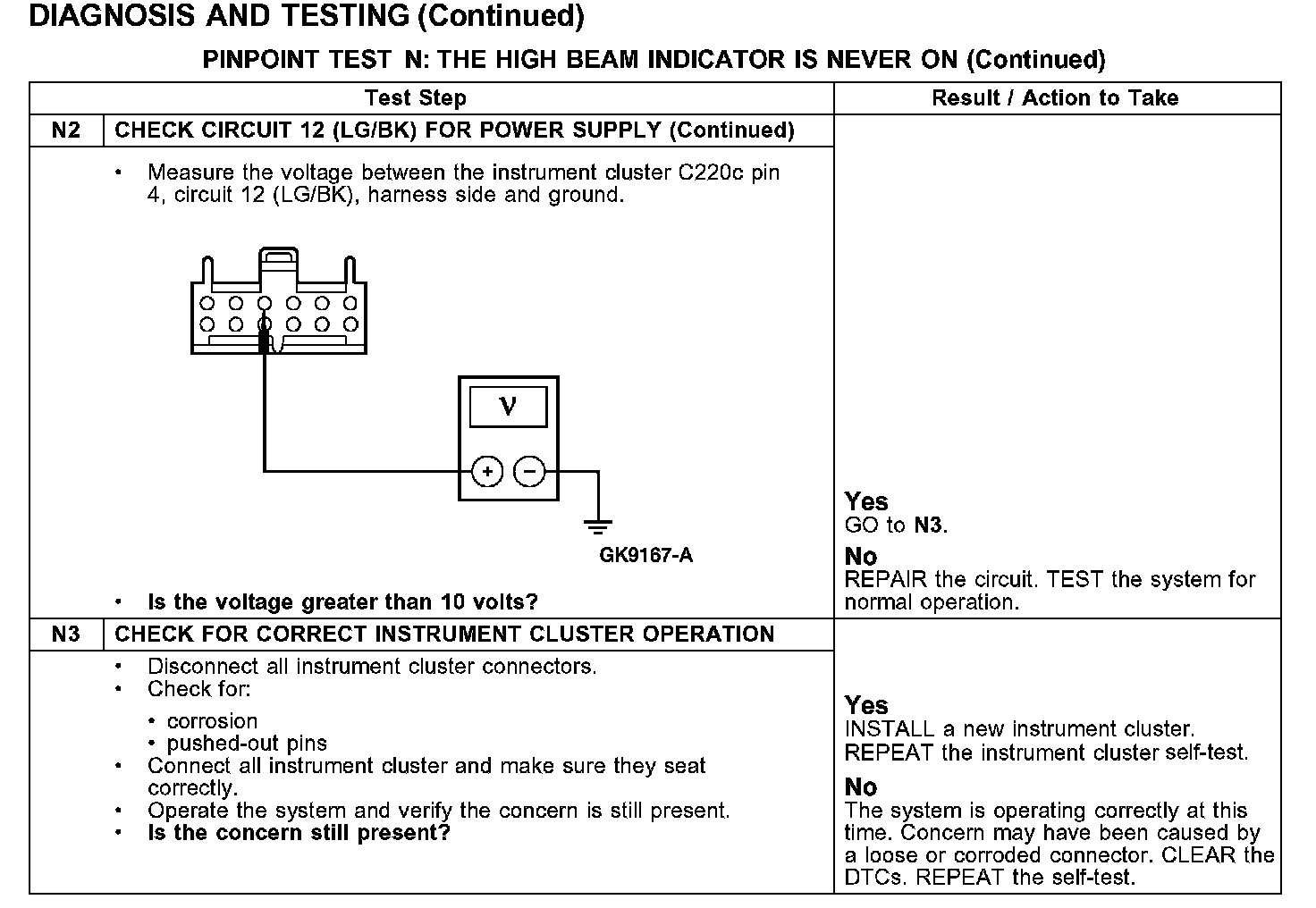

Test N2-N3:
