Diesel Data: Automotive Repair
Home >> Ford >> 2004 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test Q

Test Q

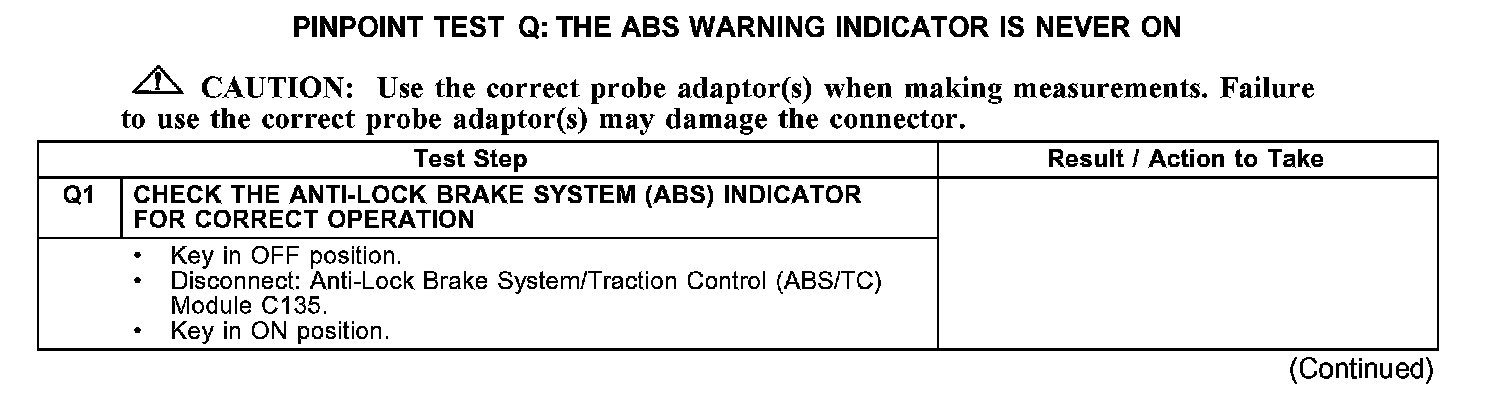

PINPOINT TEST Q: THE ABS WARNING INDICATOR IS NEVER ON


Test Q1:

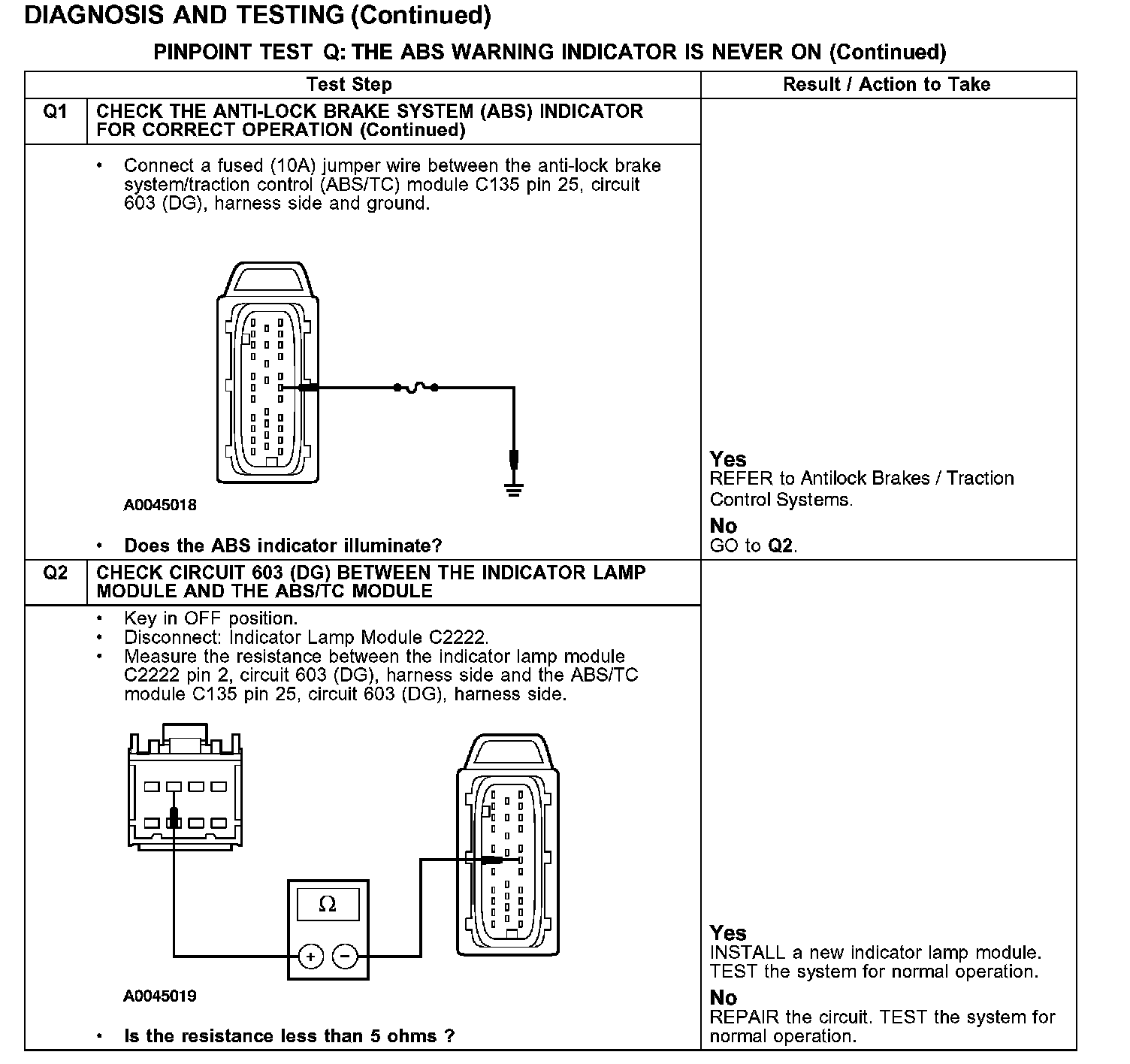

Test Q1-Q2:
