Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Electronic Cluster
>>
Test X
Test X

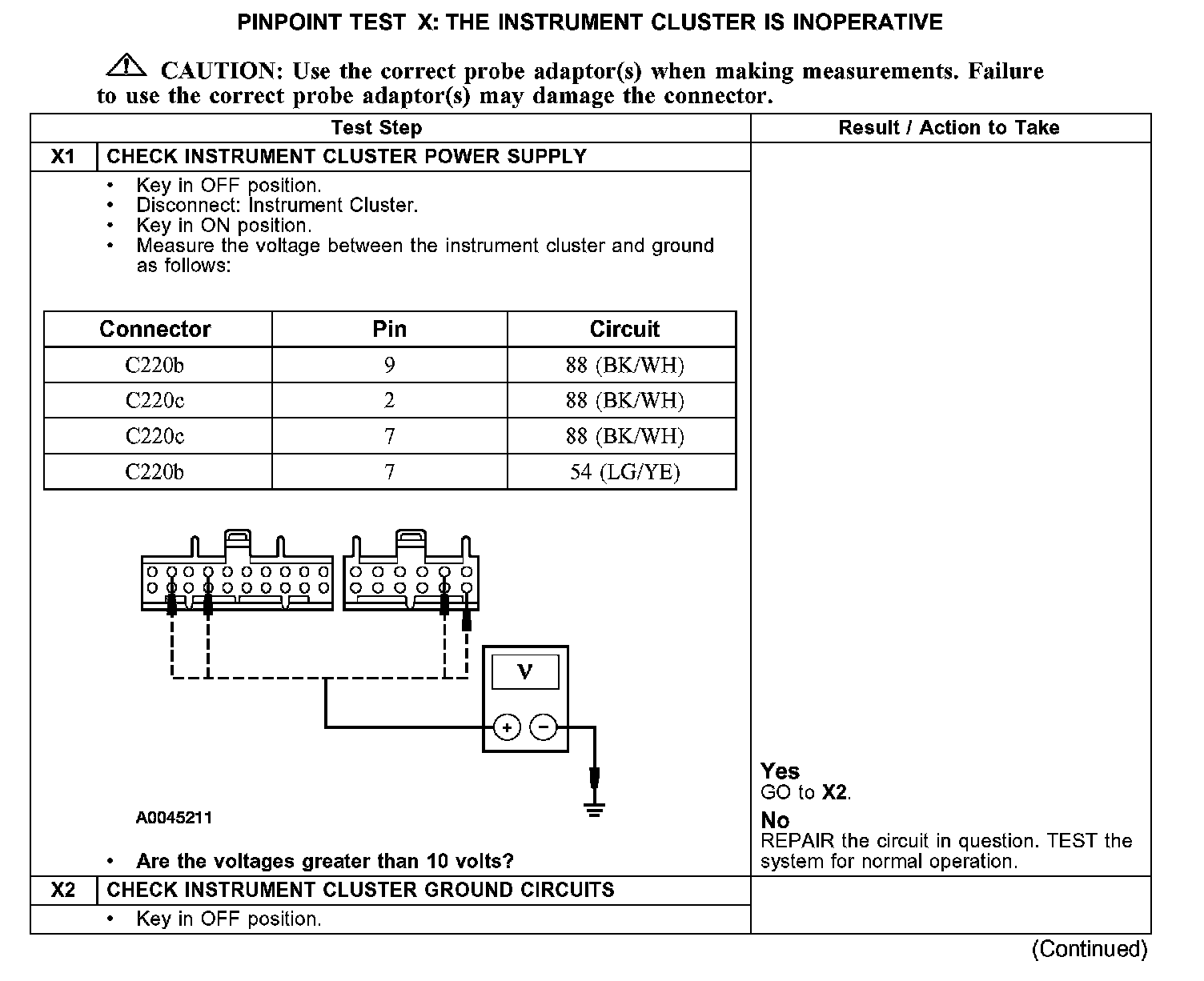

PINPOINT TEST X: THE INSTRUMENT CLUSTER IS INOPERATIVE
Test X1-X2:

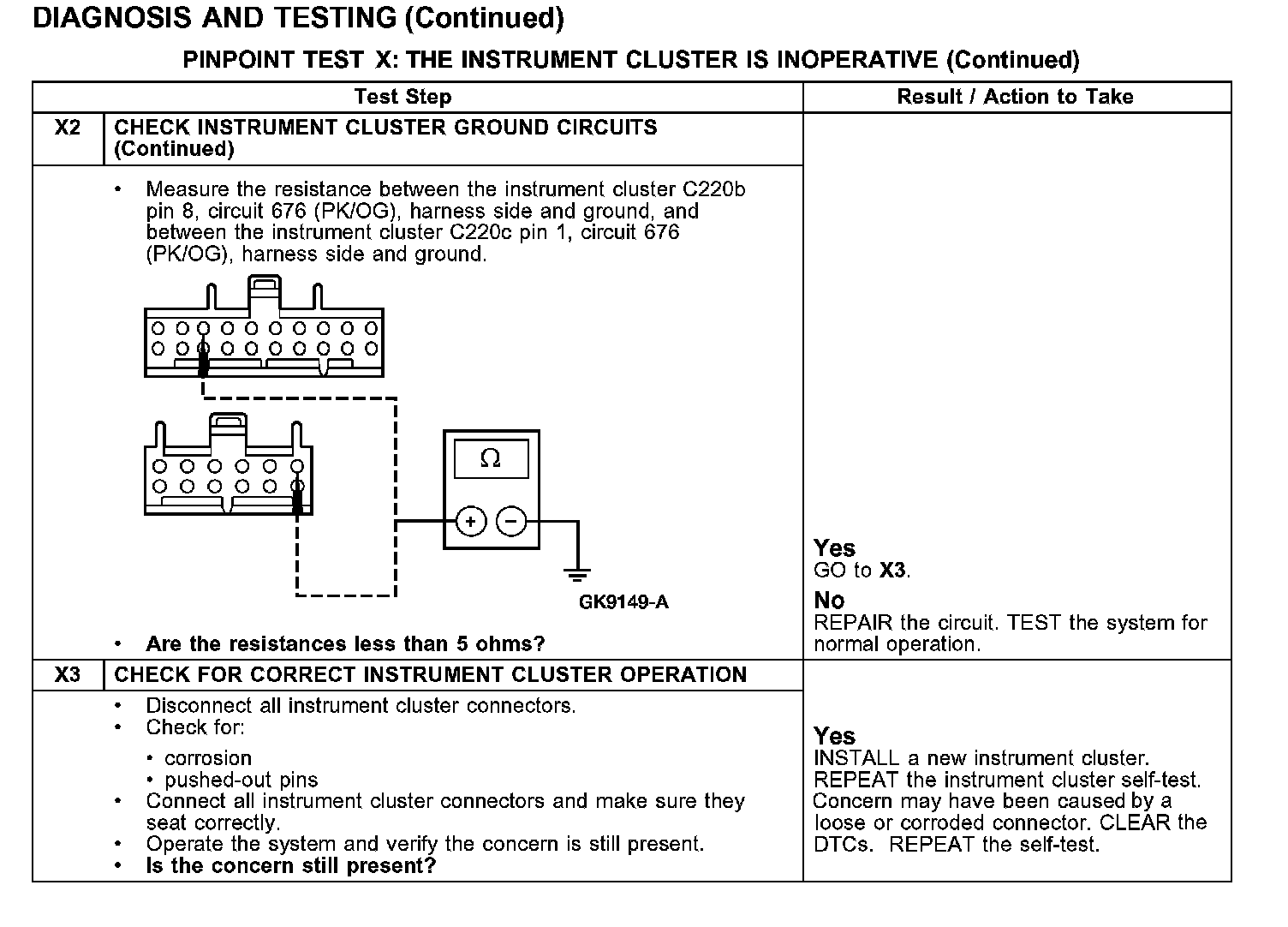

Test X2-X3:
