Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>
Test E
Test E
PINPOINT TEST E: THE STEERING WHEEL CONTROL SWITCH ILLUMINATION IS INOPERATIVE

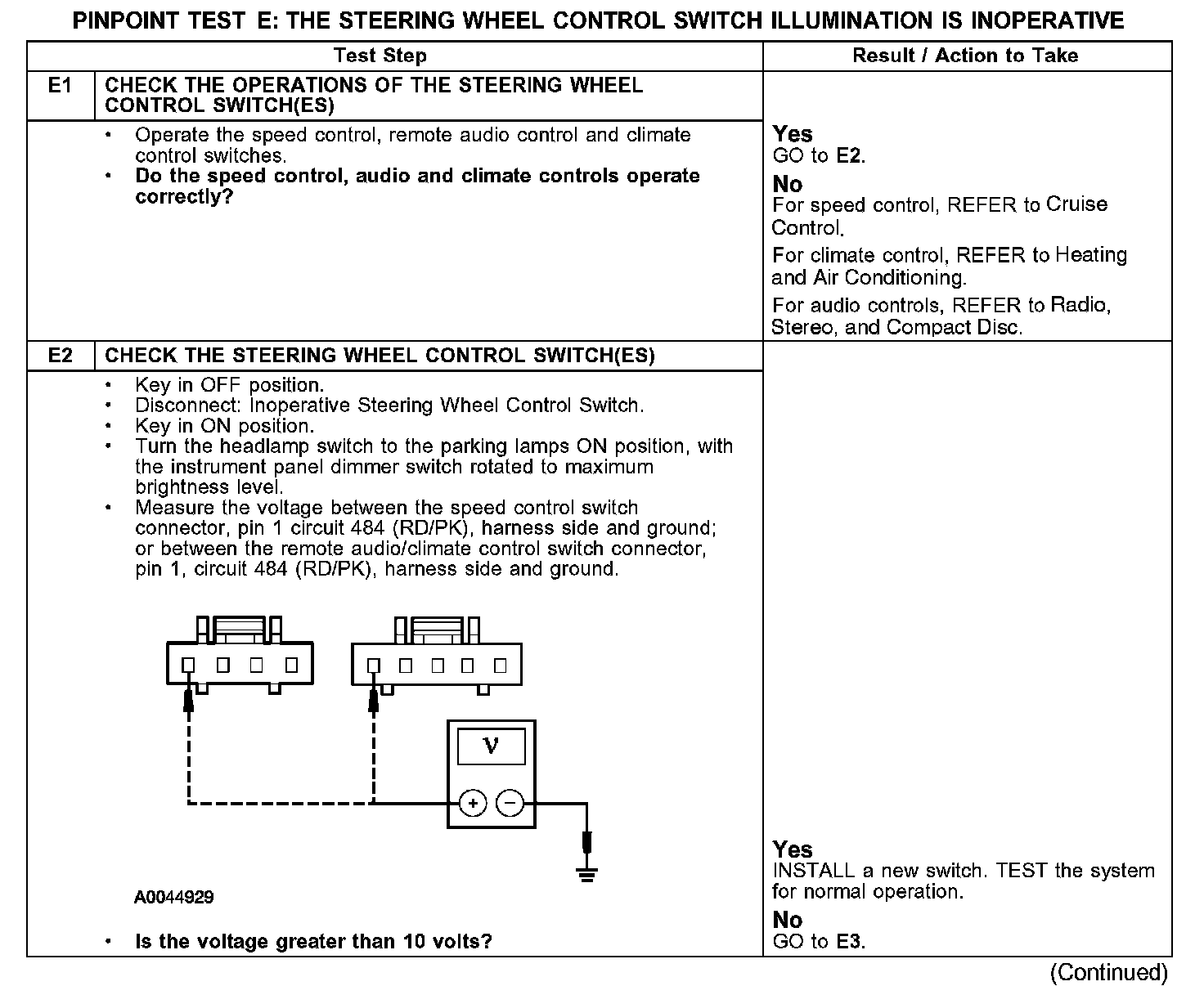

Test E1-E2:

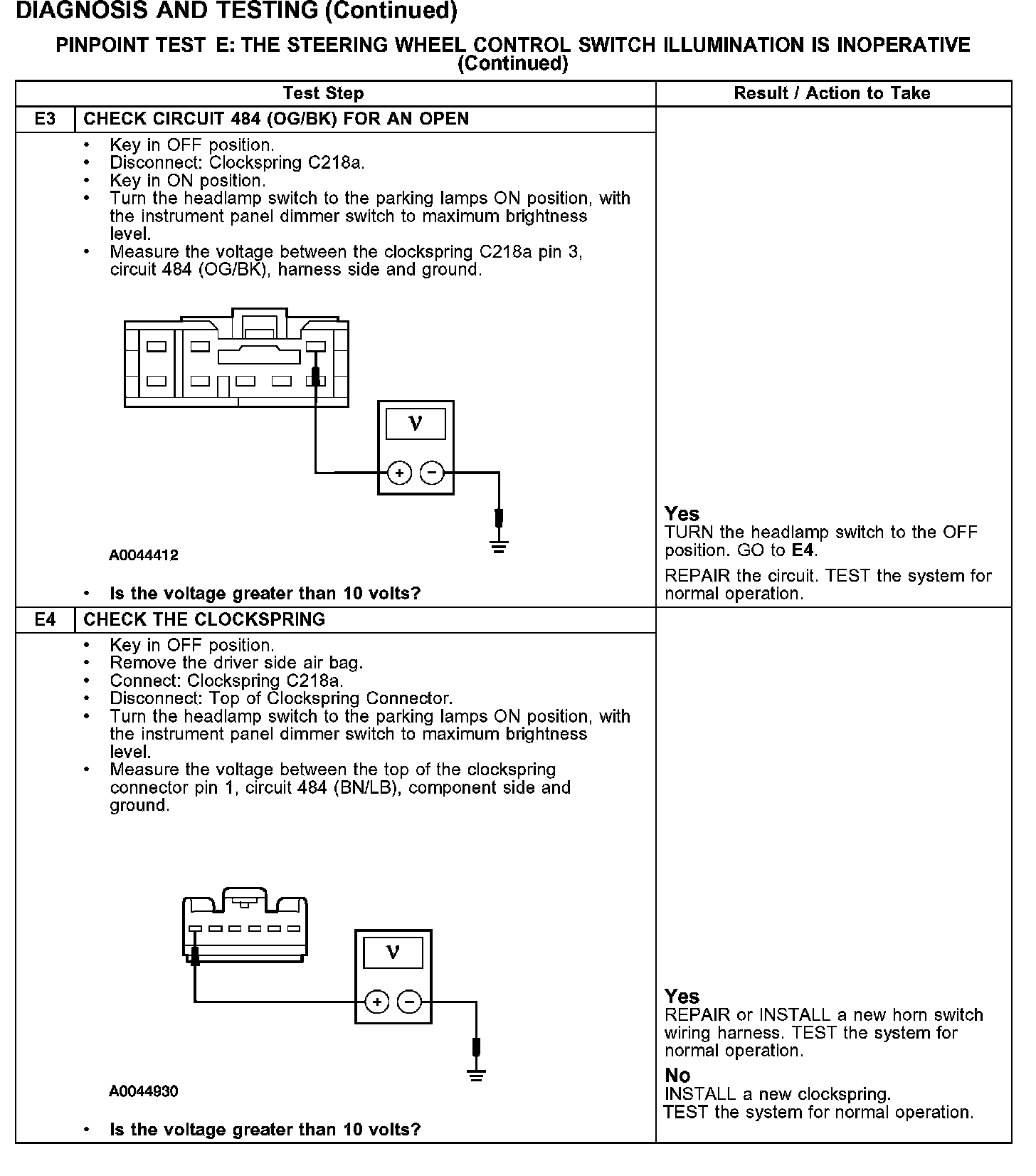

Test E3-E4:
