Home >> Ford >> 2004 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: THE INTERIOR LAMPS ARE INOPERATIVE

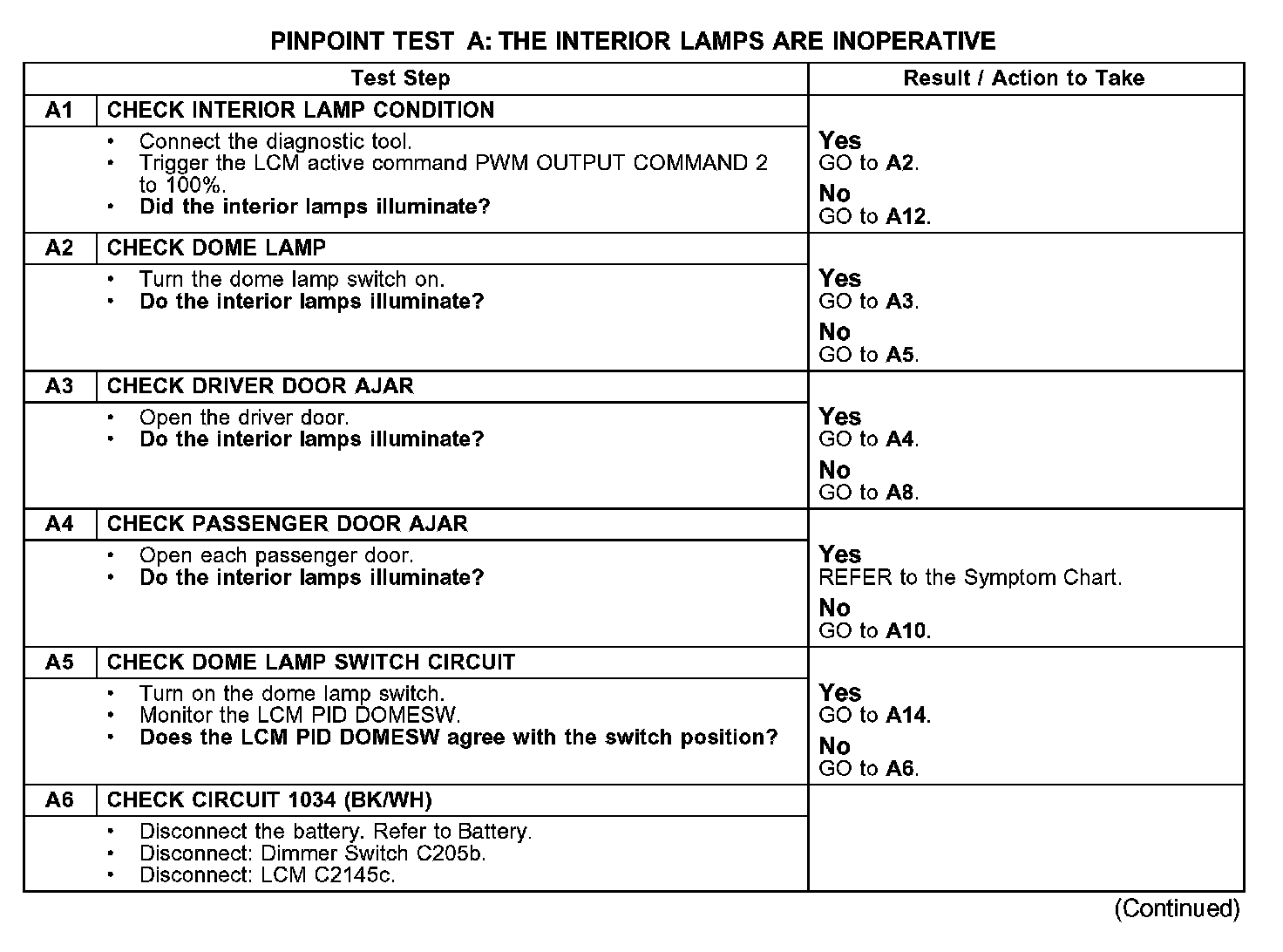

Test A1-A6:






Test A6-A9:

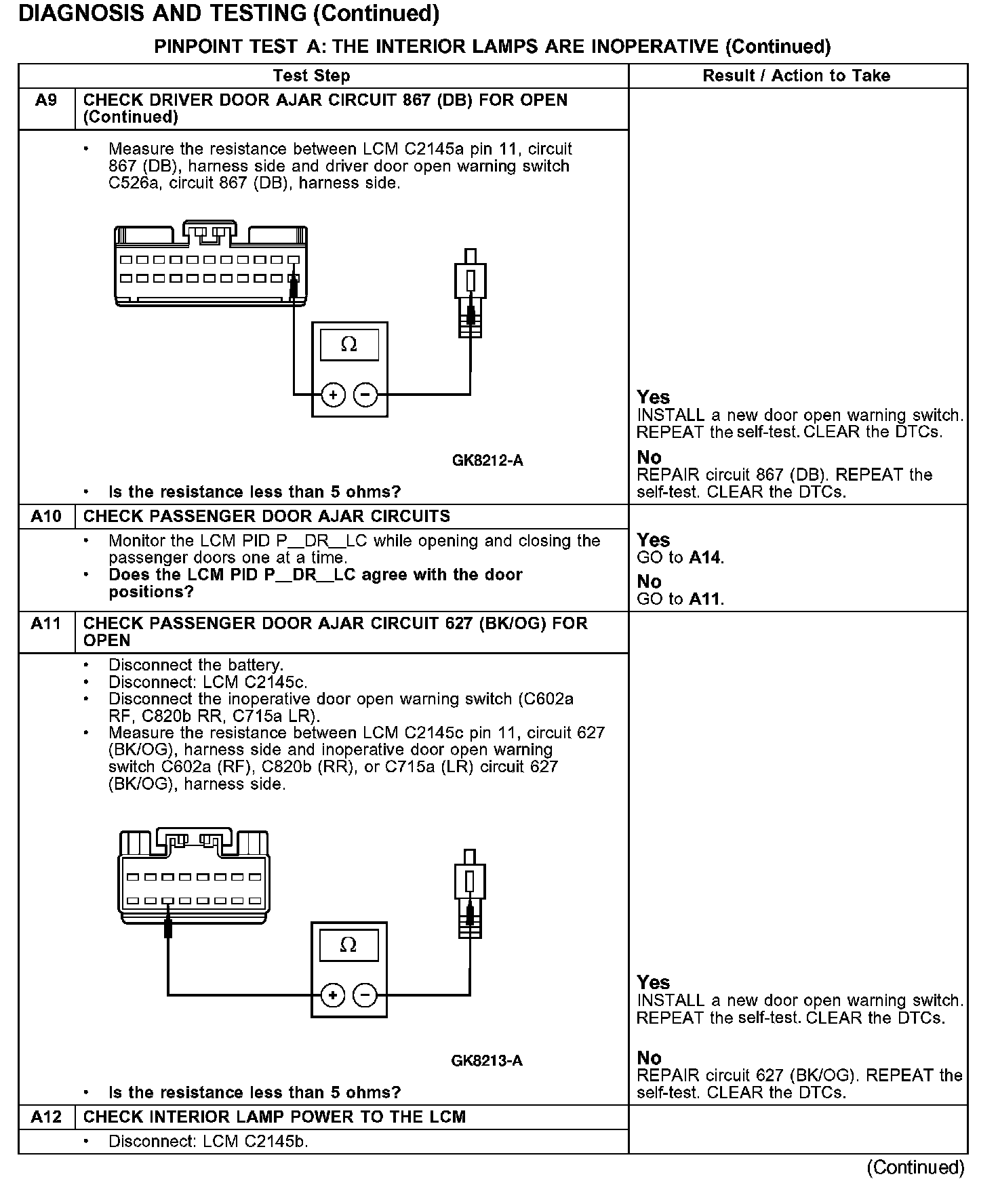

Test A9-A12:

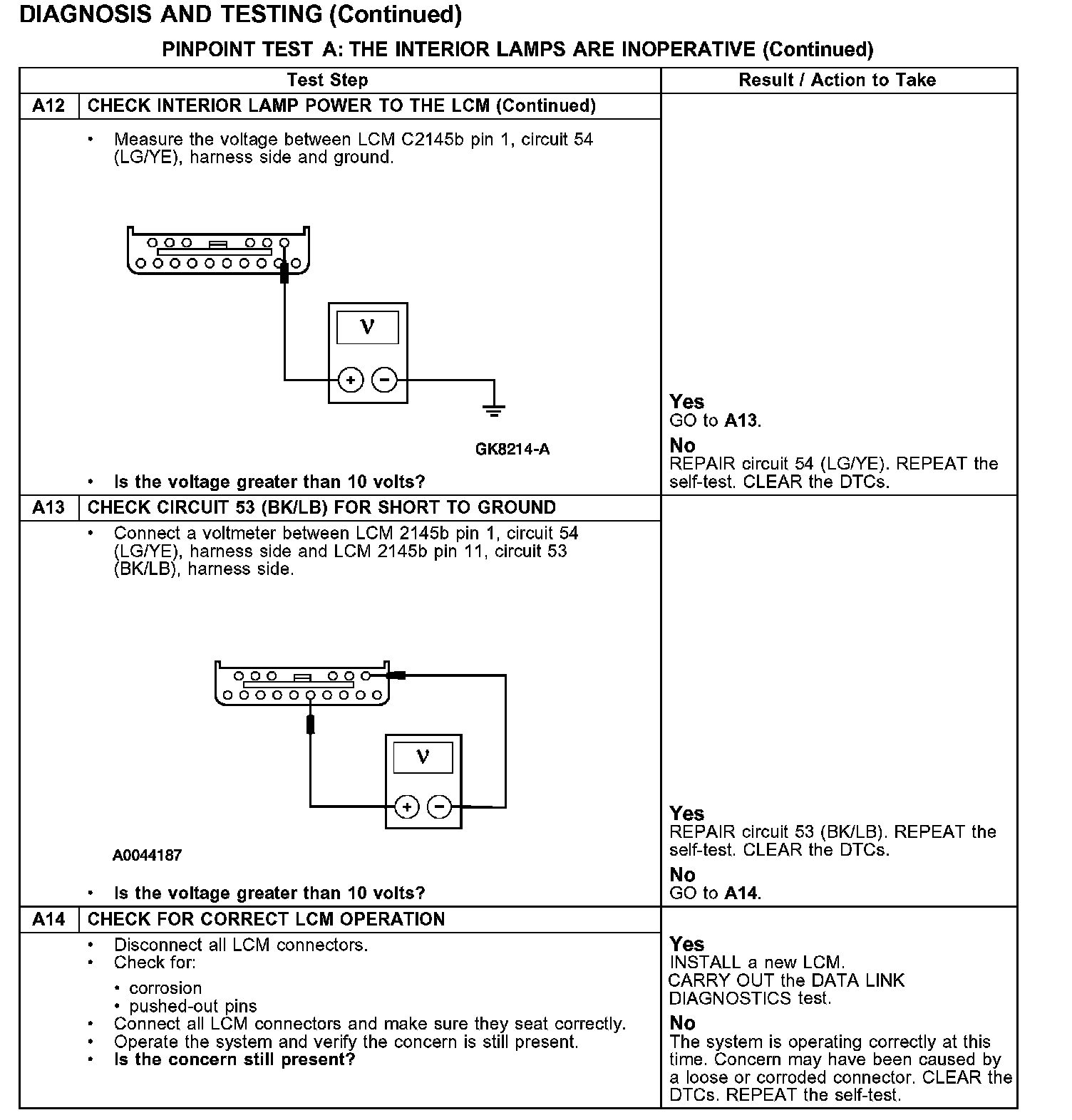

Test A12-A14:
