Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Autolamps
>>
Test E
Test E
PINPOINT TEST E: THE AUTOLAMPS ARE INOPERATIVE

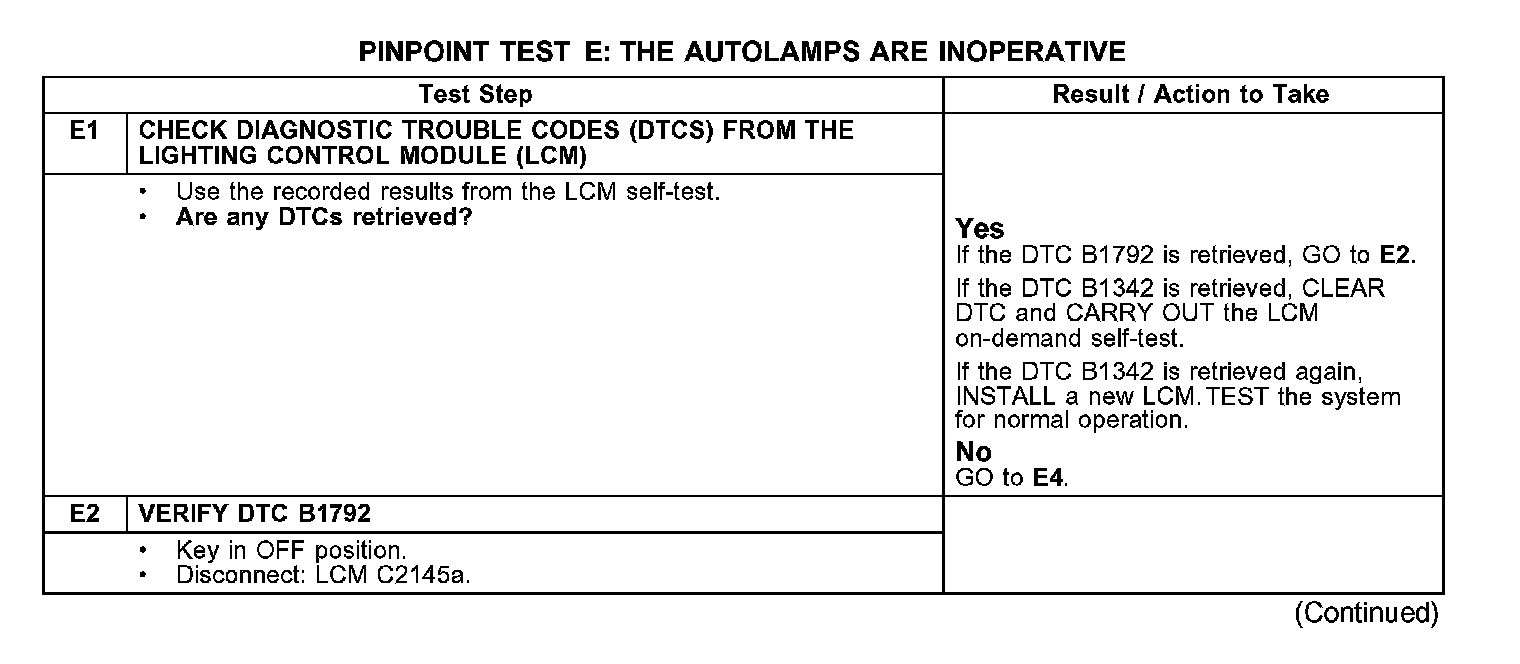

Test E1-E2:

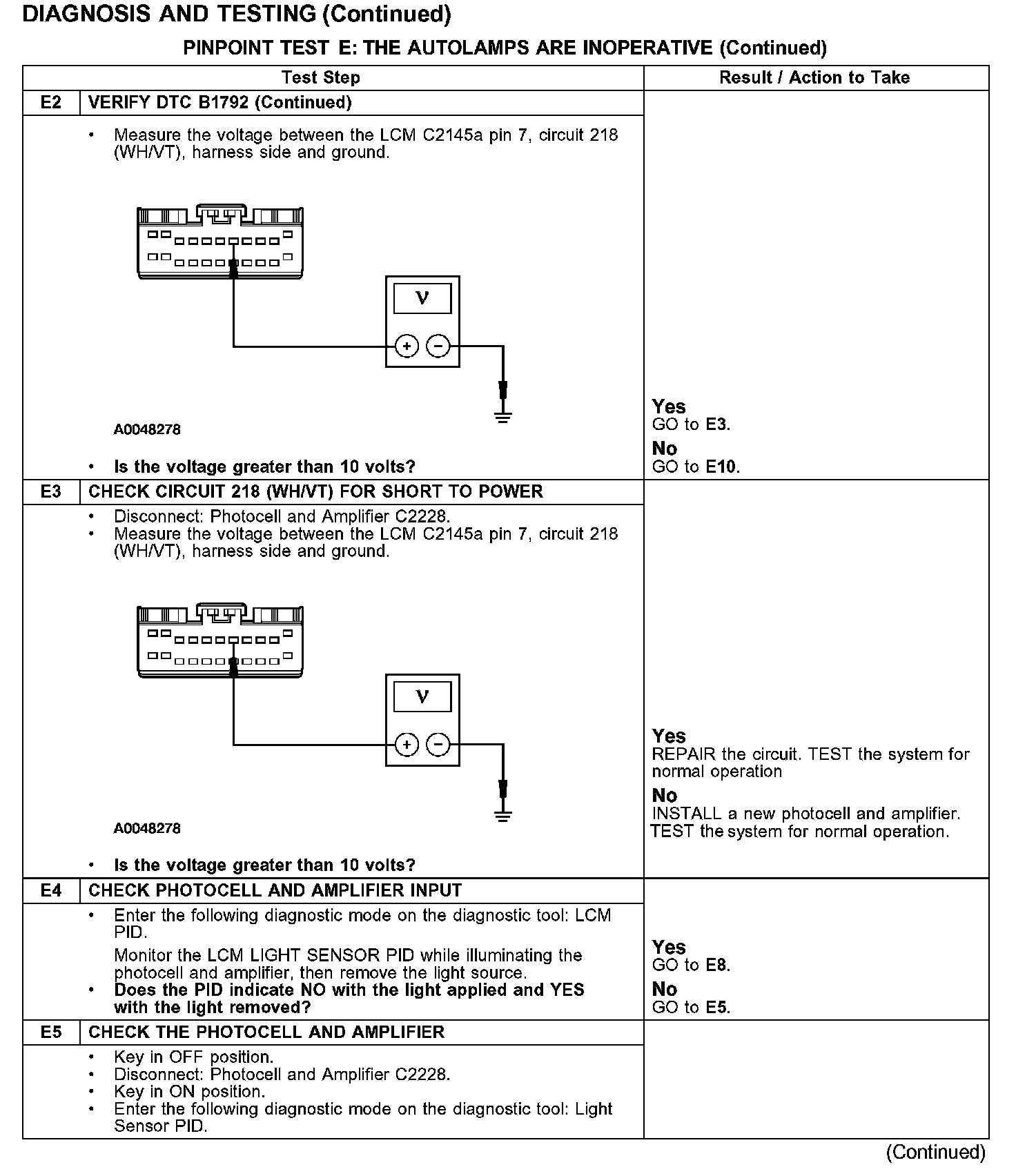

Test E2-E5:

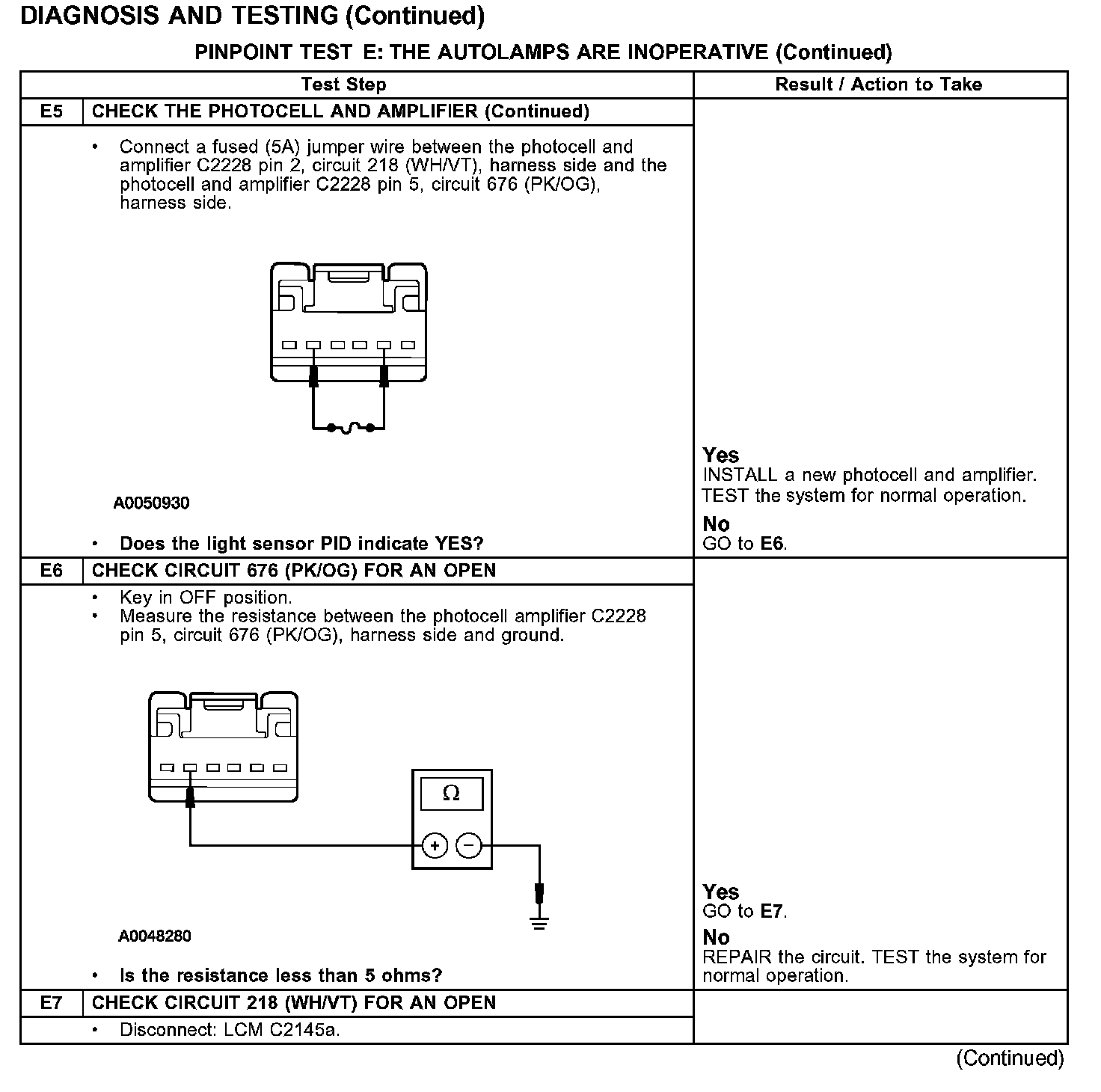

Test E5-E7:

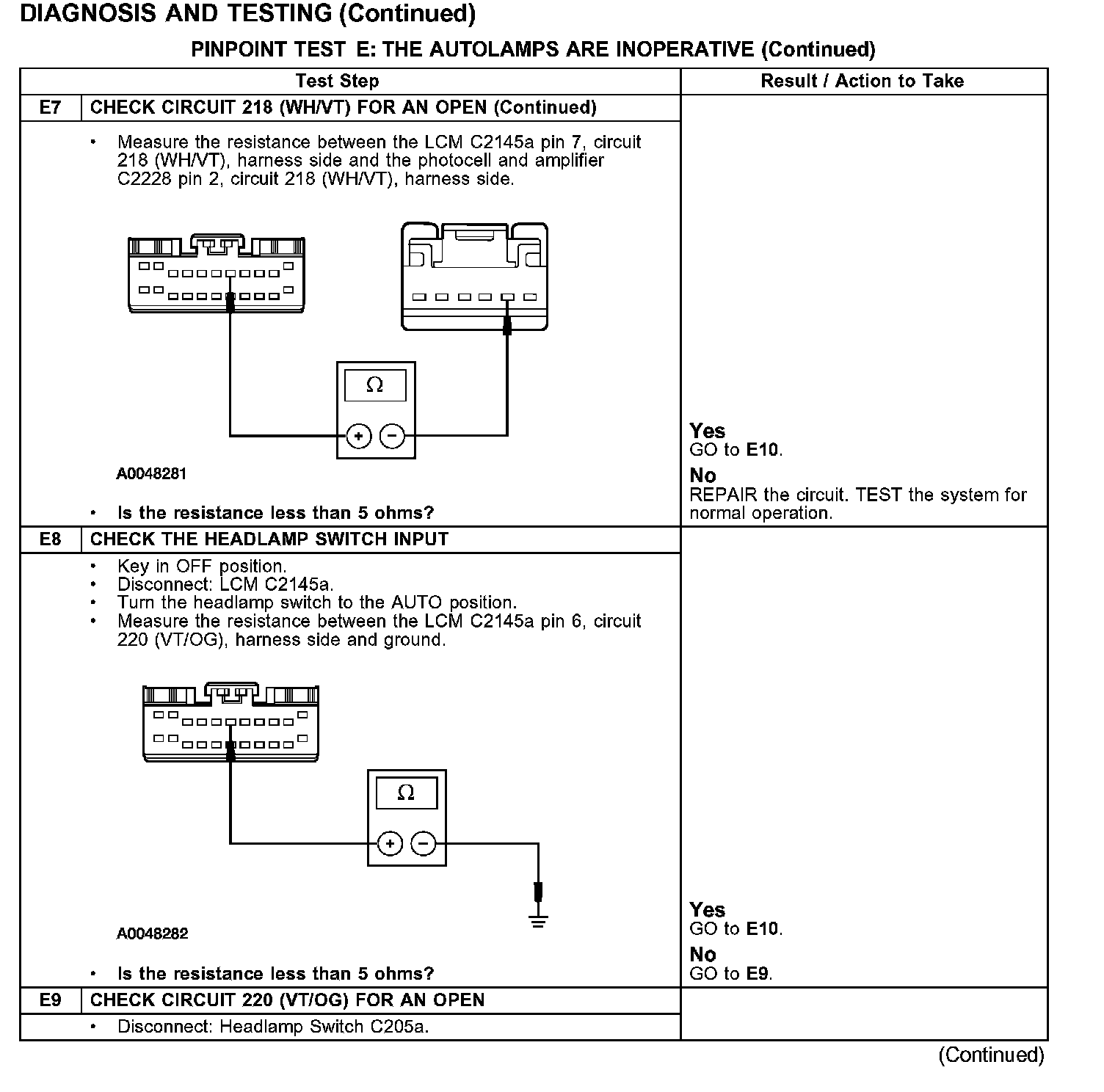

Test E7-E9:

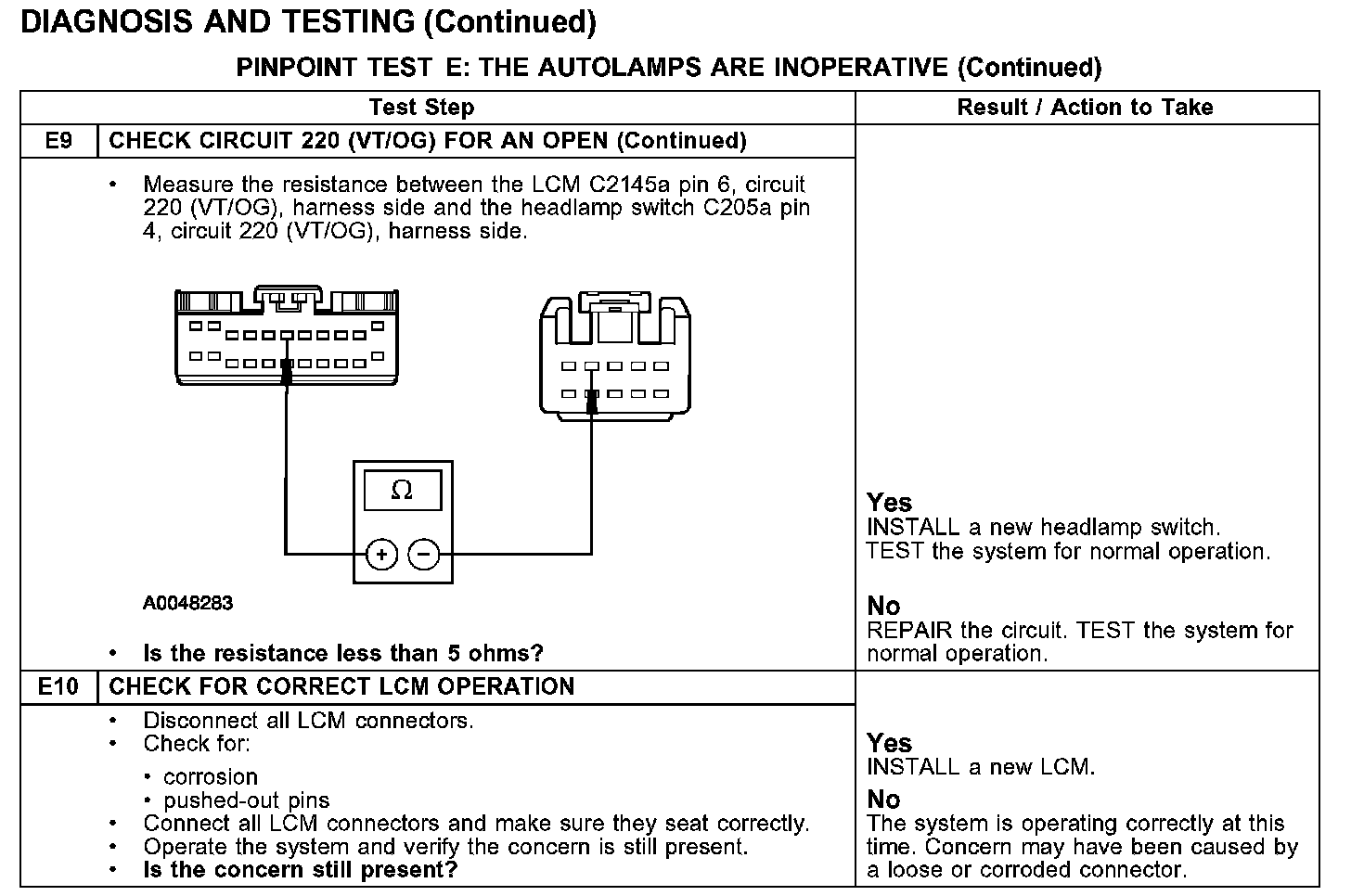

Test E9-E10:
