Diesel Data: Automotive Repair

Home >> Ford >> 2004 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Autolamps

Autolamps

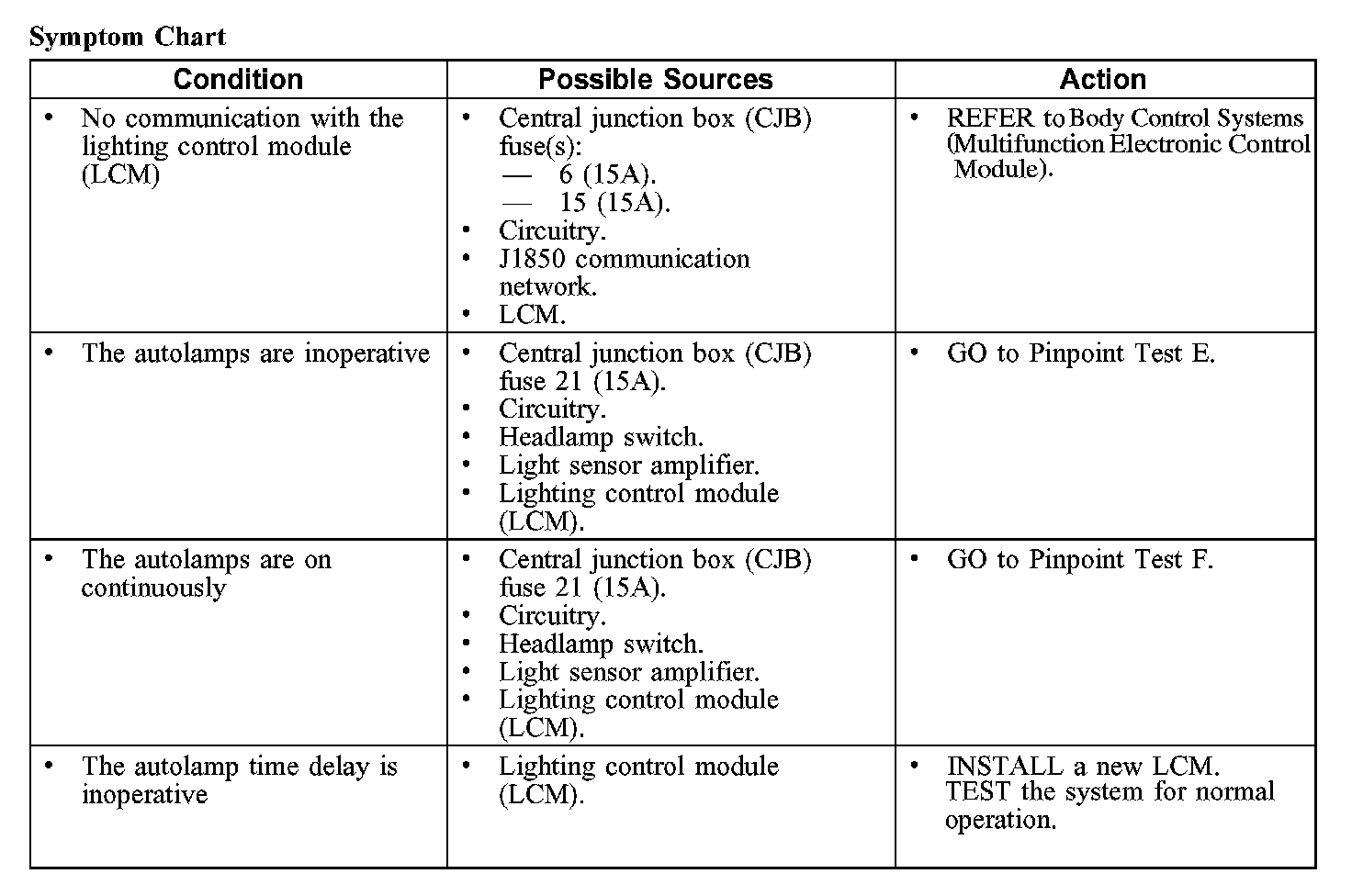

Symptom Chart, Part 1:

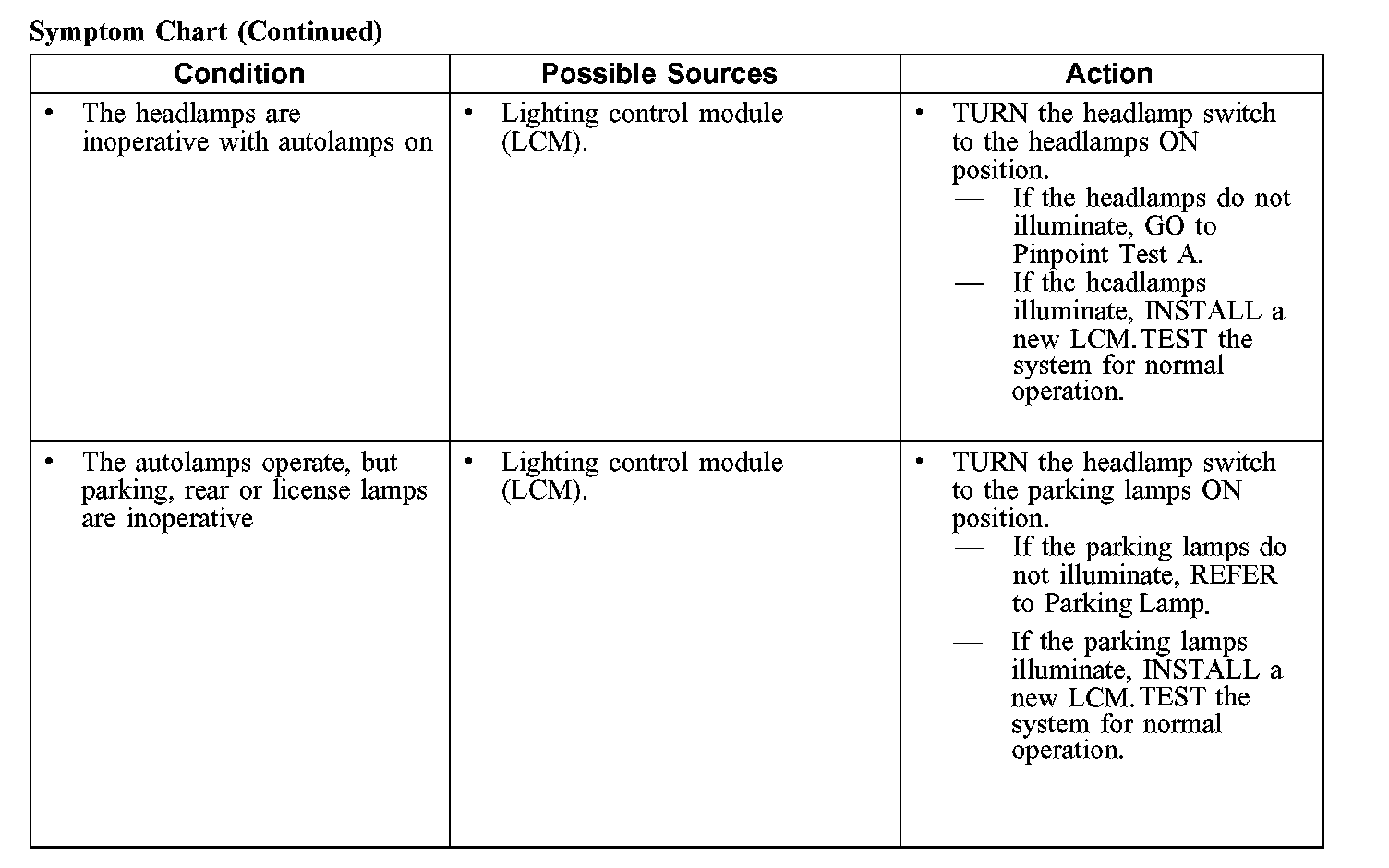

Symptom Chart, Part 2:
