Tail Lamp: Service and Repair
REAR LAMP ASSEMBLYREMOVAL

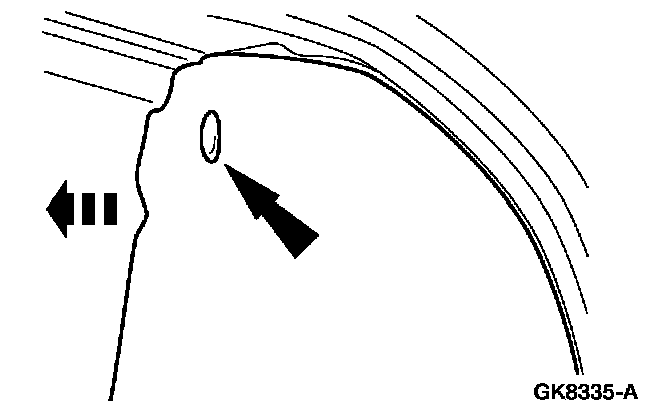

1. Remove the pin-type retainer and position the luggage compartment trim aside.

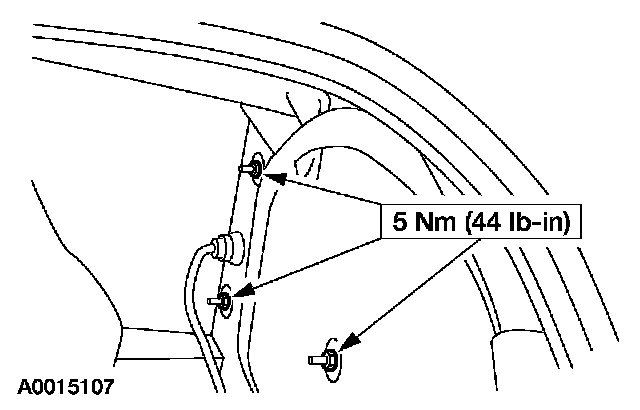

2. Remove the nuts and the rear lamp assembly.
- Disconnect the electrical connectors.
INSTALLATION
1. To install, reverse the removal procedure.
