Home >> Ford >> 2004 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Test V

Test V

PINPOINT TEST V: THE PUBLIC SAFETY LIGHTING COMPONENT DOES NOT OPERATE CORRECTLY - ALTERNATING FLASHING HEADLAMPS

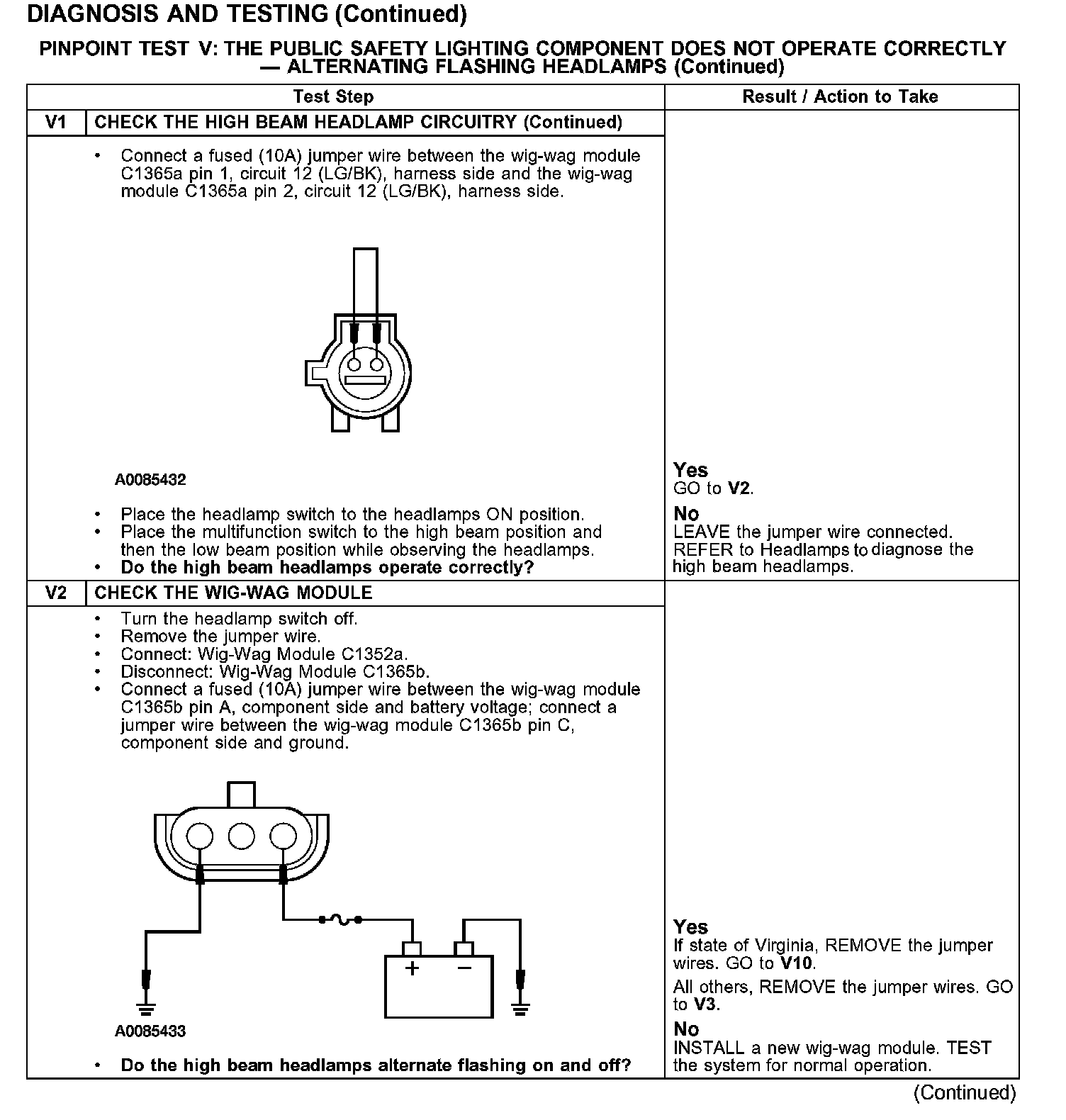

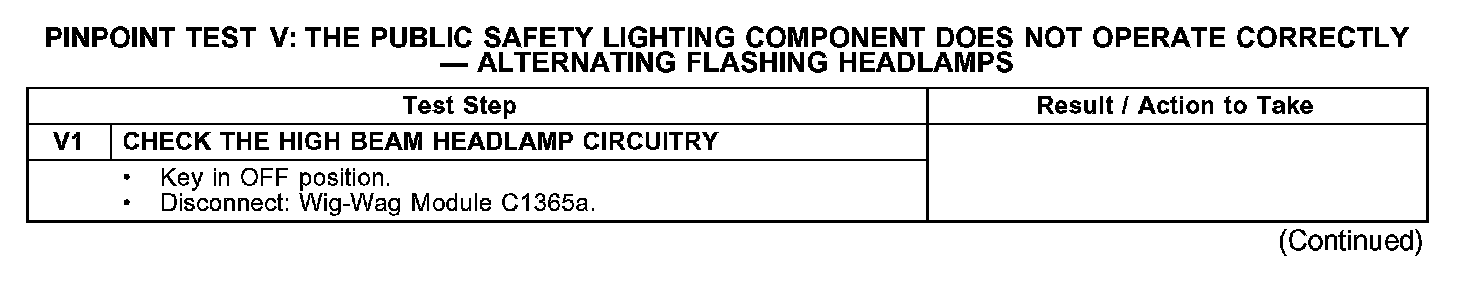

Test V1:






Test V1-V2:

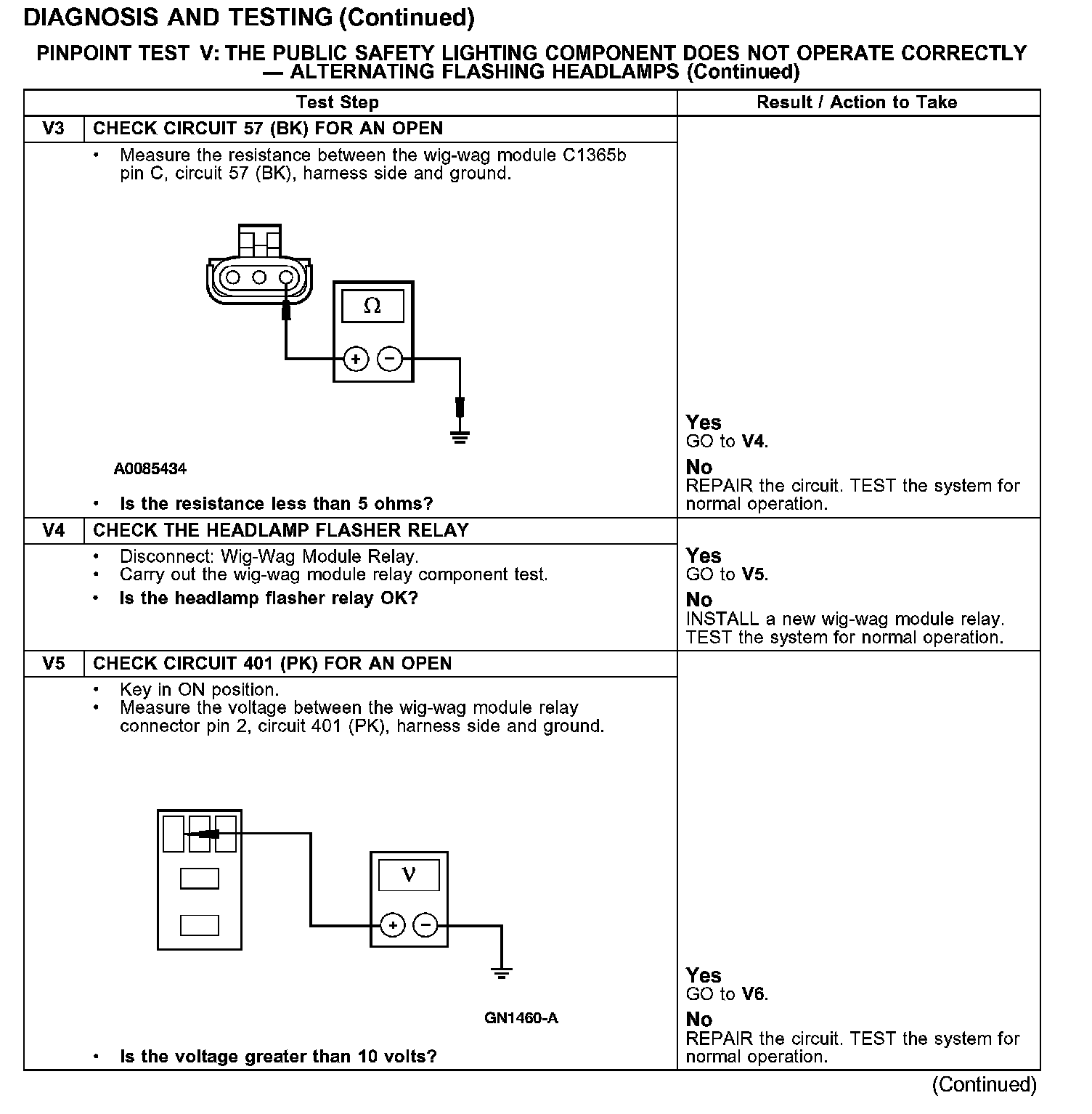

Test V3-V5:

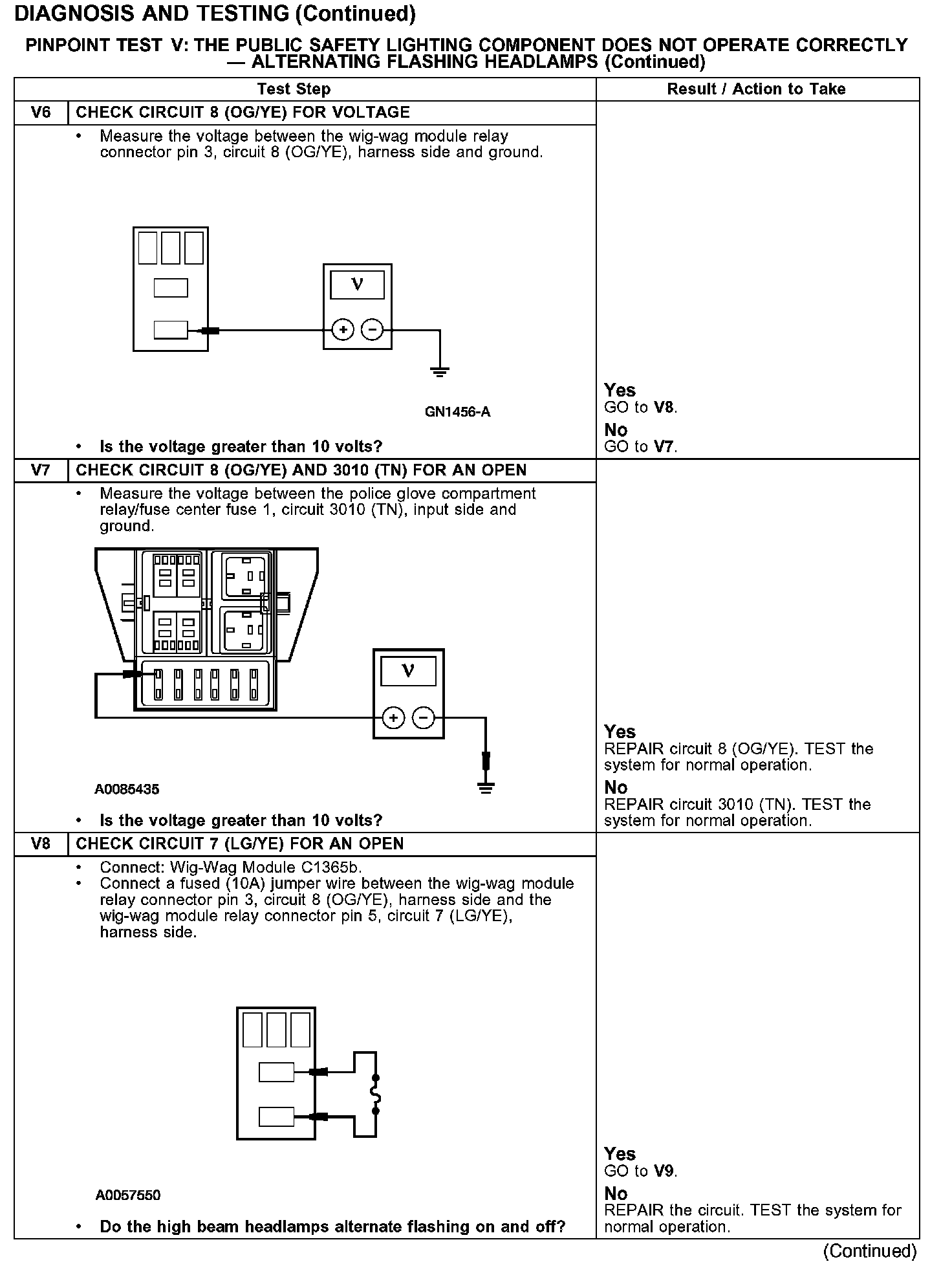

Test V6-V8:

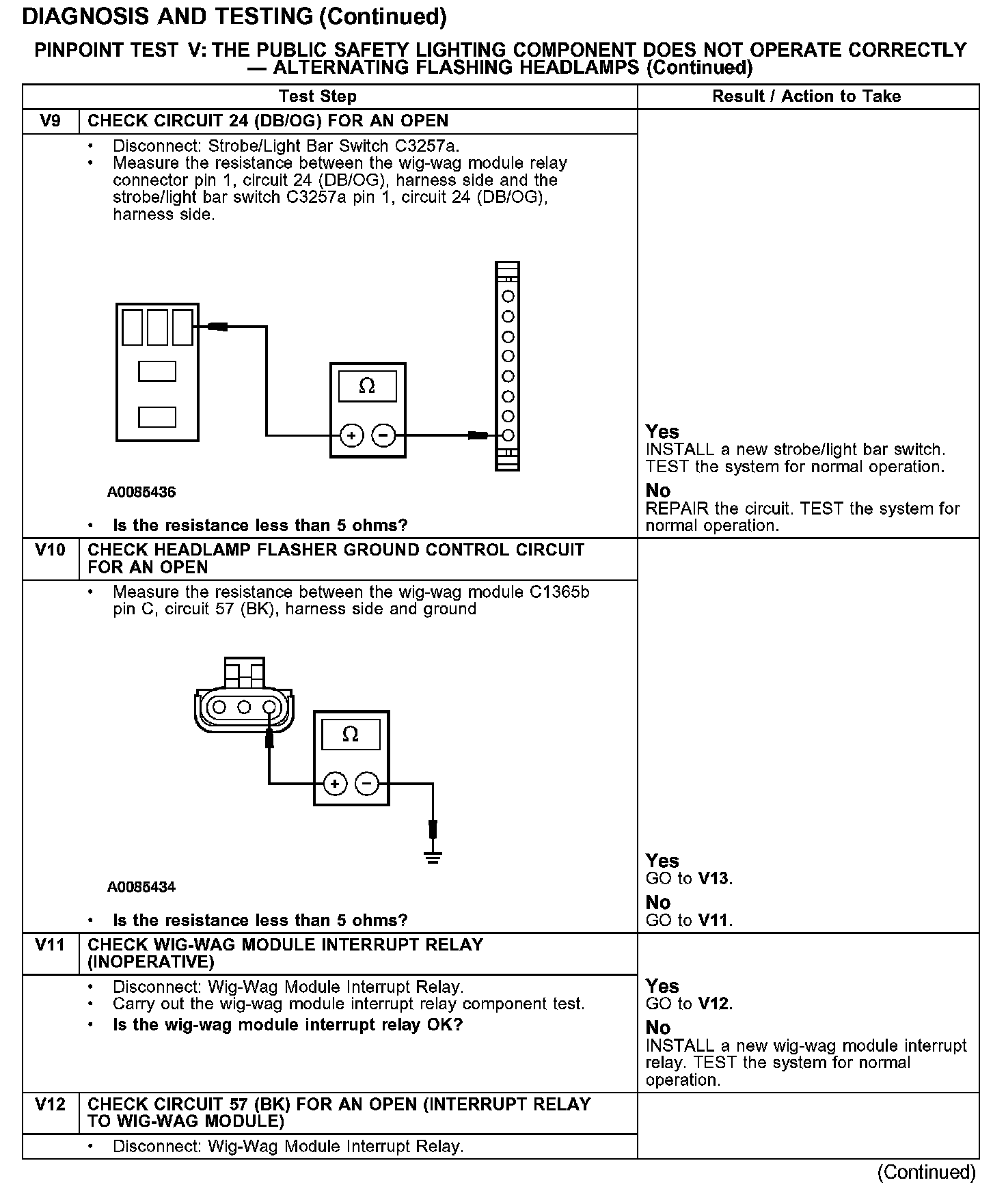

Test V9-V12:

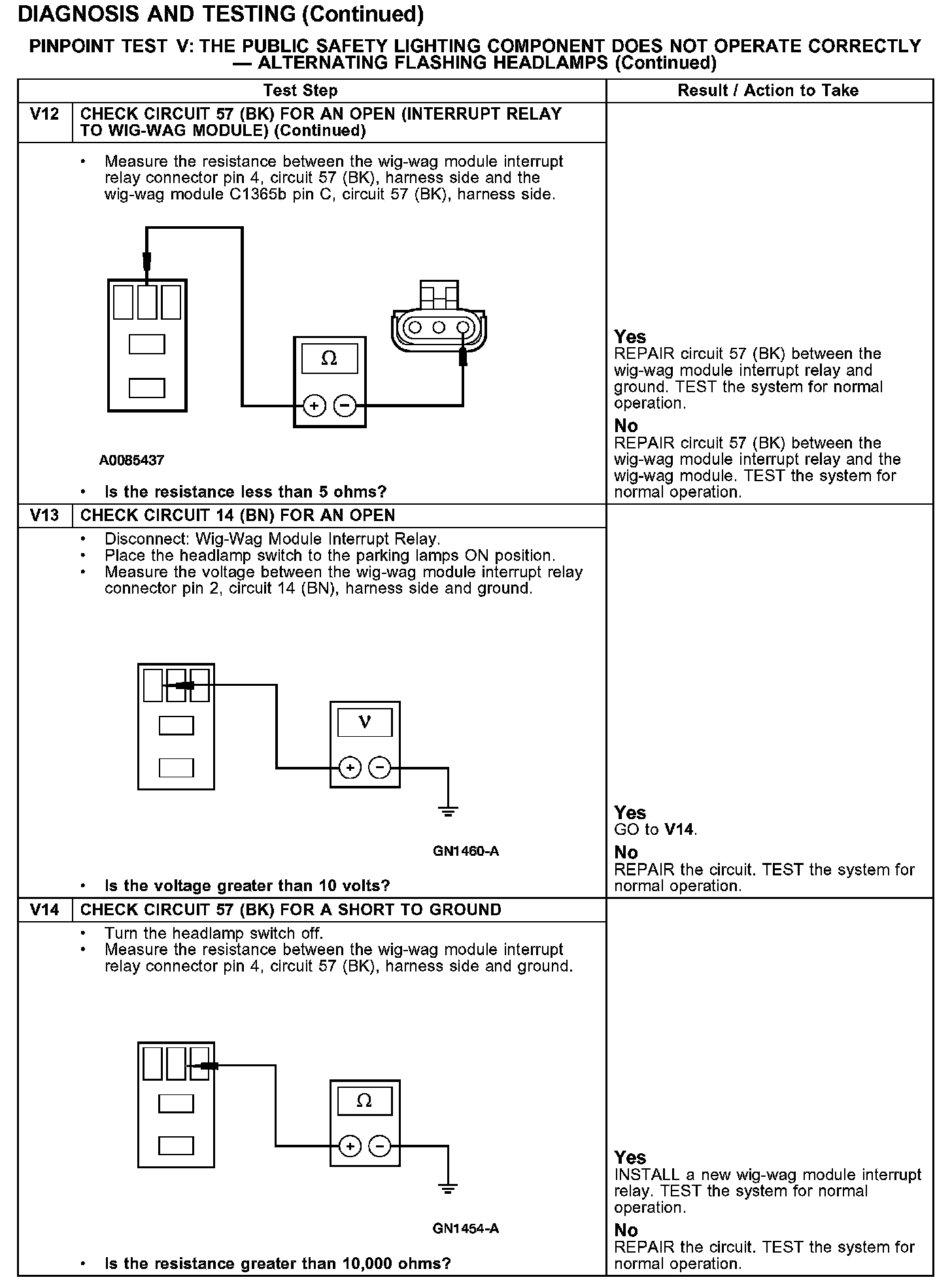

Test V12-V14:
