Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation

NOTE: 4.6L (2V) shown, 4.6L (4V) similar.

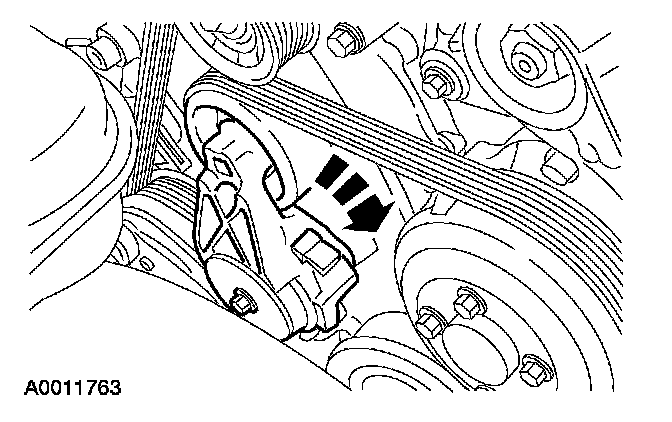

1. Rotate the tensioner clockwise and remove the drive belt.
2. To install, reverse the removal procedure.
^ Refer to Component Locations for drive belt routing.
