PINPOINT TEST C: THE DRIVER DOOR MODULE (DDM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

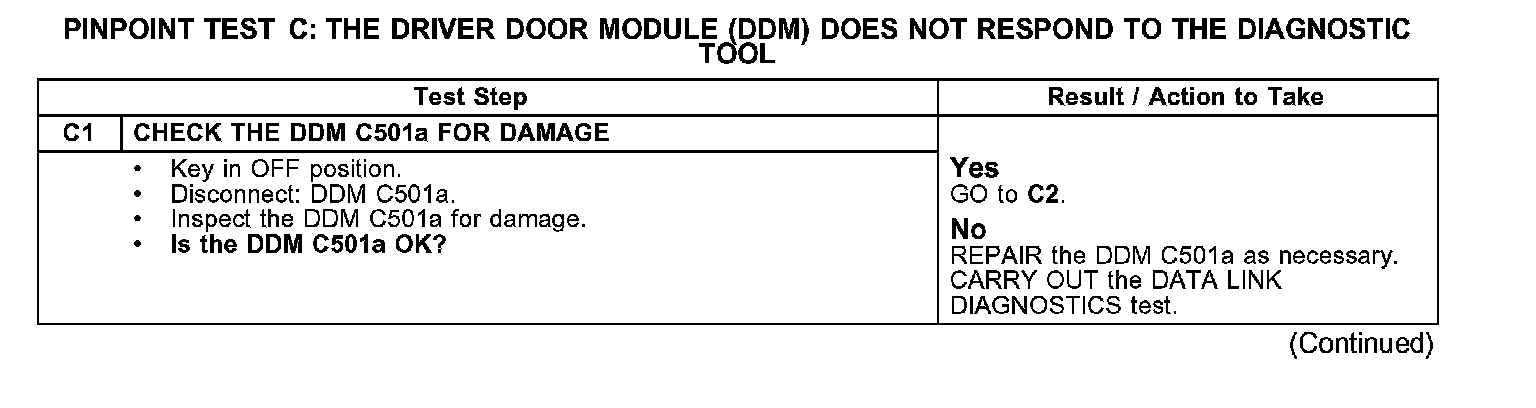

Test C1:

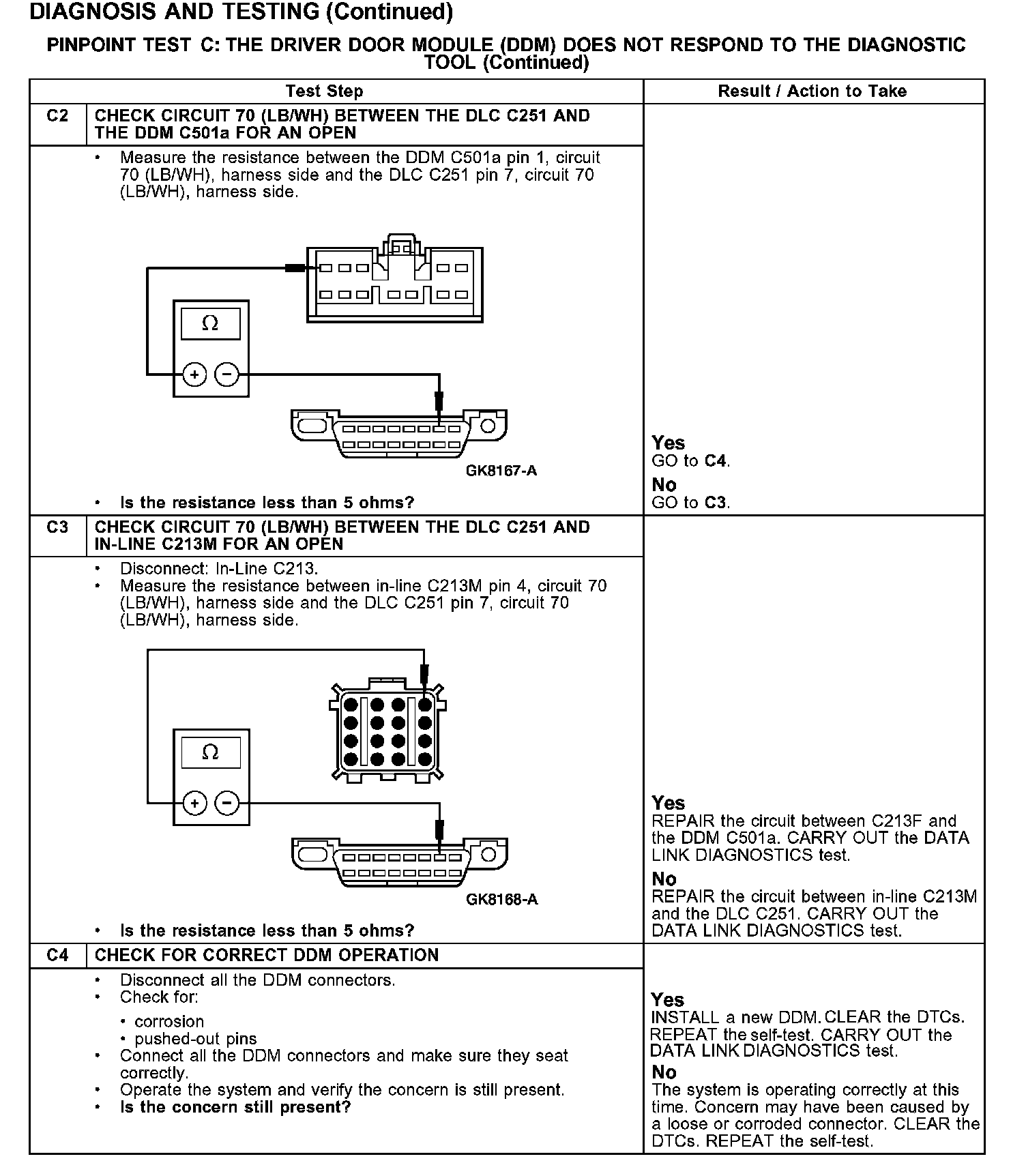

Test C2-C4:
