Evaporative System Service Port: Service and Repair

EVAPORATIVE EMISSION TEST PORT

REMOVAL

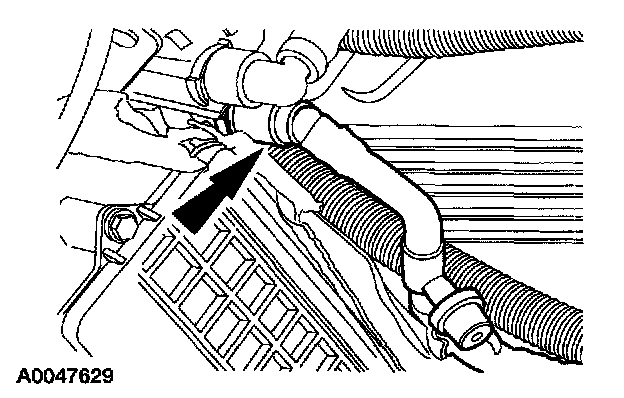

1. Disconnect the evaporative emission test port at the evaporative emission (EVAP) canister purge valve.







2. Remove the evaporative emission test port by disconnecting at the EVAP canister purge outlet tube.

INSTALLATION
1. To install, reverse the removal procedure.
- Leak test the system. Evaporative Emission System Leak Test
- Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
