Home >> Ford >> 2004 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Active Check Module >> Diagrams

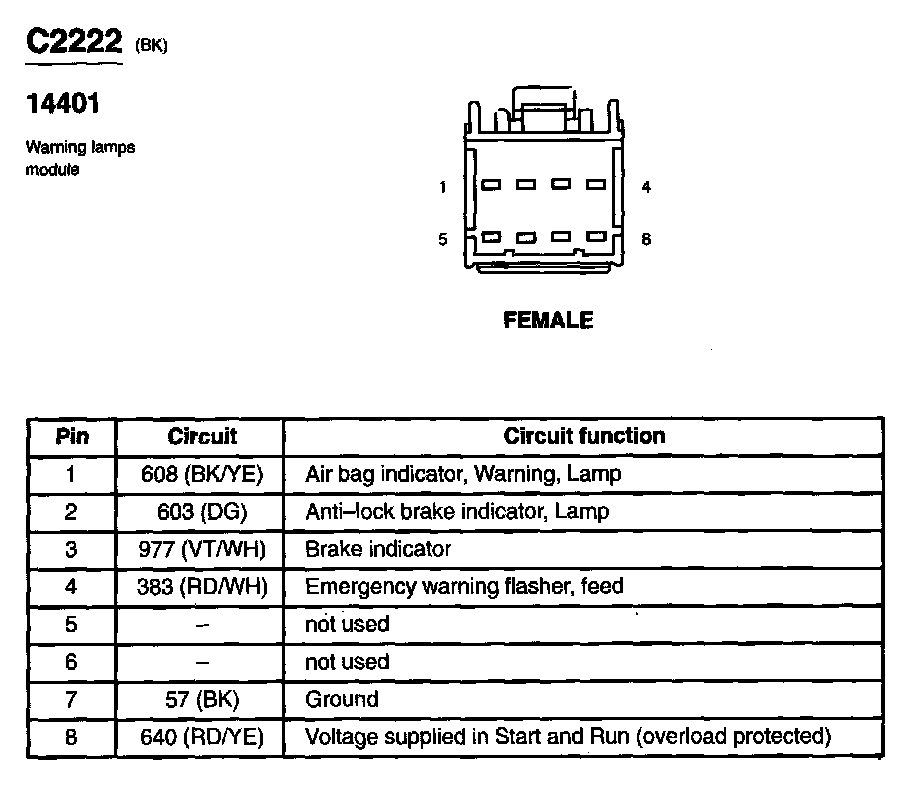

Active Check Module: Diagrams
