Home >> Ford >> 2004 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> Test L

Test L

PINPOINT TEST L:THE COMPRESSOR IS INOPERATIVE

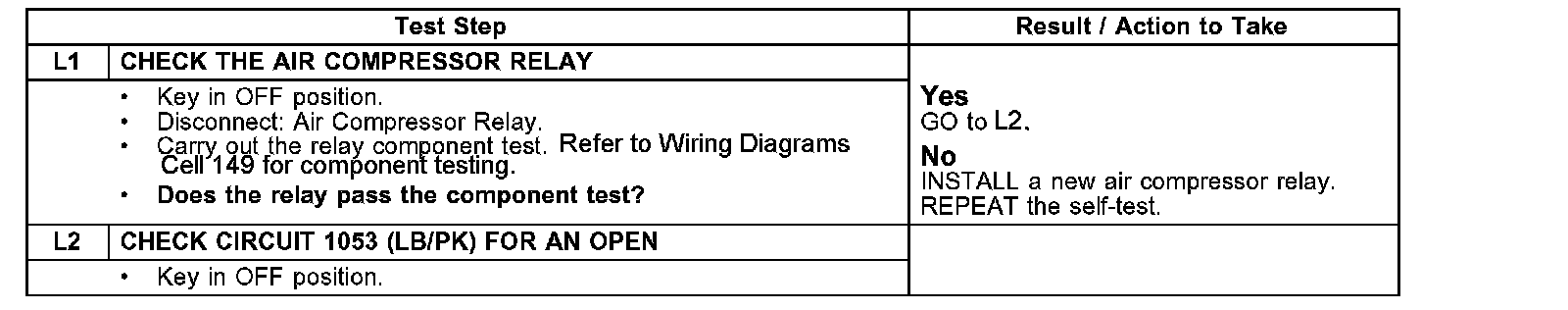

Test L1-L2:

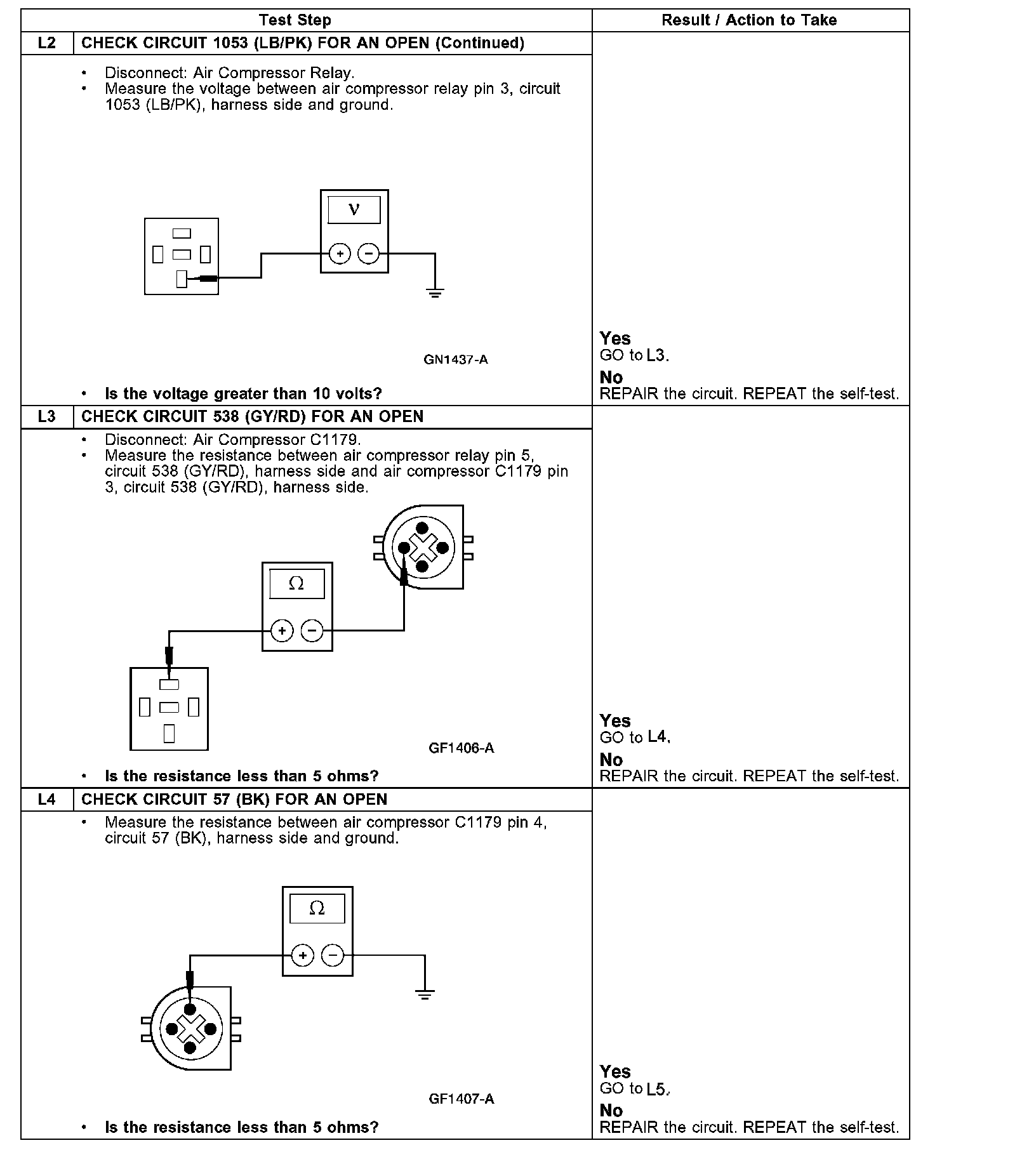

Test L2-L4:

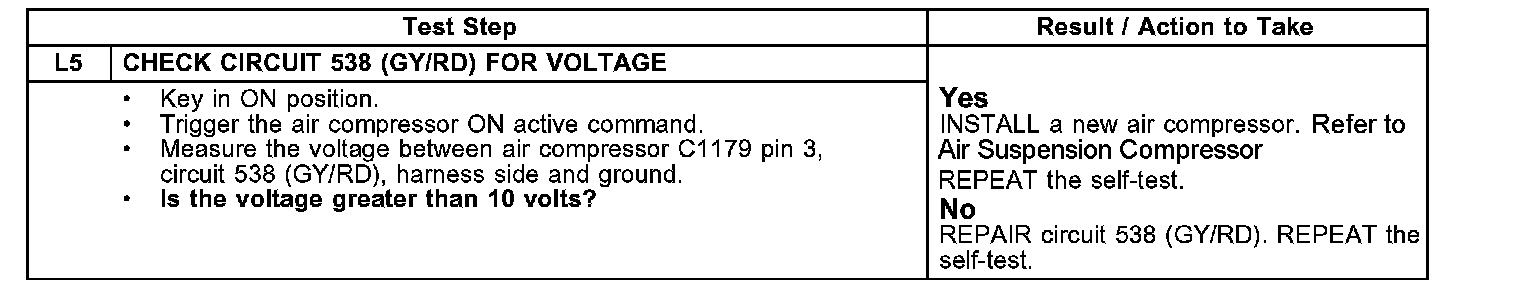

Test L5:
