Test A

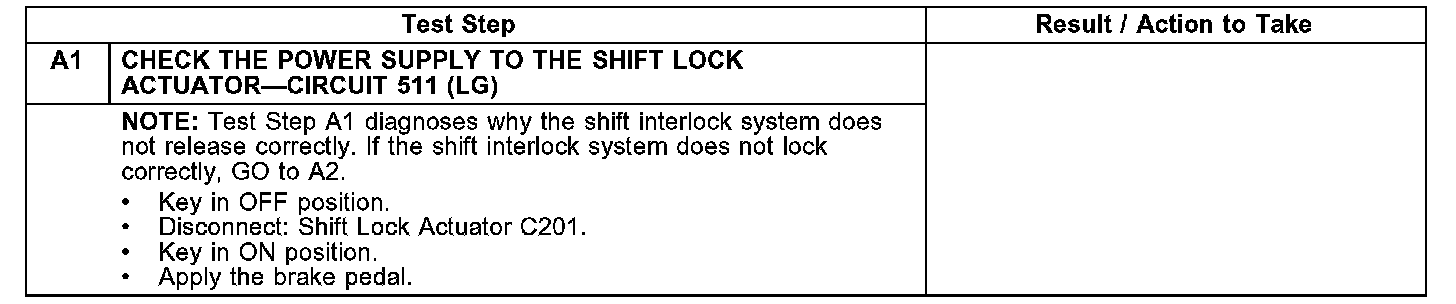

PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY- COLUMN SHIFT

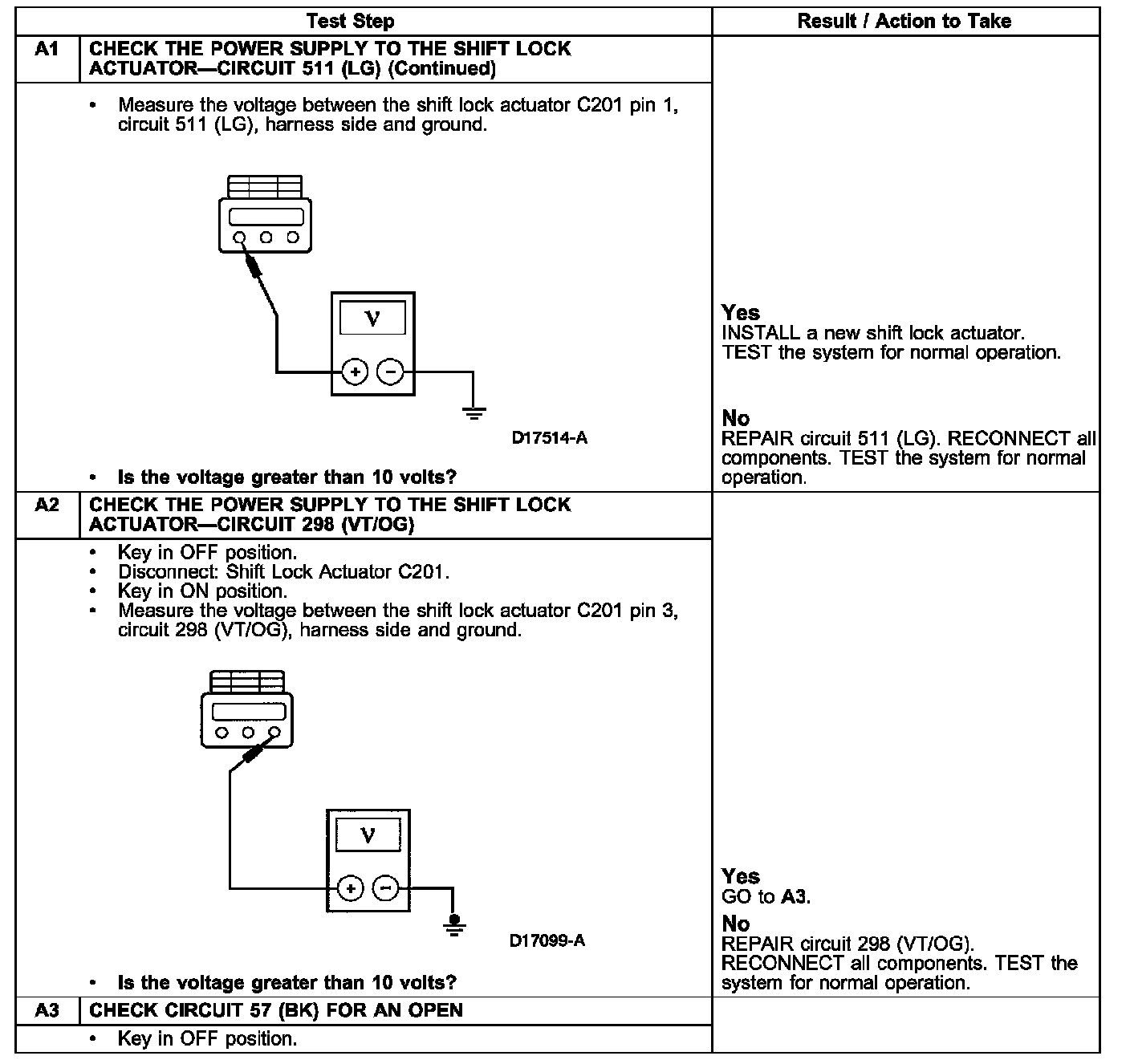

Test A1 (Continues):




Tests A1-A3 (continues):

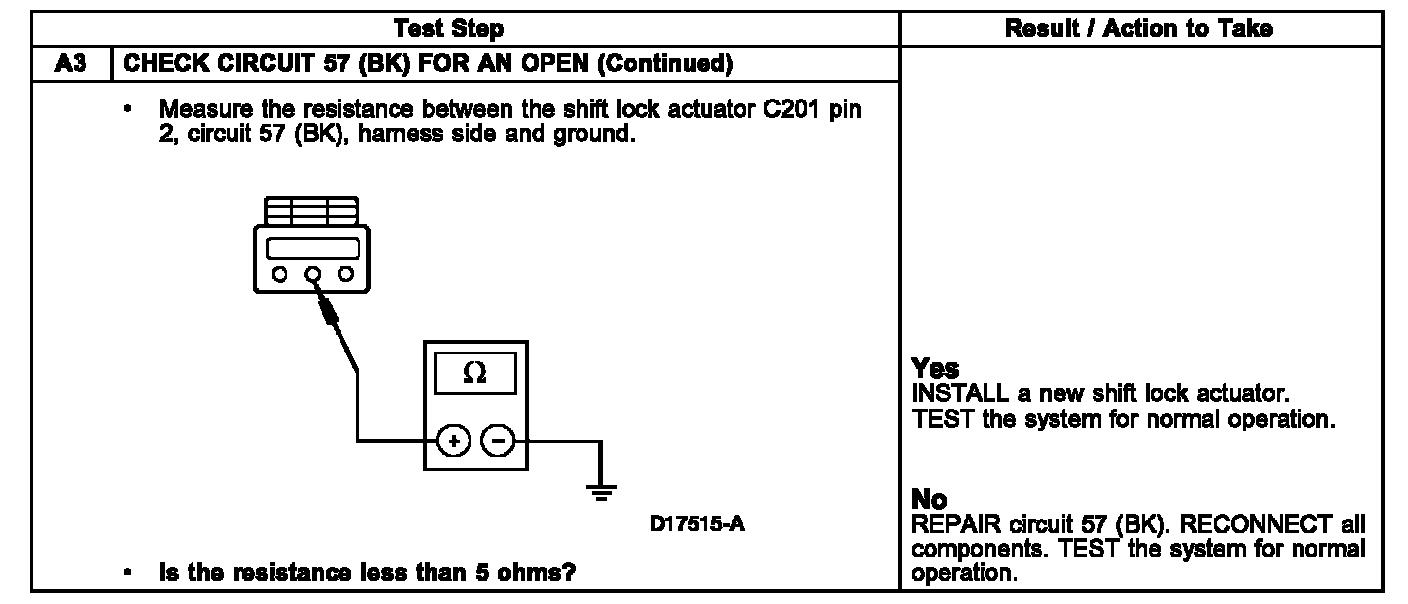

Test A3:
