Backing Plate: Service and Repair

Removal
1. Remove the brake shoes.
2. Remove the wheel Cylinder.

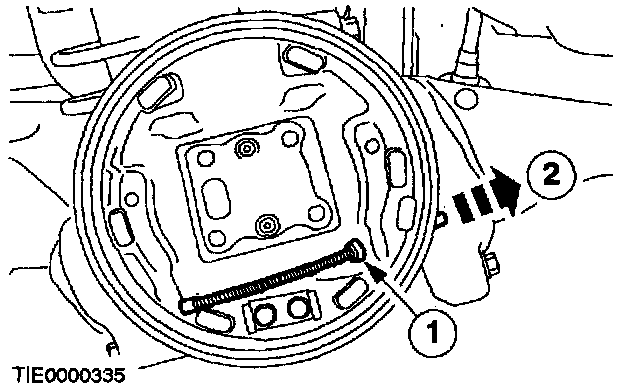

3. Detach the parking brake cable from the backing plate.
1 Depress the retaining clip.
2 Detach the cable.

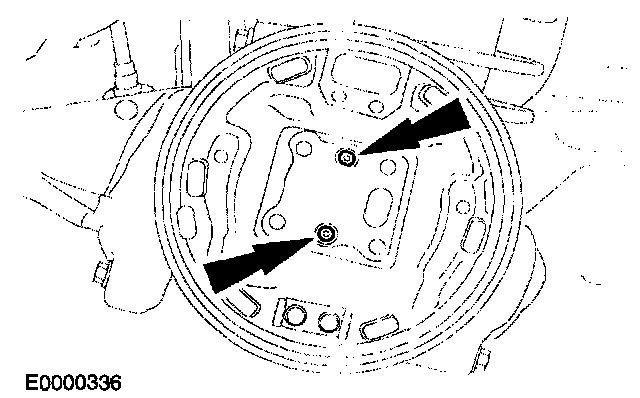

4. Remove the backing plate rivets.

Installation
1. To install, reverse the removal procedure.
