Home >> Ford >> 2004 >> Focus L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 23 >> 23-5 to 23-8

23-5 to 23-8

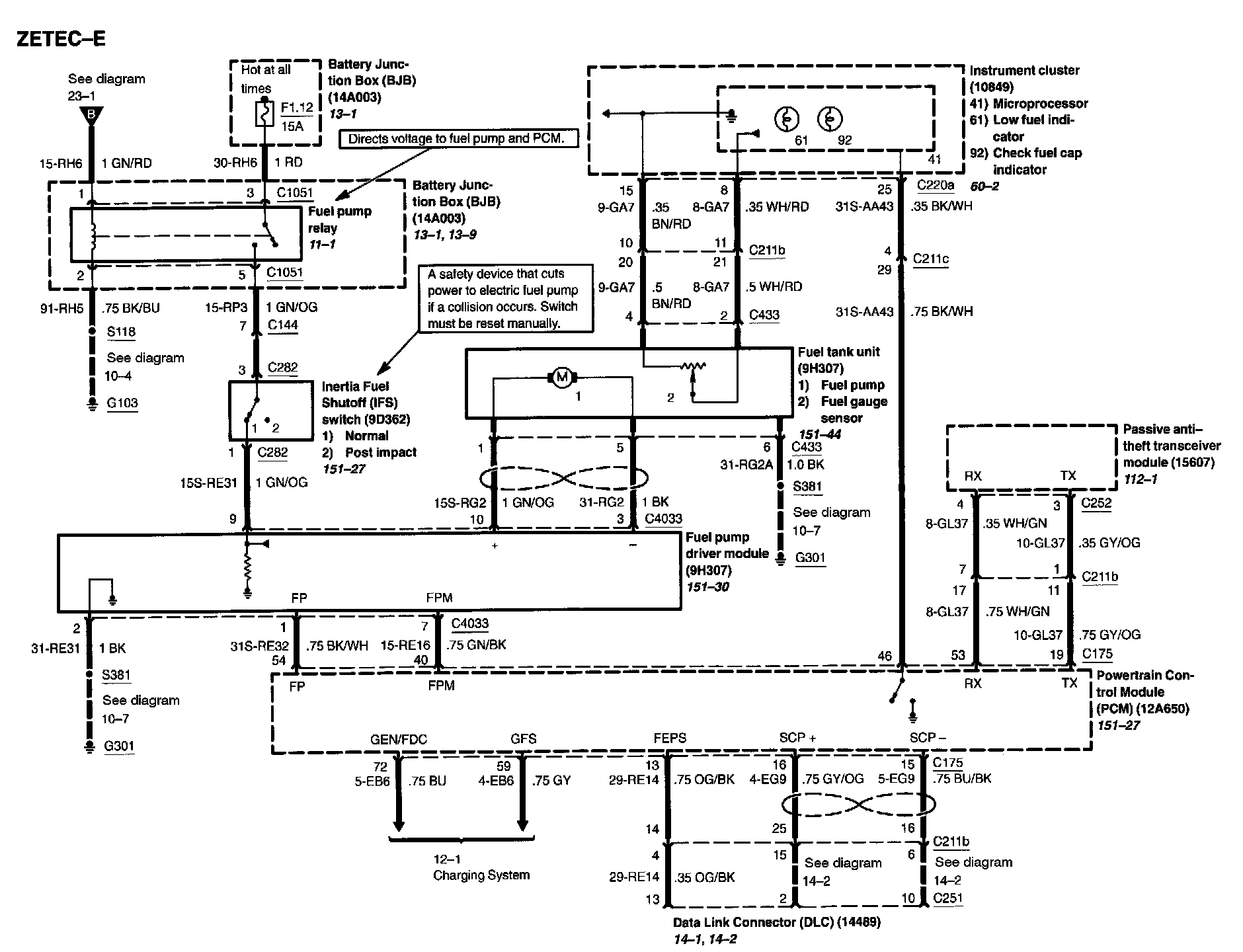

23-5:

23-6:

23-7:

23-8:
