Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal

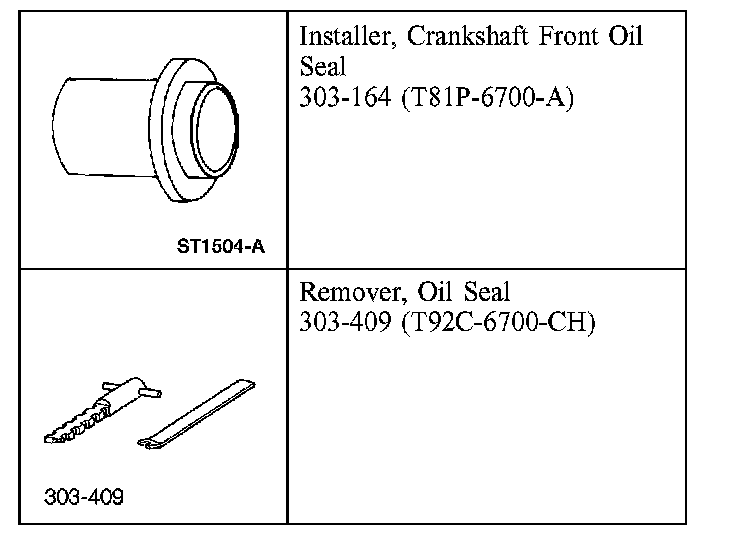

Special Tool(s)

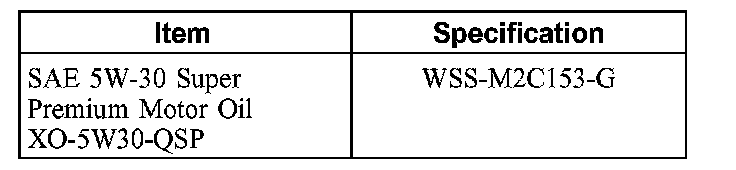

Material

Removal

1. Remove the timing belt.

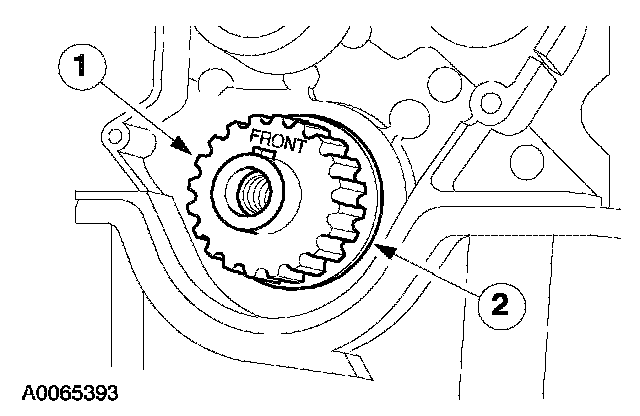

2. NOTE: FRONT marking and thrust washer installation position.

Detach the crankshaft timing belt.
1. Remove the crankshaft pulley hub.
2. Remove the timing belt thrust washer.

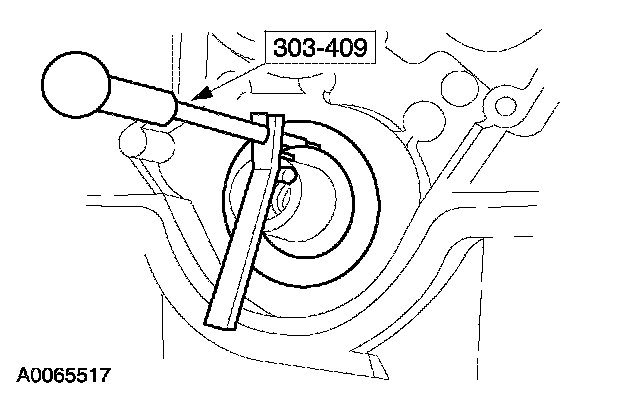

3. Using the special tool remove the crankshaft front oil seal.

Installation





1. NOTE: Use the crankshaft pulley hub bolt and washer.

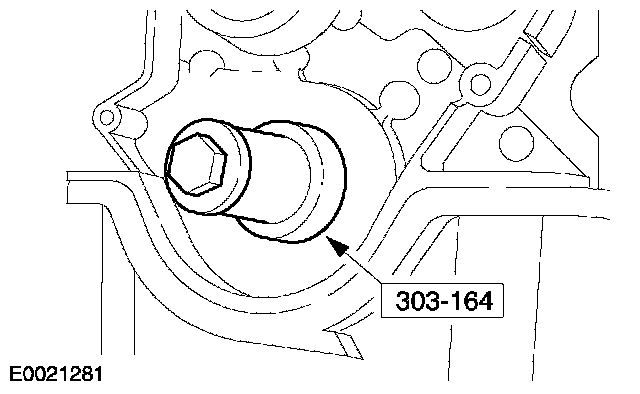

Using the special tool install the crankshaft front oil seal.
^ Coat the oil seal lip and crankshaft running surface with engine oil.

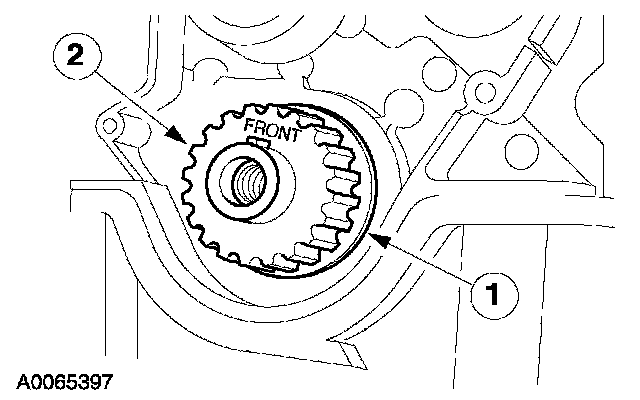

2. NOTE: FRONT marking and thrust washer installation position. Install the crankshaft pulley hub.
1. Install the timing belt thrust washer.
2. Install the crankshaft pulley hub.
3. Install the timing belt.
